Home / Products / Fiber Cables / Fiber Pigtails / 0.9mm Simplex Fiber Pigtail / SCAPC OS2 SM 9/125um Simplex OFNR Fiber Pigtail 0.9mm

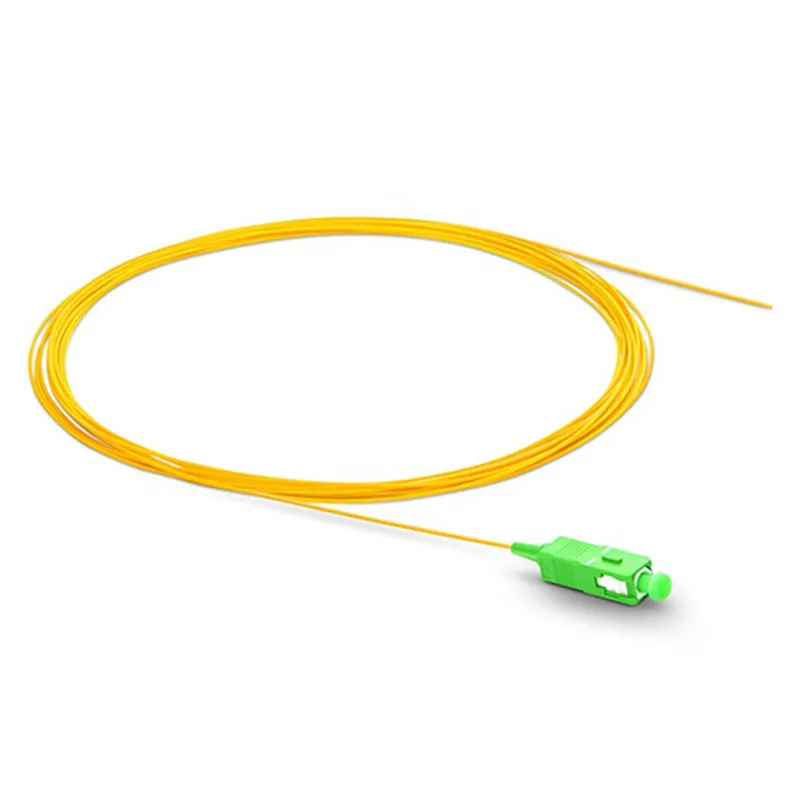

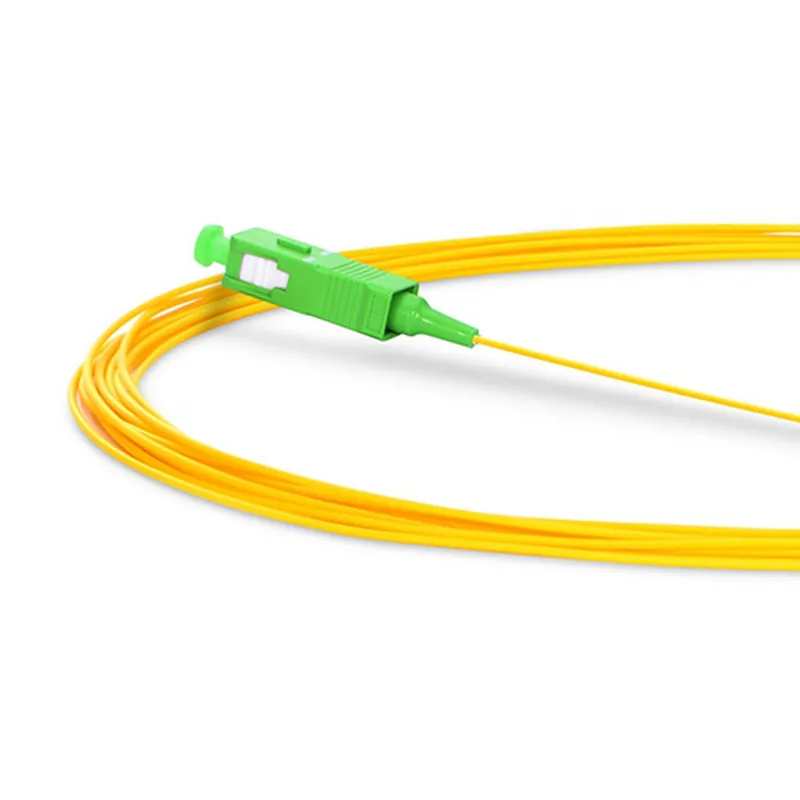

SCAPC OS2 SM 9/125um Simplex OFNR Fiber Pigtail 0.9mm

Part No.	FPT-SCA-OS2-SX-0.9
Product ID	010201001
MOQ	1 Piece
Lead Time	5-7 Working Days according to Quantity

Product Highlights

G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius

Precision Zirconia Ferrule Connectors Ensure Low Loss

Easy-strip 900µm Tight-buffered Coating

Color-Coded Cable Jacket for Easy Identification

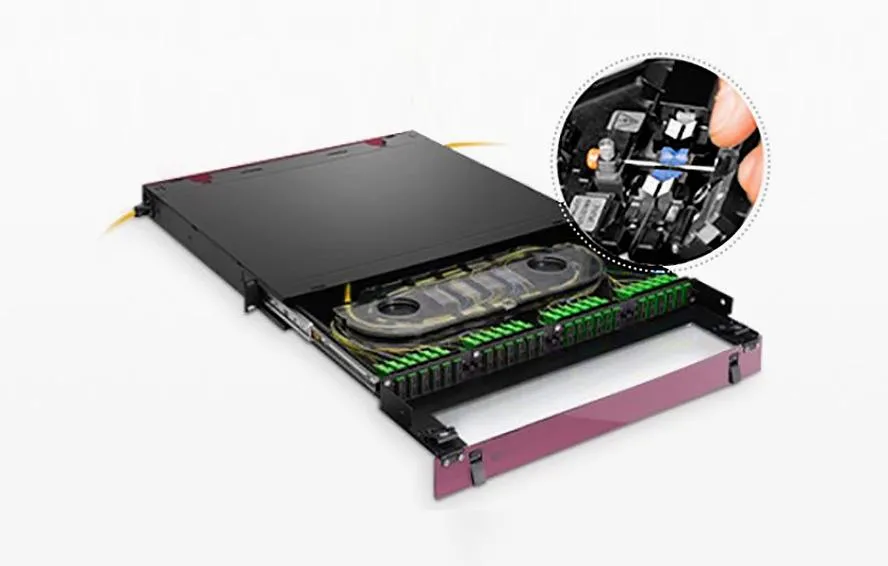

Support Both Fusion and Mechanical Splicing

Inquire Now +

Description

Fiber optic pigtails are designed to support fusion and mechanical splicing for fiber cabling systems. They provide a fast way to make communication devices in the field.

The OS2 bend-insensitive fiber optic pigtails have less attenuation when bent or twisted than traditional fiber optic pigtails, making installation and maintenance more efficient.

Specifications

Connector A	SC APC Simplex	Connector B	Unterminated
Fiber Count	1 Fiber	Fiber Grade	G.657A1
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Jacket Color	Yellow	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	0.9mm	Cable Jacket	PVC (Unrated)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)

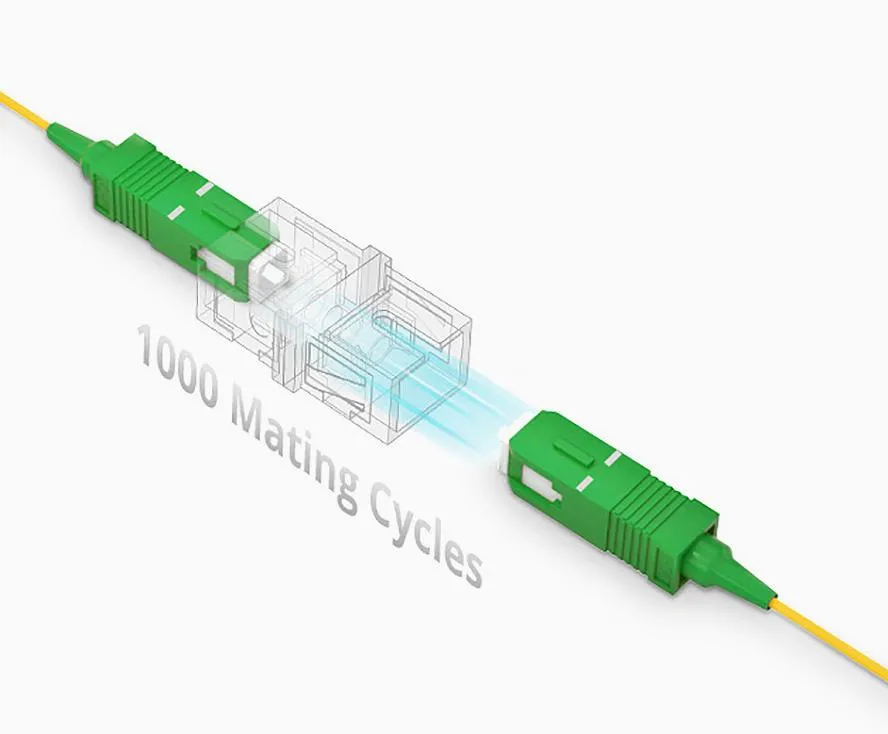

Connector Durability	1000 times	Standard	RoHS Compliant
Attenuation at 1310nm	0.36dB/km	Attenuation at 1550nm	0.22dB/km
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Vibration	≤0.2dB	Interchangeability	≤0.2dB
Operating Temperature	-40 to 75°C (-40 to 167℉)	Storage Temperature	-45 to 85°C (-49 to 185℉)

Features

Build a Stable and Robust Fiber Optic Network

High-quality tight-buffered fiber optic pigtail protects the fiber optic core, and is easy to strip for splicing.

Structural diagram

Cross-section diagram

High-precision Components Guarantee Reliable Transmission

Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.

The G.657.A1 fiber allows tighter cable bends for routing, and ensures low optical loss and stable transmission.

The high-precision zirconia ceramic ferrule has a long life, and ensures strong stability and interchangeability.

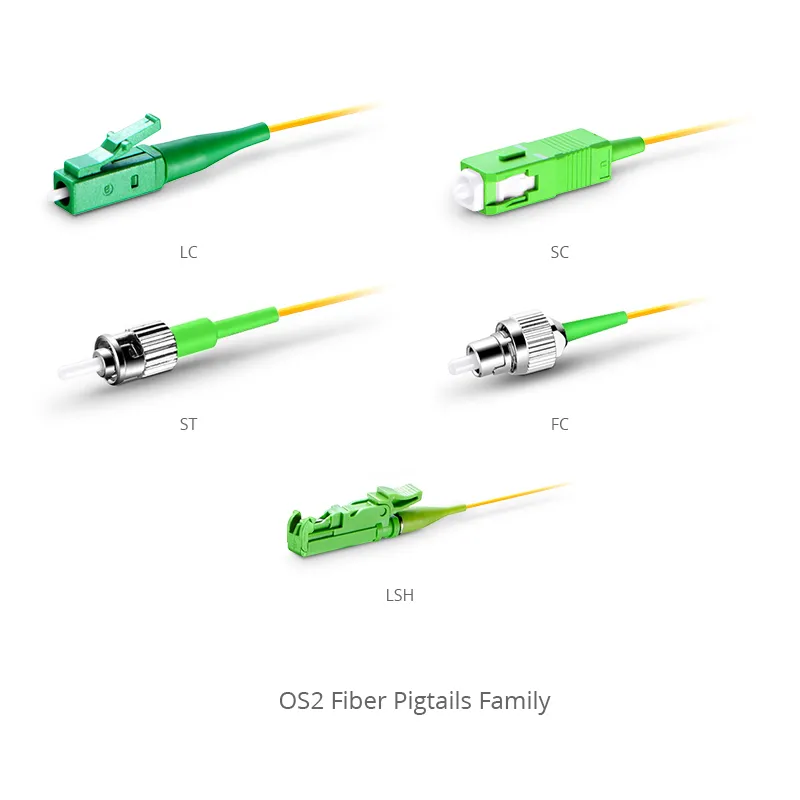

Color-Coded Cable Jacket for Easy Identification

A fiber optic pigtail's jacket color is typically defined by the fiber type, and can differ based on mode and performance level.

Yellow

Aqua

A Variety of Applications of Different Equipments

Optical fiber pigtails can be used in optical fiber communication systems optical fiber data transmission, optical fiber CATV, optical test equipment, fiber optic sensors, etc.
