| Part No. | FPT-LCU-OS2-12F-B-0.9 |
| Product ID | 010203004 |
| MOQ | 1 Piece |
| Lead Time | 5-7 Working Days according to Quantity |
Product Highlights
G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
Color-coded for Easy Matching of 0.9mm Fiber to Be Spliced
Easy-strip 900µm Tight-buffered Coating
Precision Zirconia Ferrule Connectors Ensure Low Loss
Support Both Fusion and Mechanical Splicing
See More
Description
12 fibers optic pigtails are ideal for fusion splicing the required fiber connectivity for structured cabling systems including Data Centers, Broadband CATV, PON (Passive Optical Network), WDM or DWDM multiplexing, FTTH and voice services in ATM and SONET metropolitan and access networks.
The OS2 bend insensitive fiber optic pigtails have less attenuation when bent or twisted compared with traditional fiber optic pigtails and this will make the installation and maintenance more efficient.
Specifications
| Connector A | LC UPC Simplex | Connector B | Unterminated |
| Fiber Count | 12 Fibers | Fiber Grade | G.657A1 |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Jacket Color | Yellow | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 0.9mm | Cable Jacket | PVC (Unrated) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength (Long/Short Term) | 200/660N |
| Attenuation at 1310nm | 0.36dB/km | Attenuation at 1550nm | 0.22dB/km |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Vibration | ≤0.2dB | Interchangeability | ≤0.2dB |
| Operating Temperature | -20 to 75°C (-4 to 158℉) | Storage Temperature | -40 to 70°C (-40 to 158℉) |
Features
Build a Stable and Robust Fiber Optic Network
Structural diagram
Cross-section diagram
High-precision Components Guarantee Reliable Transmission
Color-Coded Cable Jacket for Easy Identification
Yellow
Aqua
A Variety of Applications of Different Equipments
Fiber Terminal Box
FHD® Fiber Enclosure
How to Strip Fiber Optic Pigtail with Tri-Hole Fiber Stripper
Strip the 900μm buffer coating (With the second hole)
Down to the 250μm coating
Strip the 250μm coating (With the smallest hole)
Get the 125μm glass fiber
Two Important Methods for Fiber Optic Pigtail Splicing
Mechanical Splicing

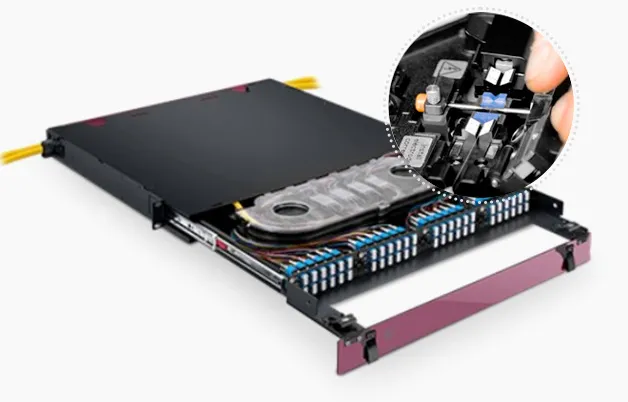

Fusion Splicing
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
