| Part No. | FOK-6F-R-TL1.2M |
| Product ID | 020501001 |
| MOQ | 1 Piece |
| Lead Time | 5-7 Working Days according to Quantity |
Product Highlights
Build Up 250μm Fiber to 900μm Tight-buffered Coating Size for Connector Termination
Color-coded Kit Matches the Fiber Color Scheme for Easy Identification

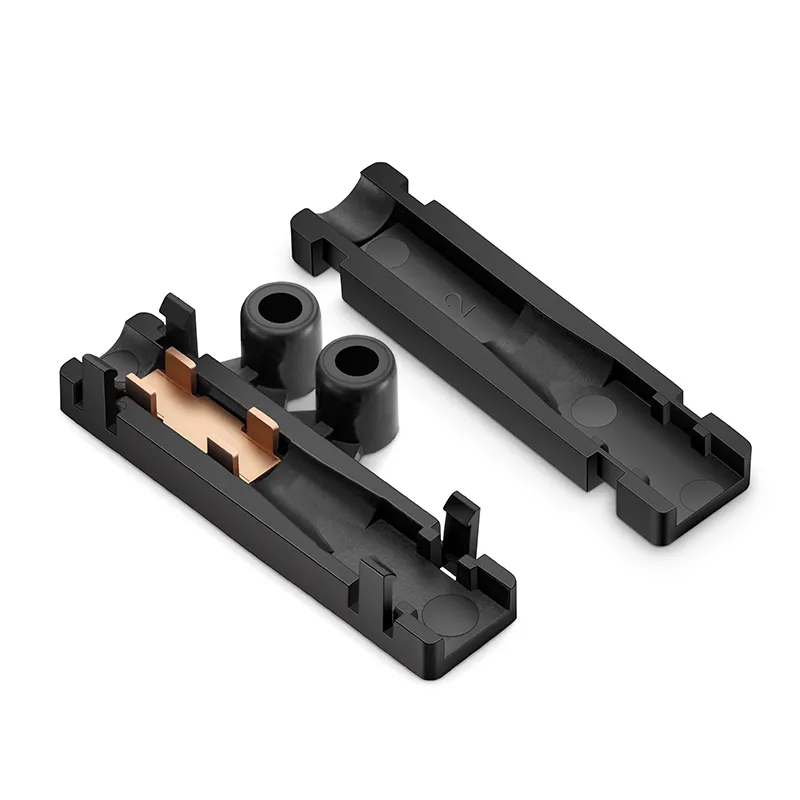

Snap-together Top Cover and Base for Easy Disassemble

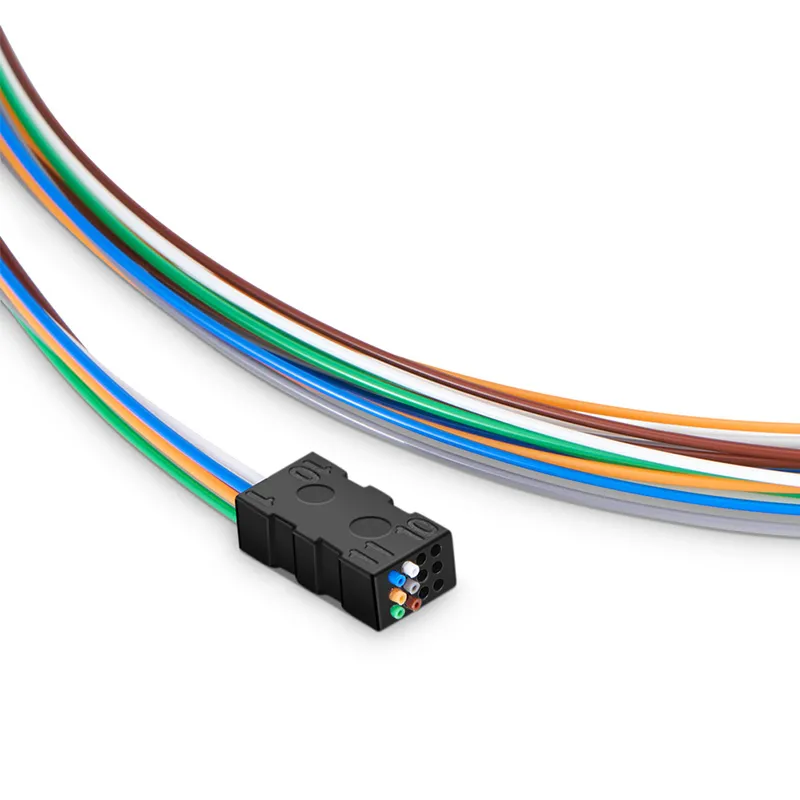

Fiber Assembly Unit Protects Fiber Transition for Better Fiber Management
Snap-together Furcation Eliminates Epoxy for Indoor Kits
See More
Description

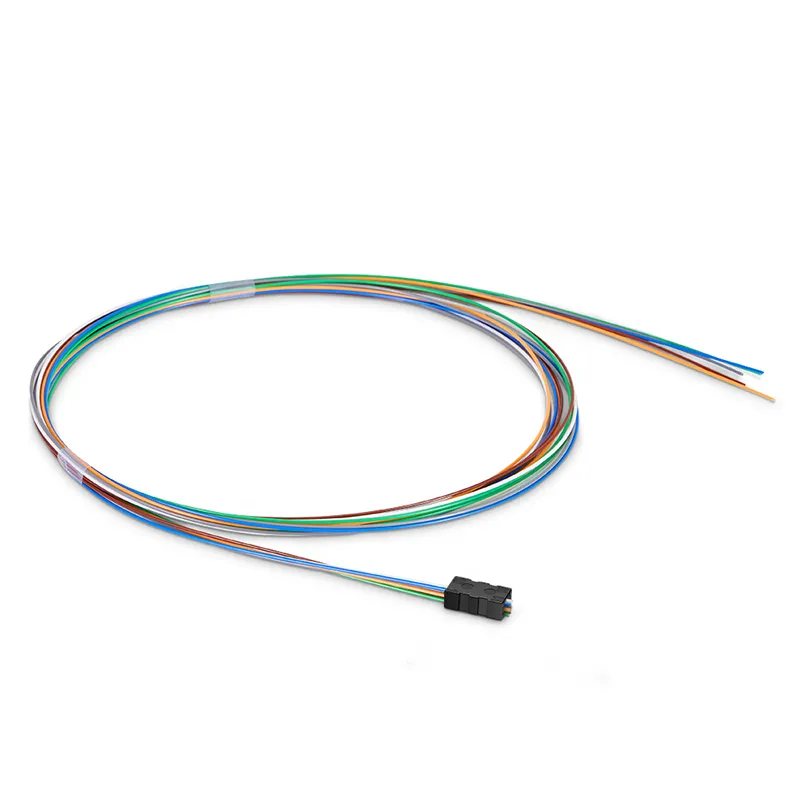

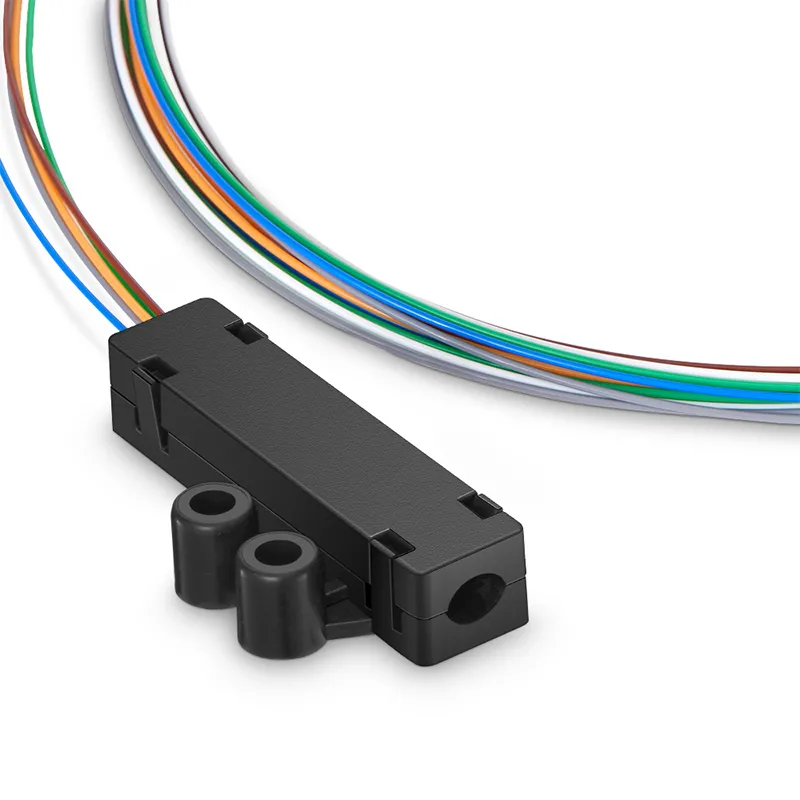

The fiber optical fan-out kit is a tool used for fiber termination. The 6 fibers buffer tube fan-out kit can separate 250μm fibers and route them into color-coded 900μm tight-buffered tubes for connector termination, which can protect bare fiber and no proprietary tools are required. The kit features a 900 μm color-coded fan-out assembly to match the fiber color scheme. It provides the most compact, easy-to-install ultimate fan-out solution for those users who want to field-install connectors on 250μm coated fibers. Additionally, for optimal performance and stability, it is recommended to use round cables in an indoor environment for installing this fan-out kit.
Specifications
| Product Type | Fan-out Kit | Fan-out Type | Buffer Tube |
| Tubing | Hytrel Furcation Tubing | Furcation Material | PC |

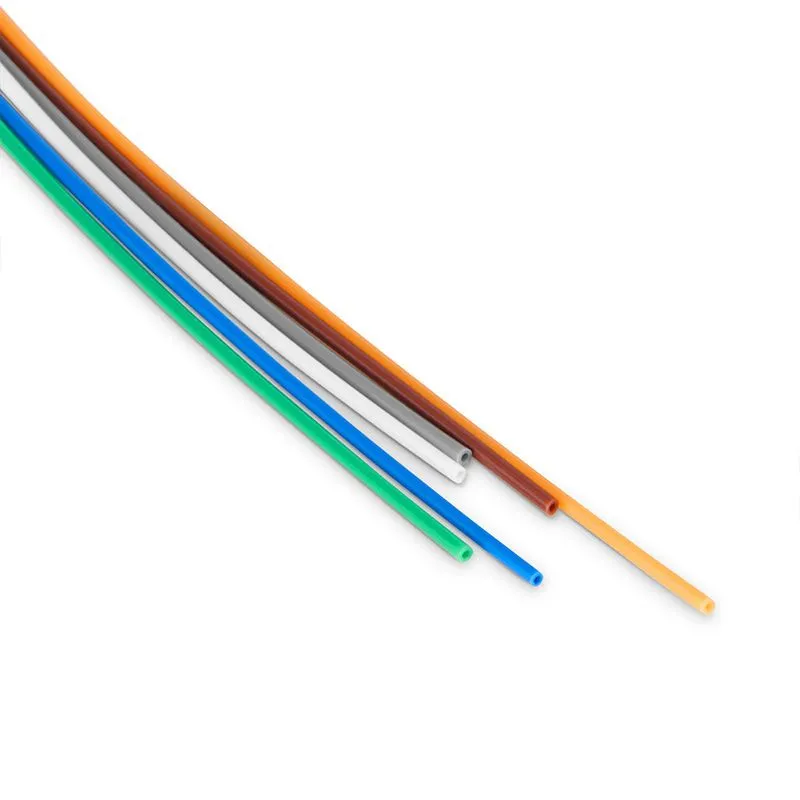

| Tubing Outer Diameter | 0.9mm | Tubing Length | 1.2m |
| Fiber Count | 6/12 | Operating Temperature | -25 to 70°C (-13 to 158°F) |
| Environment | Indoor | Fan-out Tubing Color | Blue/Orange/Green/Brown/Slate/White |
| Cable Type | Round Cables | RoHS | Support |
Features
Designed for Fiber Termination and Management
Two Fan-out Kit Types for Different Cables
For round cables
For flat ribbon cables
Installing An Indoor Buffer Tube Fan-out Kit
Crimp the pre-stripped cable with the base
Route the fibers into tight-buffer tubes according to the color
Install the head of the fan-out assembly to the base and make sure the fibers are not twisted

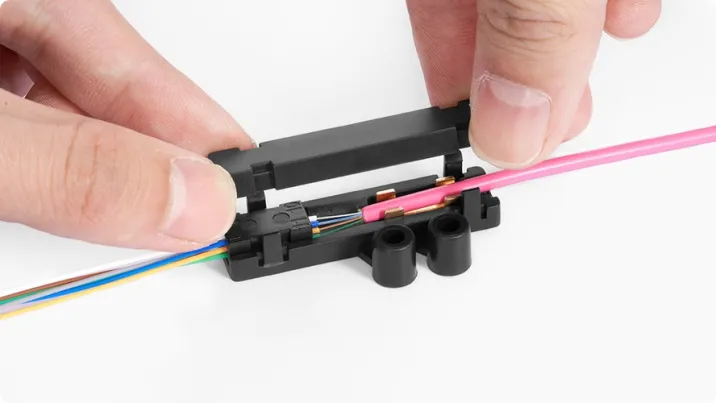

Fasten the base and top cover, and finish the installation
