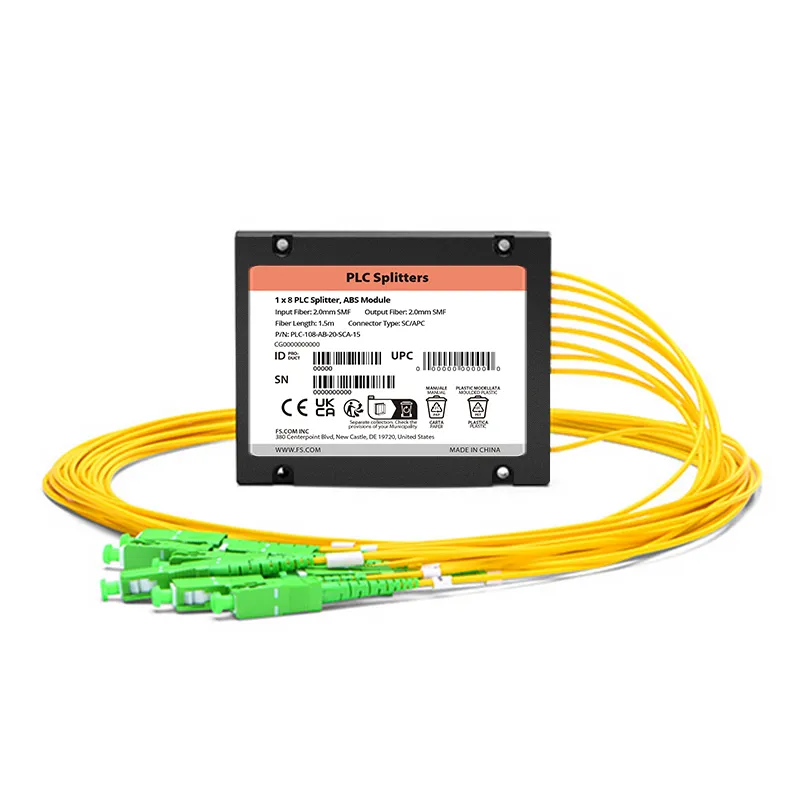

| Part No. | FS-PLC-SCA-1X8--ABSM |
| Product ID | 040403003 |
| MOQ | 1 Piece |
| Lead Time | 7-10 Working Days according to Quantity |
Product Highlights
Split Signals across 1260 to 1650nm Evenly into 8 Output Ports
≤10.5dB Low Insertion Loss and ≤0.3dB Low Polarization Dependent Loss
Compact Housing Fits Racks, Wall-mounted Boxes, Optical Distribution Boxes, etc.
G.657A1 Bend Insensitive Fibers for Low Bending Loss
Commonly Found in POL, Datacom, LAN, CATV, LCP, FTTx and More Applications
Distribution Type, Split Ratio, and Connector Options can be Customized
See More
Description
Planar Lightwave Circuit (PLC) Splitter is a type of passive optical component using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations, allowing for efficient communication. It is commonly found in PON(Passive Optical Networks), Datacom, LAN(Local Area Networks), CATV(Cable TV), LCP(Local Convergence Points), FTTx, and more applications, suitable for places with high-quality network requirements.
FUTURE CABLING provides a whole series of 1xN and 2xN PLC splitter products available in a wide range of package types, connectors, and split ratios, tailored for specific applications. With its compact structure, stable optical characteristics, robust peformance and reliable certification, FS PLC splitter solutions strengthen your network infrastructure and facilitate smooth communication across multiple fibers, improving both efficiency and reliability.
Specifications
| Package Style | ABS Module | Polarization Dependent Loss | ≤ 0.3dB |
| Distribution Type | 1x 8 | Insertion Loss with Connectors | ≤ 10.5dB |
| Technology Type | PLC (Planar lightwave circuit) | Return Loss | ≤ 0.8dB |
| Connector Type (Input&Output) | SC/APC | Uniformity | Aqua |
| Fiber Type | G.657A1 | Directivity | 55dB |
| Fiber Mode | Singlemode | Temperature Dependent Loss | ≤ 0.5dB |
| Split Ratio | Symmetrical | Wavelength Dependent Loss | ≤ 0.3dB |
| Input/Output Fiber Length | 1.5m | Input/Output Fiber Diameter | 2.0mm |
| Relative Humidity | 45~75% | Operating Bandwidth | 1260~1650nm |
| Maximum Input Power | 300mW | Reliability Compliance | GR-1221/1209 |
| Dimensions (HxWxD) | 0.39"x3.94"x3.15" (10x100x80mm) | Temperature | Operating -40 to 85°C (-40 to 185°F) Storage -40 to 85°C (-40 to 185°F) |
Features

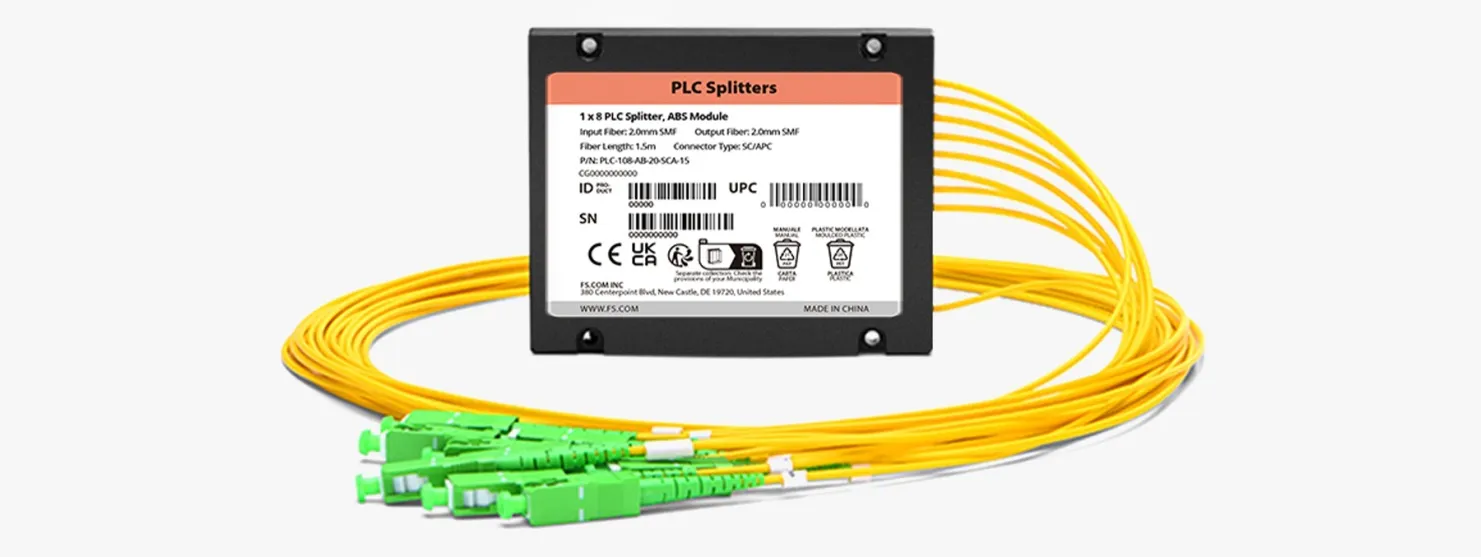

Premium Fiber Splitter Guarantees Stable Transmission
Bend Insensitive Fiber
Nano-zirconia Ceramic Ferrules
SC/APC Connectors

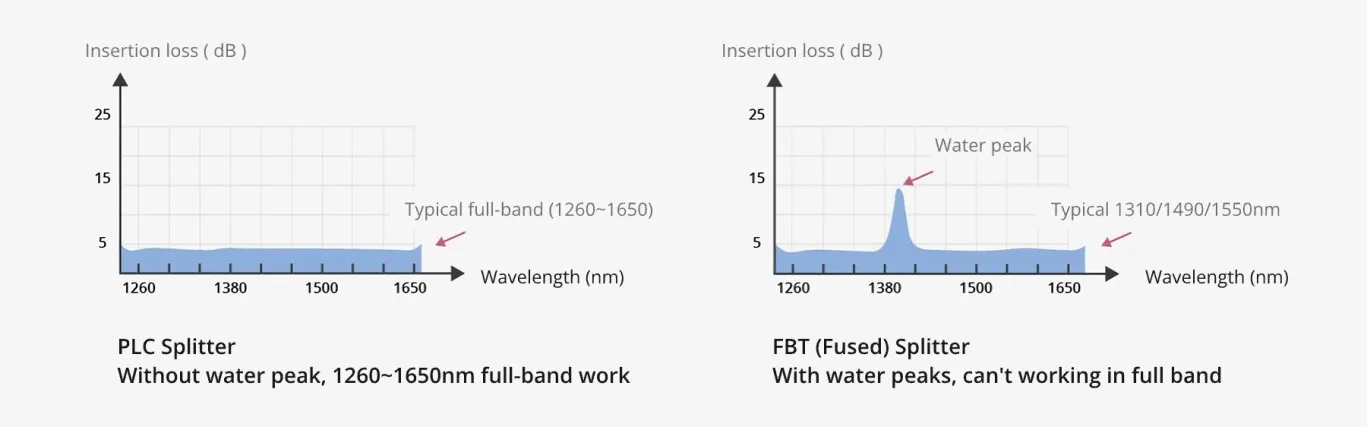

Full-band Wavelength Enhanced Compatibility and Flexibility
Uniform Distribution of Optical Signal
Designed for Quicker Deployment of PON in Various Applications
FTTx
LAN
CATV
Data Center
