| Part No. | AOC-400G QSFP-DD-10M |
| Product ID | 010802005 |
| MOQ | 1 Piece |
| Lead Time | 7-10 Working Days according to Quantity |
Product Highlights
Built-in Inphi Chip, COB Packaging
Low Power Consumption <8W Per End
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Increased Reliability-VCSEL, No MPO Connectors, Low BER
Support Real-time Configuration
8x50G PAM4 Retimed 400GAUI-58 Electrical Interface
Thin and Light Weight Fiber with High Air Flow for Flexible Routing
OFNP-Rated, Hot Pluggable QSFP-DD MSA Compliant
See More

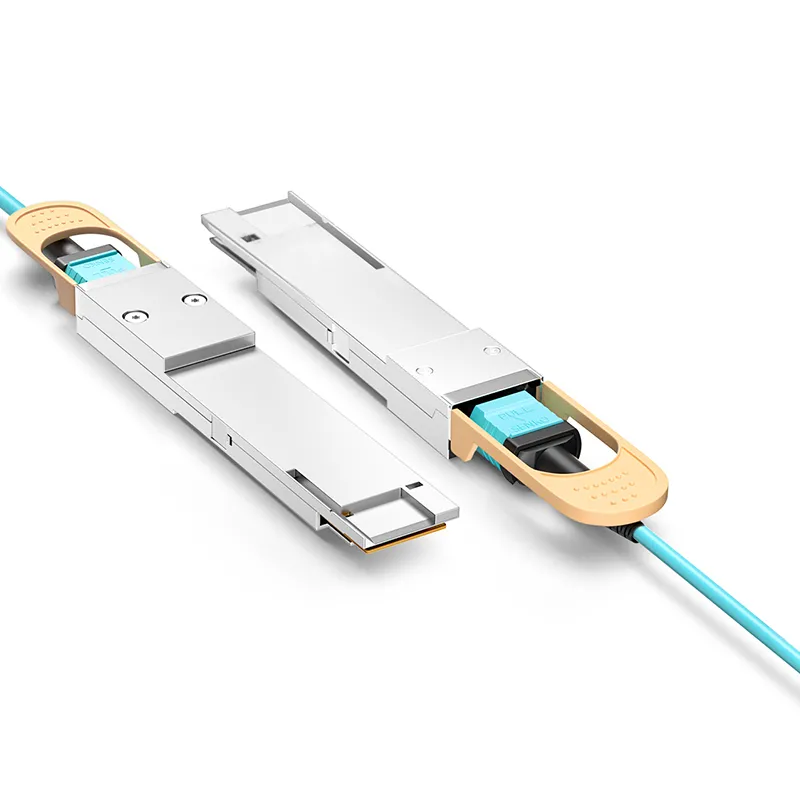

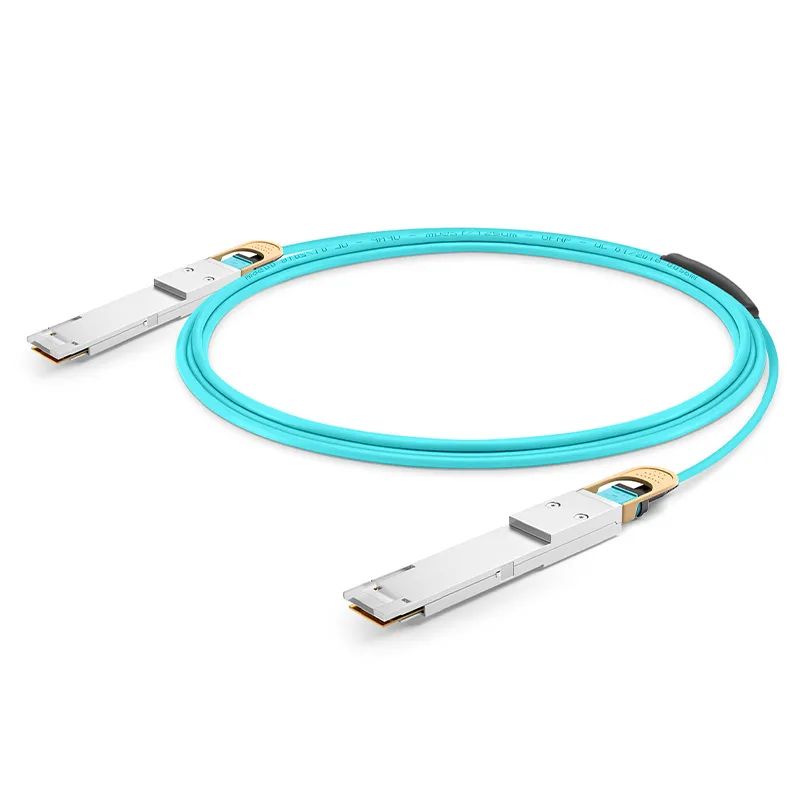

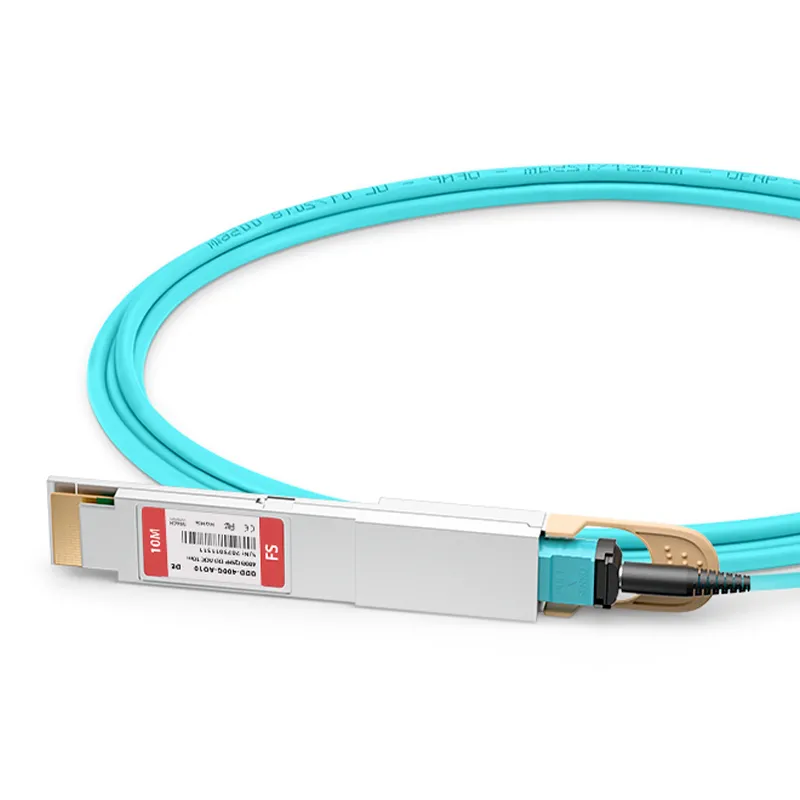

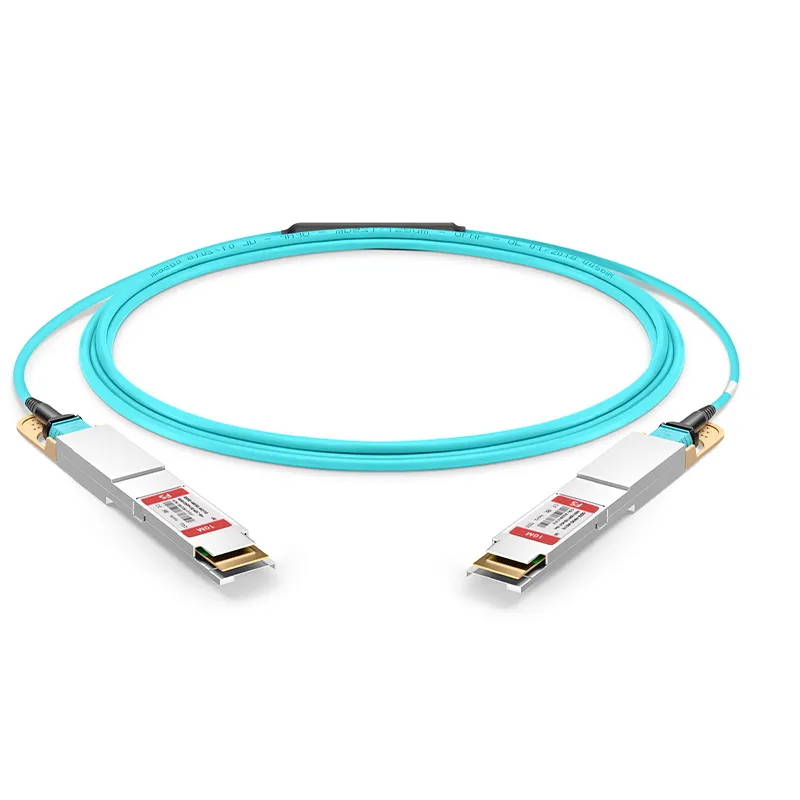

Description

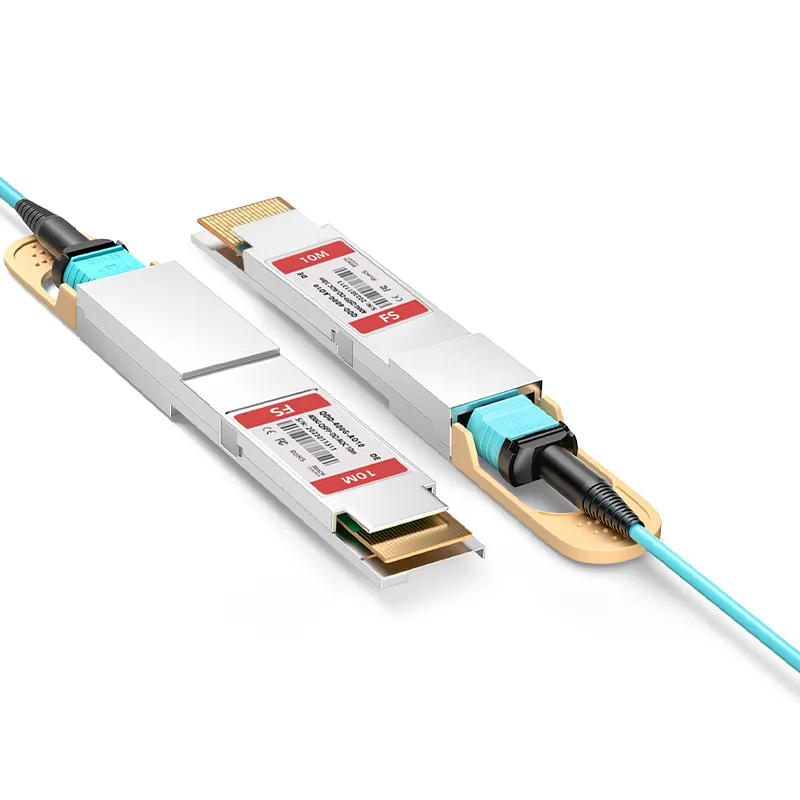

The 400G QSFP-DD active optical cables are designed for use in 400 Gigabit Ethernet links over OM4 multimode fibers, and contain eight multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 53Gb/s. This active optical cable is compliant with IEEE 802.3cd, OIF-CEI-04.0, QSFP-DD MSA, and QSFP-DD-CMIS-rev4p0. Thin and lightweight AOC cables simplify cable management, enabling an efficient system airflow, which is critical in high-density racks. It is used extensively in cloud and supercomputers due to its low cost, high-value proposition, and increased reliability..
Specifications
| Dell Compatible | AOC-Q56DD-400G-10M | Vendor Name | FUTURE CABLING |
| Form Factor | QSFP-DD to QSFP-DD | Max Data Rate | 400Gbps |
| Cable Length | 10m (33ft) | Cable Type | OM4 |
| Wavelength | 850nm | Minimum Bend Radius | 30mm |
| Transmitter Type | VSCEL | Receiver Type | 850nm PIN |
| Power Consumption | ≤8W | Jacket Material | OFNP |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Modulation Format | PAM4 |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3cd, OIF-CEI-04.0, QSFP-DD MSA, QSFP-DD-CMIS-rev4p0 | Inbuilt FEC | No |
| Application | 8x 50G-PAM4 | Warranty | 5 Years |
Features

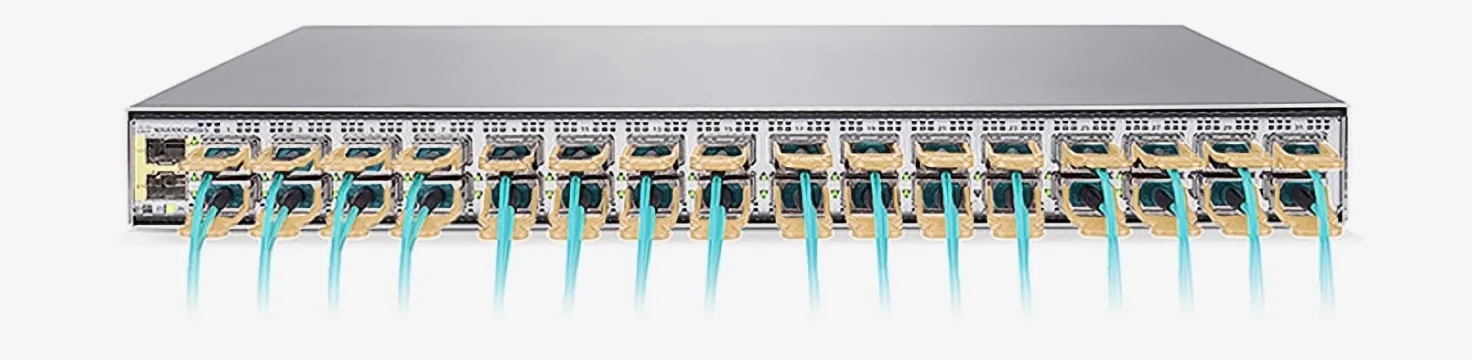

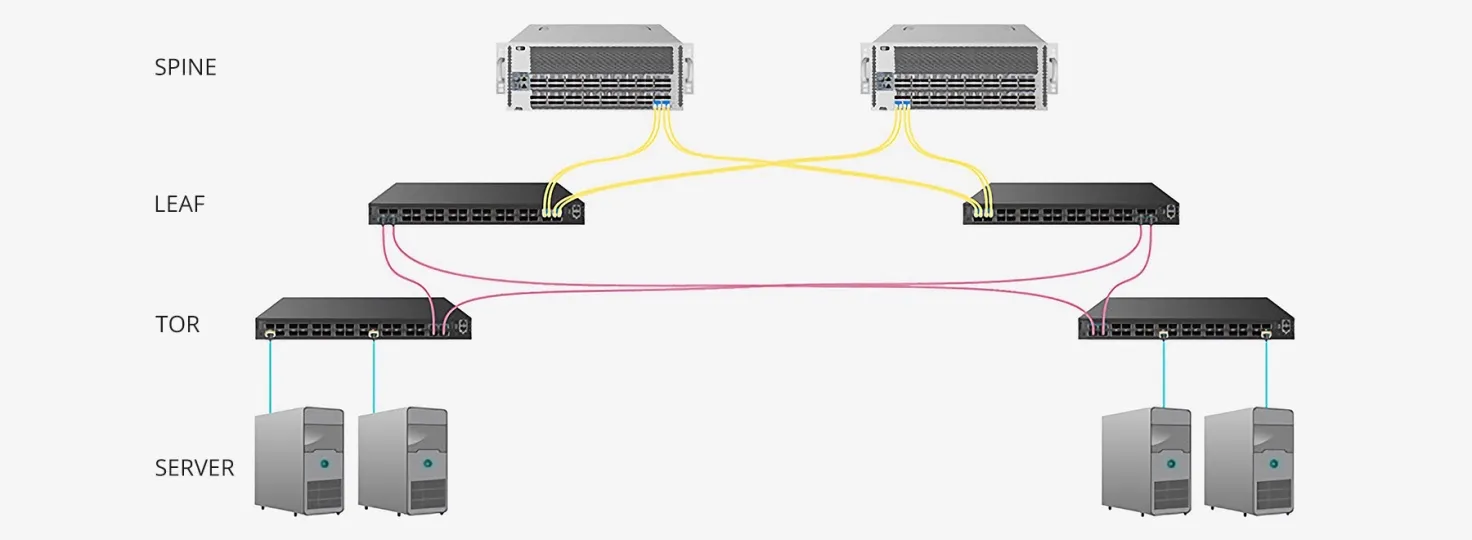

Build a Strong 400G Foundation in Data Centers
Fully Upgraded to 400G Speed
Massive Information Interaction
Economical and Quality-stable
Low Power Consumption for Energy-saving
<8W Per End

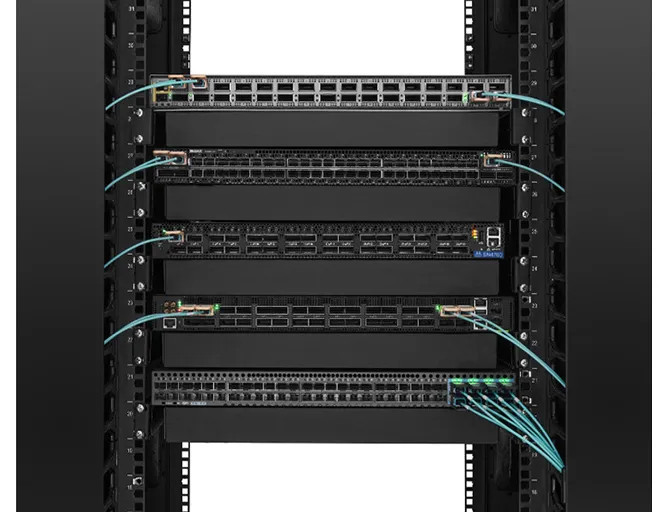

Lighter in Weight
Lighter in Weight
Lighter in Weight Compared with DAC

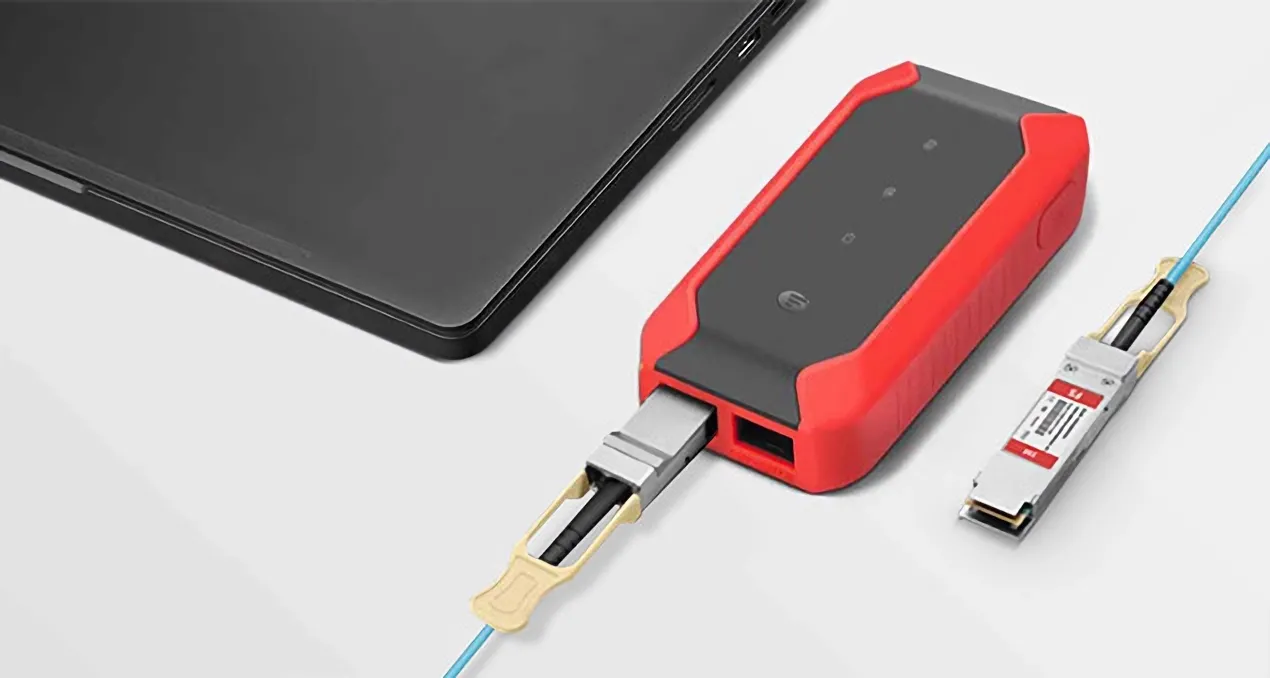

Support Real-time Configuration with FUTURE CABLING Box
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
