| Part No. | CPC-CAT5E-FUTP-BL-3FT |
| Product ID | 090101001 |
| MOQ | 1 Piece |
| Lead Time | 7-10 Working Days according to Quantity |
Product Highlights
Exceed ANSI/TIA-568.2-D Category 5 and ISO 11801 Class E Standards
Up to 350MHz with 1G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
F/UTP Cable Minimizes EMI and RFI Interference.
Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes
Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts

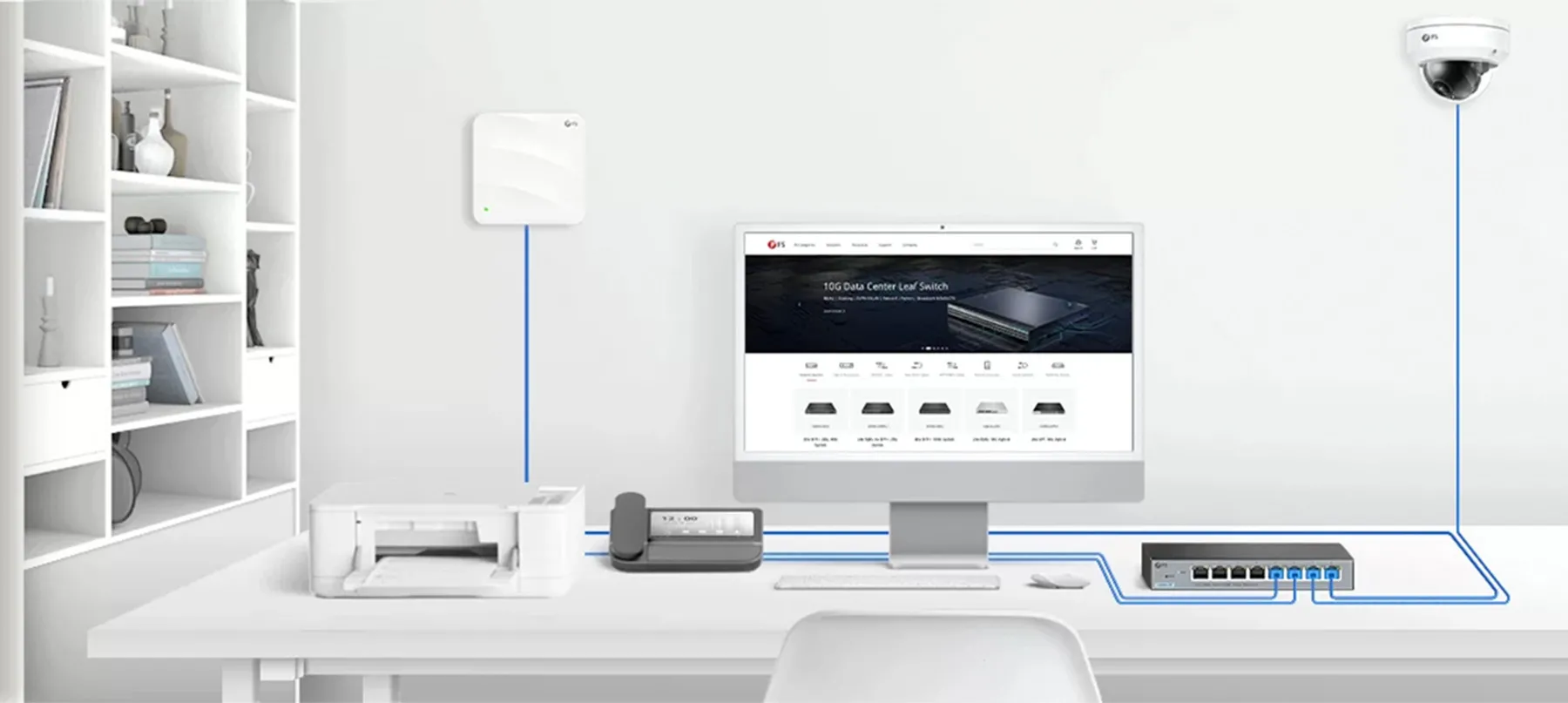

Use in Voice/Video/VoIP Systems in Local Area Network
Support Current and Future Category 5e/5 Applications
See More
Description
Cat5e network patch cable is the cost-effective solution for indoor Gigabit Ethernet data center applications, supporting up to 1000Mb/s and 350MHz within 100 meters of cable. And it is fully backward compatible with all the previous categories.
The FS cat5e patch cables conductor apply Pure Bare Copper with high electrical conductivity and low signal transmission attenuation. The shielded patch cord provides superior alien crosstalk (AXT) suppression and protects critical data from electromagnetic and radio frequency interference (EMI/RFI). The sheath material is new environmentally friendly material PVC CM, which is durable, flame-retardant, resistant to bending. Stranded copper patch cable can be used with a longer flex-life. The cable supports PoE to save you the expense and effort of powering PoE devices individually. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles.
Specifications
| Cable Type | Cat5e Snagless | Shielding Type | Shielded (F/UTP) |
| Cable Jacket | PVC CM (Round) | Length | 3ft (0.9m) (Including Plugs) |
| Conductor Material | Oxygen-free Copper | Conductor Type | Stranded |
| Data Rate Support | 1000Base-T | Maximum (Tested) Frequency | 350MHz |
| Gauge (AWG) | 26 (7/0.16mm) | Cable External Diameter (mm) | 5.3 ± 0.4 |
| Max Transmission Distance | 100m | Twisted Pairs | 4 Pairs |
| Wire Scheme | T568B, Straight | Standard | ISO/IEC 11801, ANSI/TIA-568.2-D |
| Operating Temperature | -20 to +75°C (-4 to 167°F) | Installation Temperature | -10 to +50°C (14 to 122°F) |
Features
350MHz Stable Transmission
50μ〞Gold-plated Connectors
Pure Copper Conductors
Stranded 4 Twisted Pairs
Triple Protection of Patch Cables

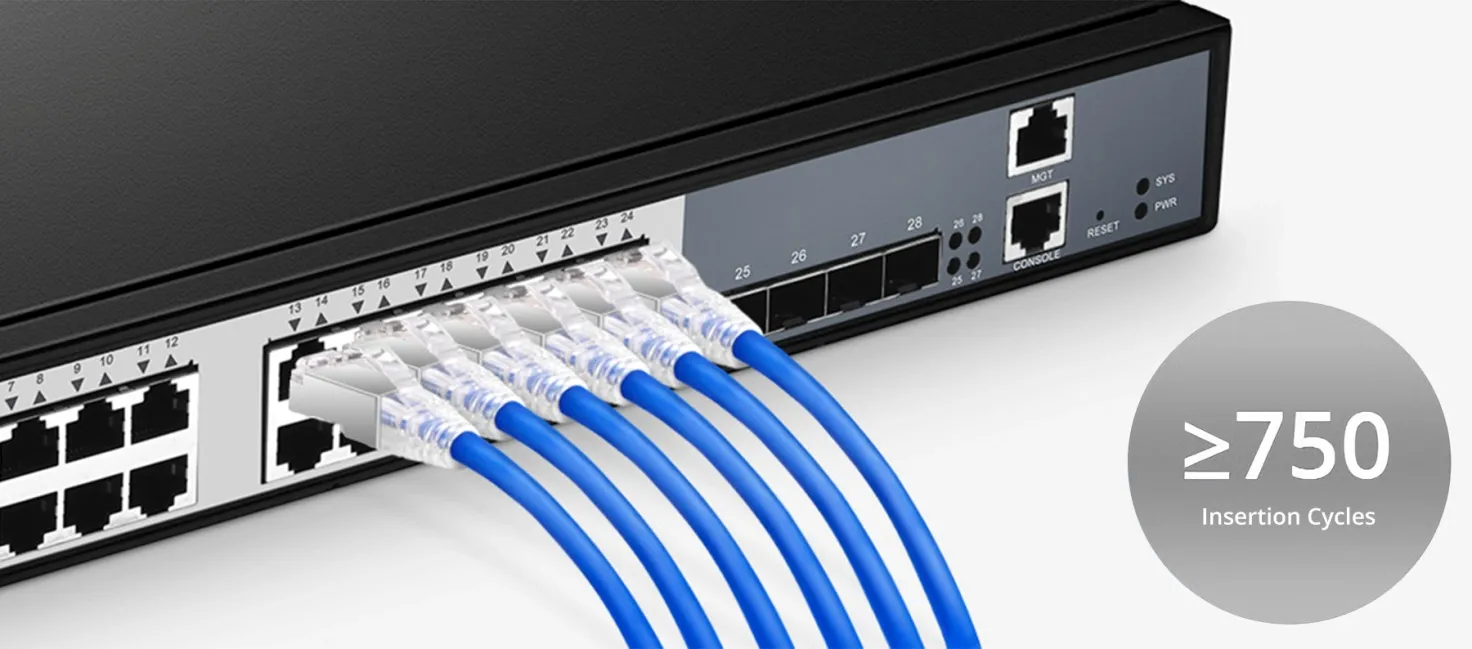

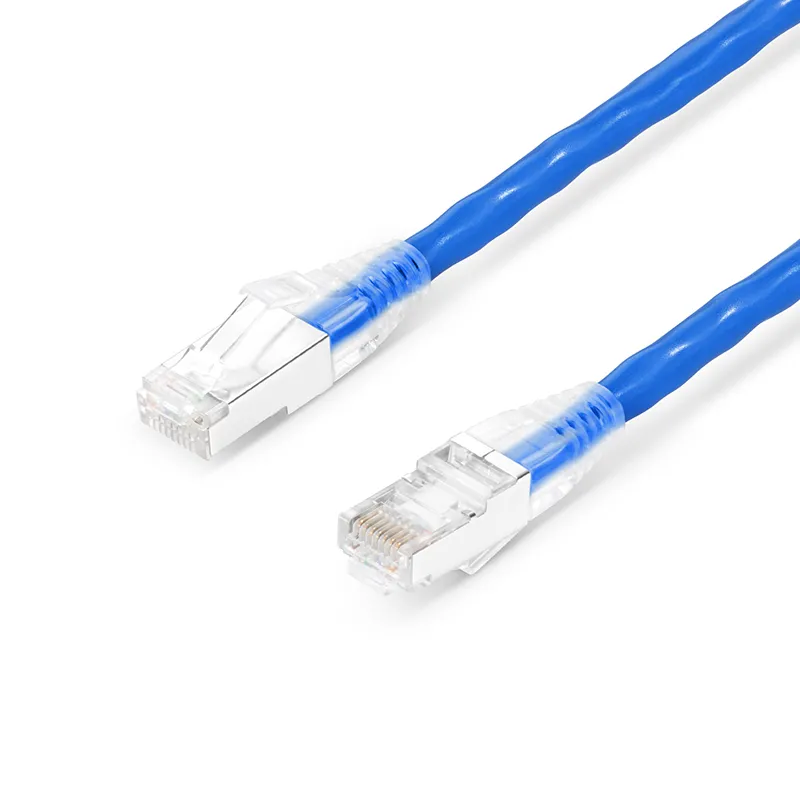

RJ45 Modular Plug
PVC Jacket
Strain Relief Boot

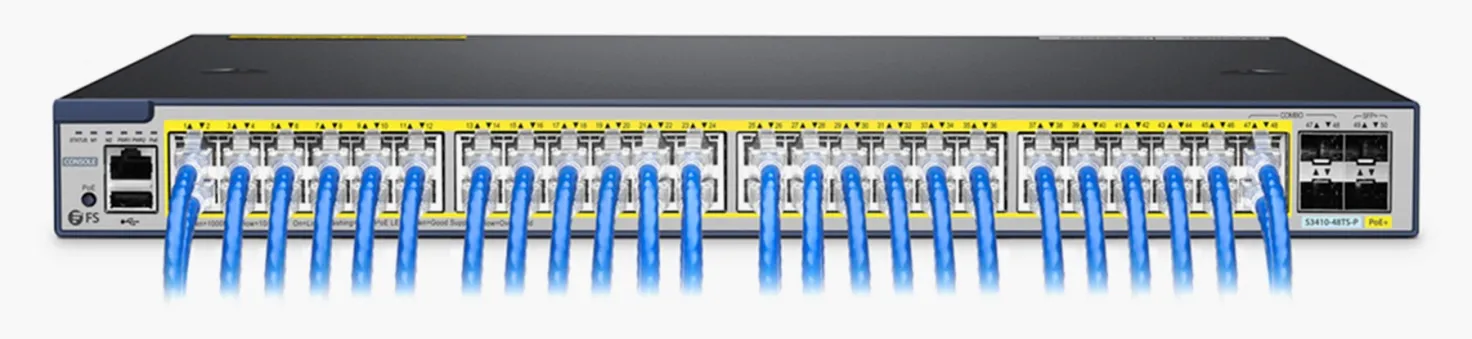

Widely Used in Equipment with RJ45 Ports

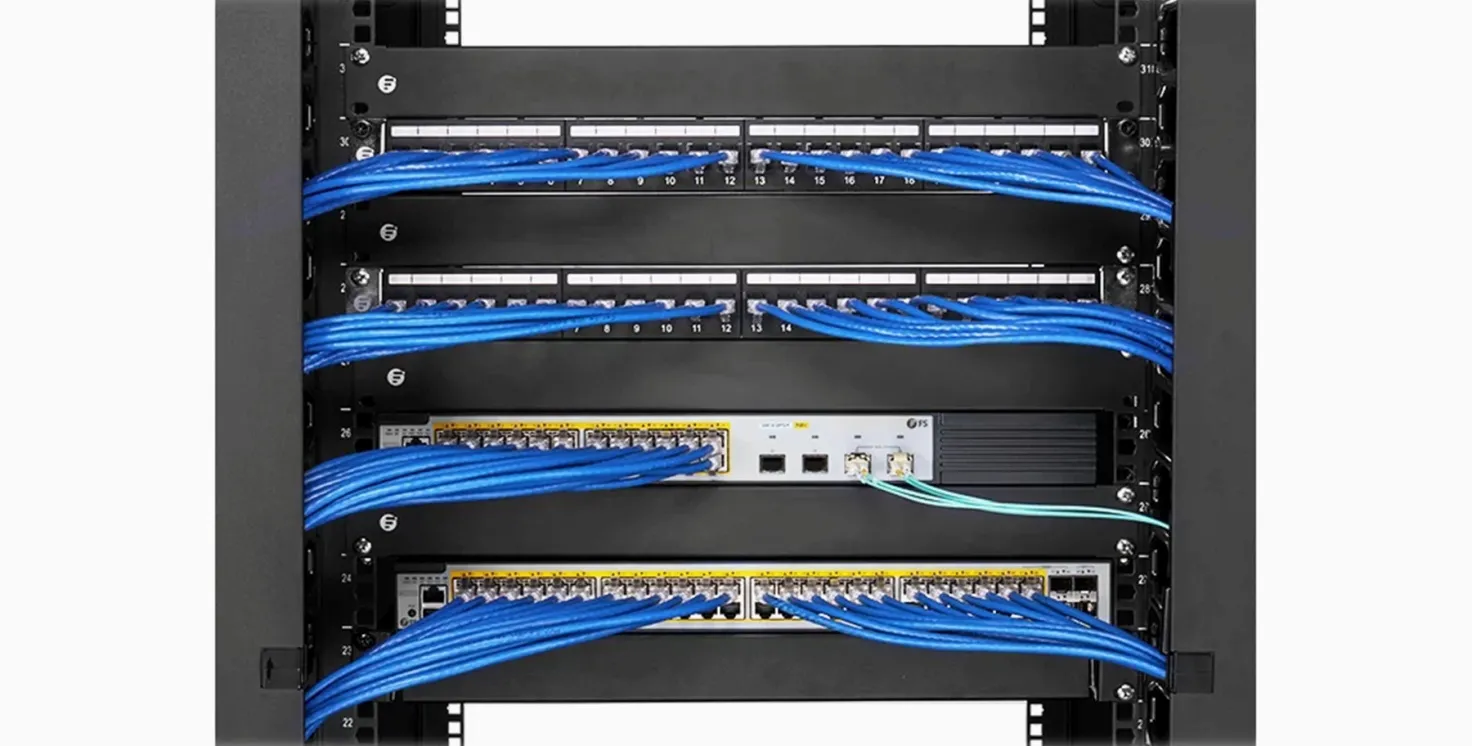

Copper Cabling Solutions for Data Center

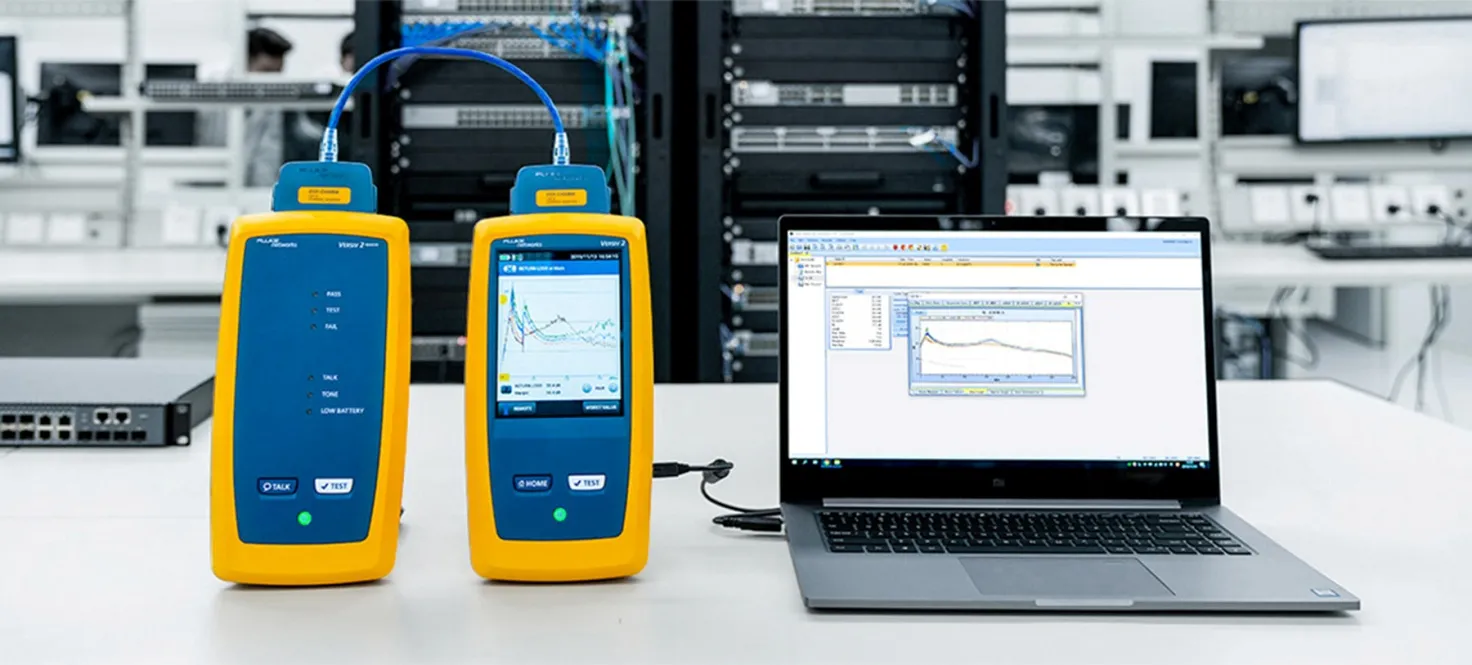

Fluke Networks-Cable Testing
