| Part No. | CPC-CAT6-UTP-GY-1FT |
| Product ID | 090102001 |
| MOQ | 1 Piece |
| Lead Time | 7-10 Working Days according to Quantity |
Product Highlights
Exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E Standards
Up to 550MHz with 1G/10G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
Performance Tested with Fluke and Wired T568B.
Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes
Solid Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts
LSZH, Less Smoke and Almost No Highly Toxic Gas Called Halogen
Pure Bare Copper Conductors with Stable Transmission Performance

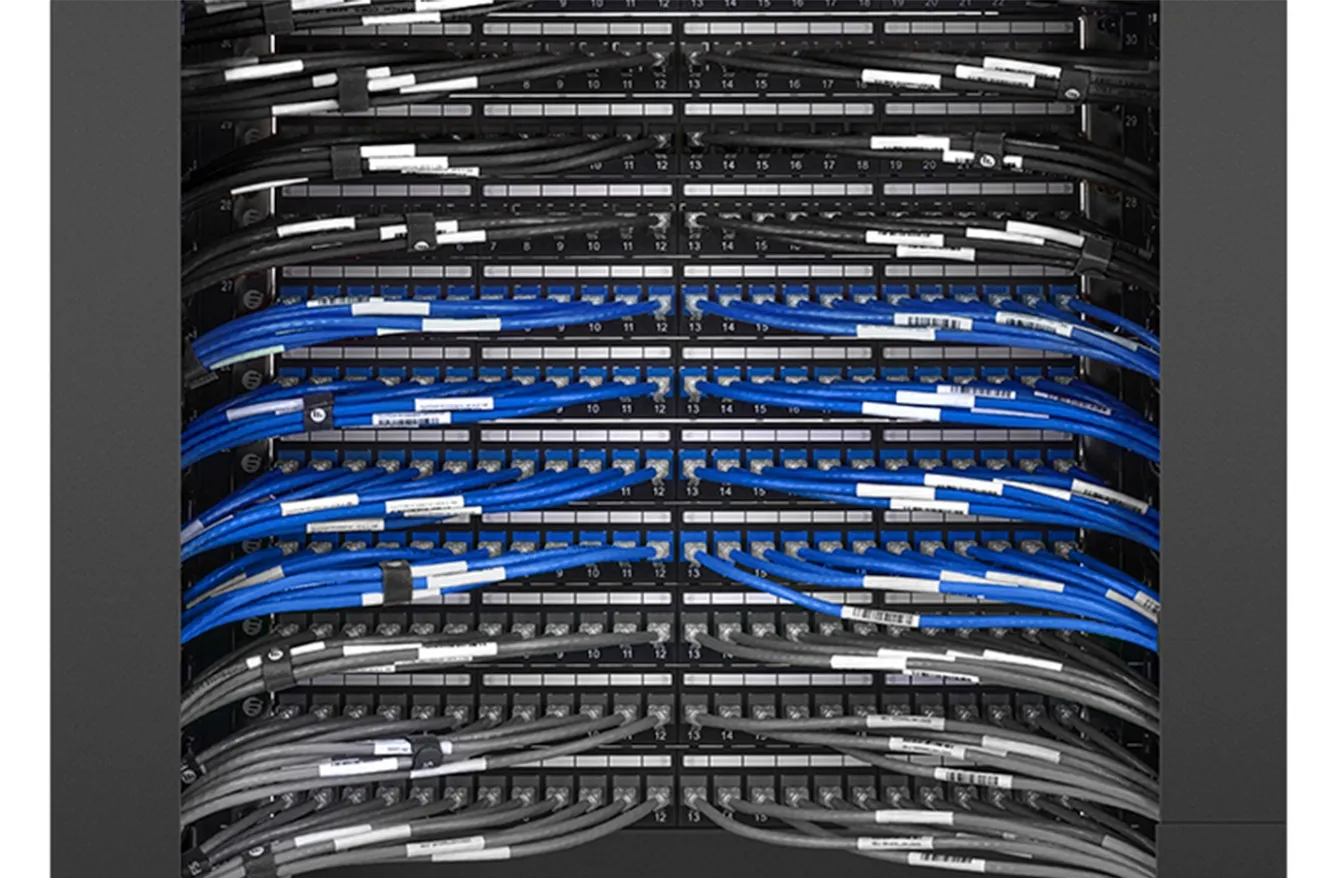

Use in Patch Panel or Equipment Connections in Enterprise Networks and Data Center
Variety of Cable Colors and Lengths to Meet Individual Requirements and System Flexibility
See More
Description
Cat6 UTP patch cable features 23AWG unshielded twisted pair solid pure bare copper cable with a high performance modular plug at each end. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation. The flexible strain relief boot provides easy access in high-density applications. It exceeds the performance of the Cat6 Ethernet network cable standard and offers the cost-effective solution for indoor Gigabit Ethernet data center applications, supporting 1000Mbps and 550MHz within 100 meters of cable. All patch cords shall be compatible with both T568B wire scheme. Stranded copper patch cable can be used with a longer flex-life. The cable supports PoE to save you the expense and effort of powering PoE devices individually. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles.
Specifications
| Cable Type | Cat6 Snagless | Shielding Type | Unshielded (UTP) |
| Cable Jacket | LSZH | Length | 1ft (0.3m) (Including Plugs) |
| Data Rate Support | 1000Base-T and Maximum to 10GBase-T | Maximum (Tested) Frequency | 550MHz |
| Conductor Material Conductor Type | Pure Bare Copper | Conductor Type | Solid |
| Gauge (AWG) | 23 | Cable Outer Diameter (mm) | 5.8 ± 0.4 |
| PoE Compatibility | PoE/PoE+/PoE++ | Connectors | RJ45 (Male) |
| Wire Scheme | T568B, Straight | Standard | ISO/IEC 11801, ANSI/TIA-568.2-D |
| Operating Temperature | -40 to +85°C (-40 to 185°F) | Installation Temperature | -10 to +50°C (14 to 122°F) |
Features
550MHz Stable Transmission
50μ〞Gold-plated Connectors
Pure Copper Conductors
4 Twisted Pairs
Color-Coding Cables for Quick Visual Identification

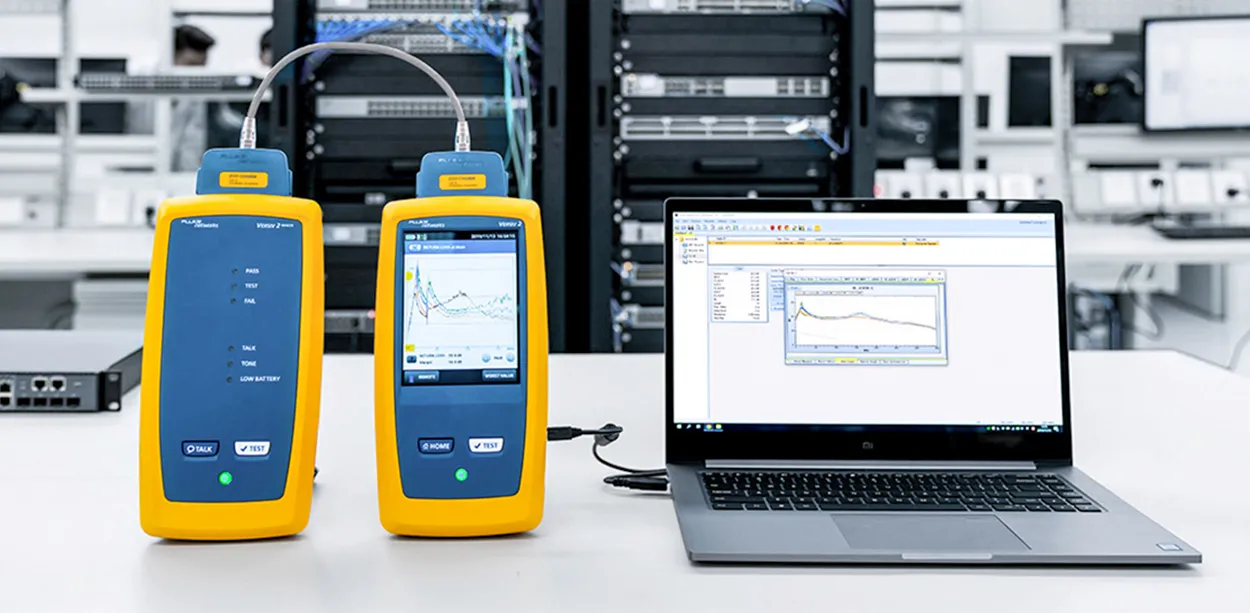

Fluke Networks-Cable Testing
