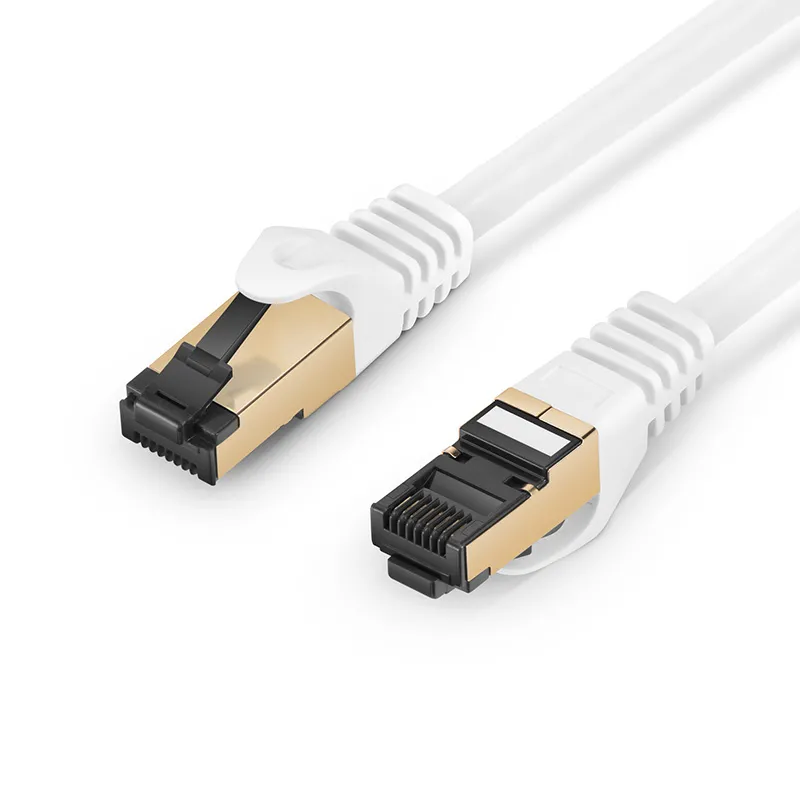

| Part No. | CPC-CAT8-SFTP-OW-3FT |
| Product ID | 090105001 |
| MOQ | 1 Piece |
| Lead Time | 7-10 Working Days according to Quantity |
Product Highlights
Exceed ANSI/TIA-568.2-D Category 8 and ISO 11801 Class E Standards
Up to 2000MHz with 25/40G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
S/FTP Cable Minimizes EMI and RFI Interference.
Performance Tested with Fluke and Wired T568B
Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts
See More
Description
The FUTURE CABLING cat8 patch cables conductor applies pure bare copper with high electrical conductivity and low signal transmission attenuation. Snagless RJ45 connectors prevent tabs from being damaged during installation. Cable construction provides excellent alien crosstalk suppression and EMI/RFI protection to help your equipment perform better. Stranded copper patch cable can be used with a longer flex-life. The cable supports PoE to save you the expense and effort of powering PoE devices individually. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles.
This Cat8 cable transmits 40 Gbps data, voice, and audio/video signals through high-speed 40G equipment, such as high-speed switch-to-switch communication devices in your data center. Its maximum data transfer speed of 40 Gbps is four times that of the Cat6a cable and supports bandwidth up to 2000 MHz for carrying information and streaming video with no lag. It is fully backwards compatible with all the previous categories.
Specifications
| Cable Type | Cat8 Snagless | Shielding Type | Shielded (S/FTP) |
| Cable Jacket | PVC CM (Round) | Length | 3ft (0.9m) (Including Plugs) |
| Conductor Material | Pure Bare Copper | Conductor Type | Stranded |
| Connector Plating | Nickel | PoE Compatibility | PoE/PoE+/PoE++ |
| Data Rate Support | 25/40GBase-T | Maximum (Tested) Frequency | 2000MHz |
| Gauge (AWG) | 28 (7/0.12MM) | Cable Outer Diameter (mm) | 6.0 ± 0.2 |
| Max Transmission Distance | 30m | Twisted Pairs | 4 Pairs |
| Wire Scheme | T568B, Straight | Standard | ISO/IEC 11801, ANSI/TIA-568.2-D |
| Operating Temperature | -20 to +75°C (-4 to 167°F) | Installation Temperature | -10 to +50°C (14 to 122°F) |
Features
Up to 25/40GBase-T and 2000MHz
50μ〞Gold-plated Connectors
Pure Copper Conductors

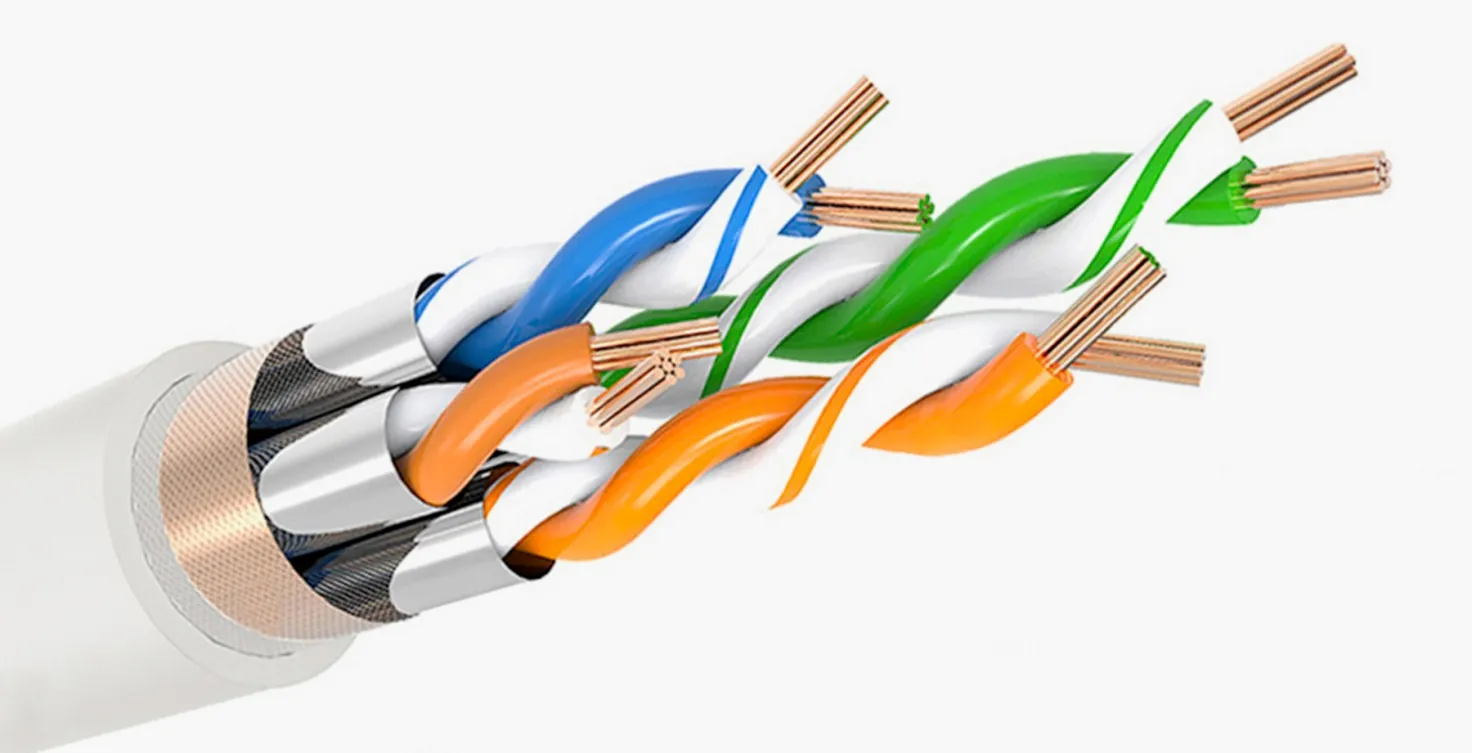

Stranded 4 Twisted Pairs
Triple Protection of Patch Cables
RJ45 Modular Plug
PVC Jacket
Strain Relief Boot
PoE Function to Save Money and Offer More Installation Choices
Dispels EMI/RFI Line Noise

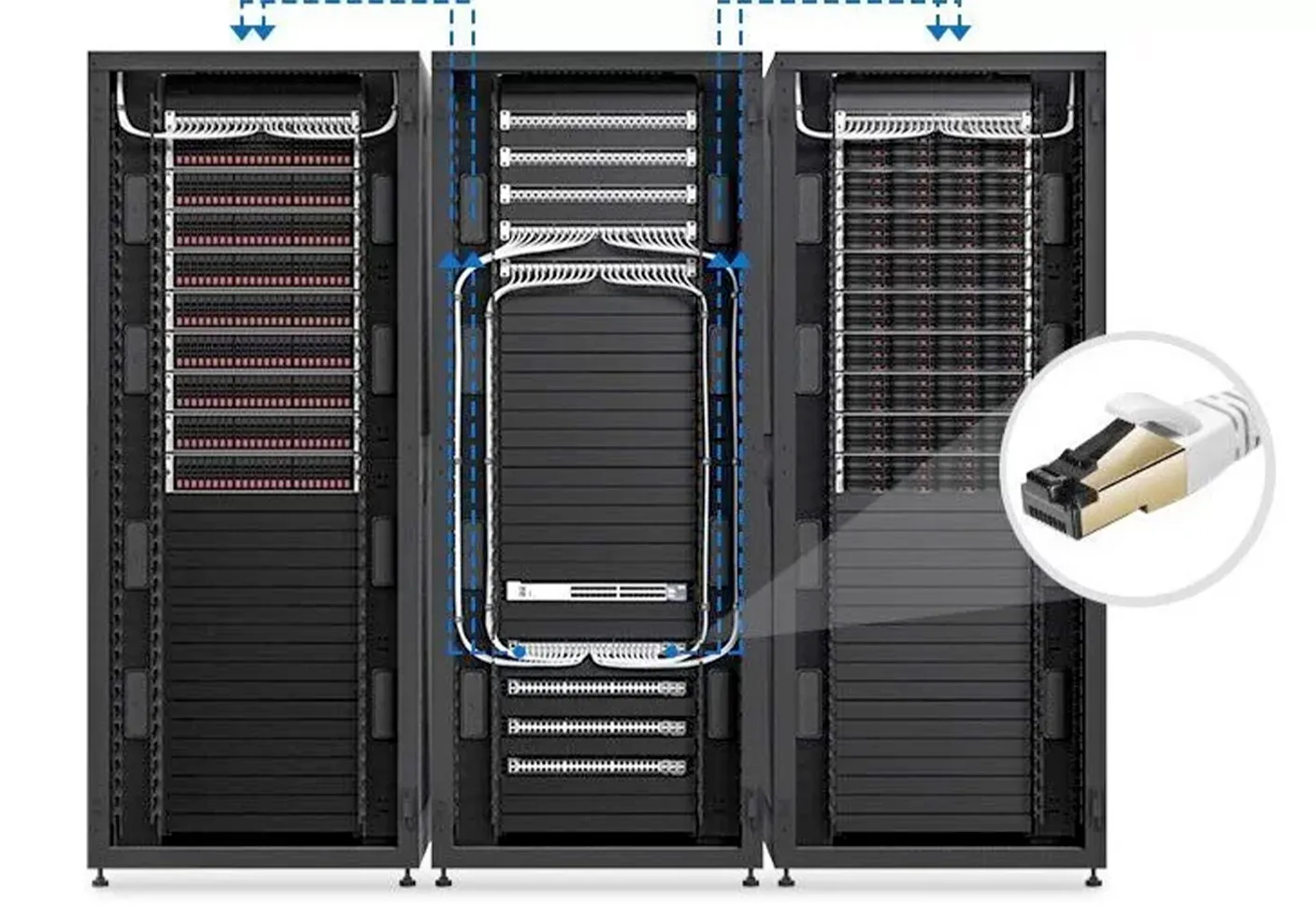

The Cost-effective Solution for Indoor Data Center

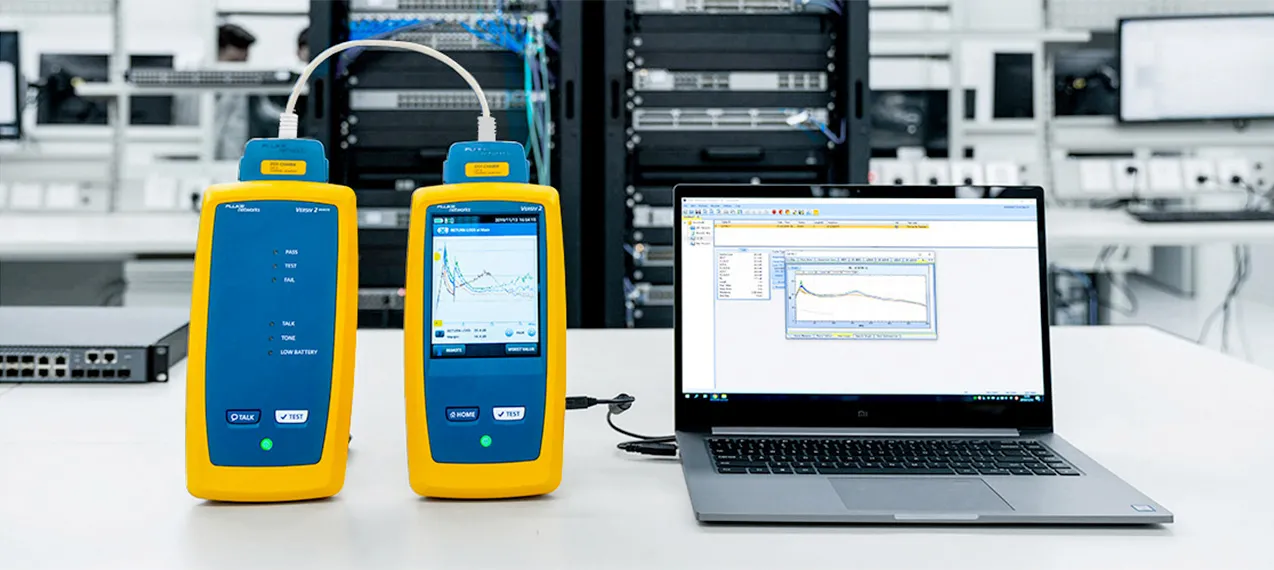

Fluke Networks-Cable Testing
Multi-Scene Application
