| Part No. | FTTA-LCU-LCU-OS2-DX-ODBS |
| Product ID | 010405005 |
| MOQ | 100 Piece or total cable length ≥500 meters |
| Lead Time | 10-15 Working Days according to Quantity |
Product Highlights
Support Horizontal and Vertical Cabling for All Common LTE/4G/5G Radio Systems
Optical Testing Guarantees Insertion Loss and Returns Loss
Plug-and-play Installation
Corning G.657.A1 Bend Insensitive Fiber
Helical Steel Armored Branch Cable for Anti-rodent Protection and Bird-proof
See More
Description

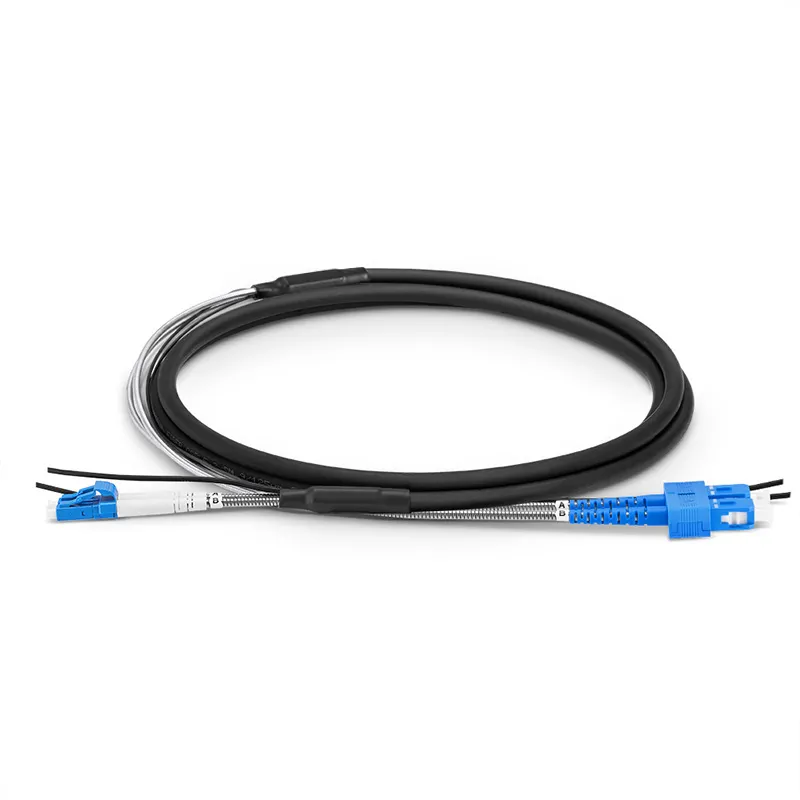

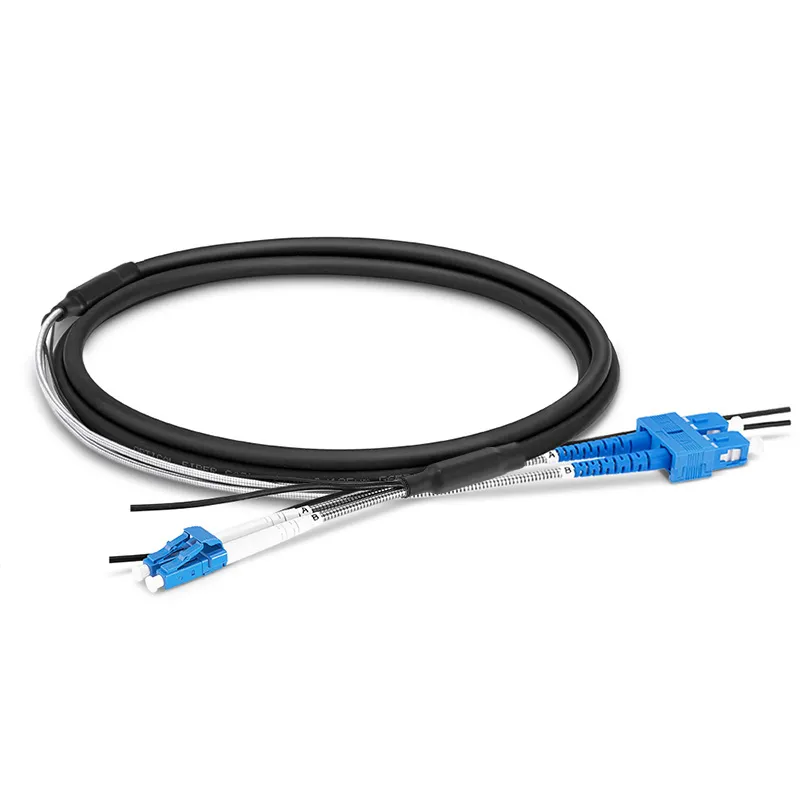

FTTA patch cable is designed for high reliability in heavy industrial and harsh environment applications, including fiber to the antenna solution.

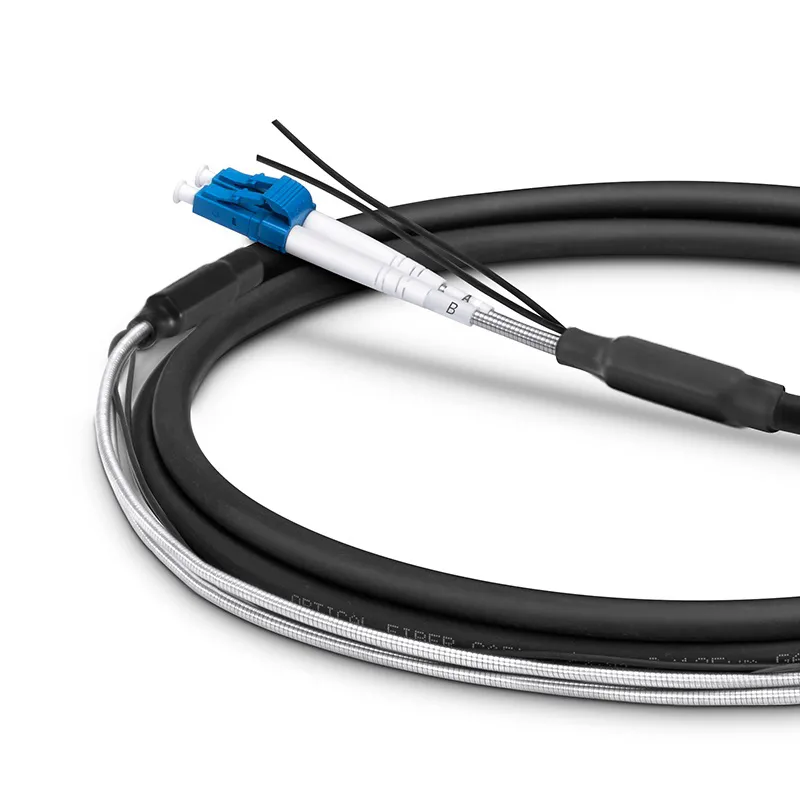

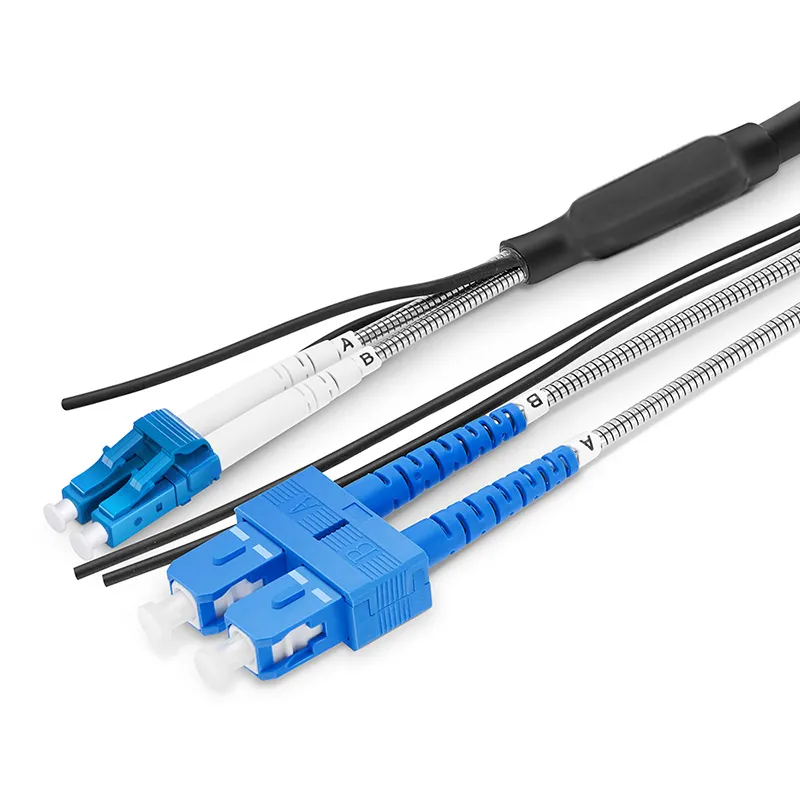

Consisting of Corning fiber cable and LC to SC UPC duplex connectors, the cable features superior crush resistance and a high degree of flexibility with the armored tube. Furthermore, the cable features a flame-retardant LSZH jacket which is UV stabilized and highly resistant to chemicals commonly found in industrial environments, also suitable for both indoor and outdoor industrial installations.
Specifications
| Connector Type | LC to SC | Polish Type | UPC to UPC |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Fiber Grade | Corning G.657.A1 | Min. Bend Radius | 20/10D (Dynamic/Static) |
| Attenuation at 1310nm | 0.36dB/km | Attenuation at 1550nm | 0.22dB/km |
| Fiber Count | Duplex | Cable Jacket | Low Smoke Zero Halogen (LSZH) |
| Cable Outside Diameter (OD) (Outer/Inner) | 7.0/2.0mm | Armored Breakout Length (End A/B) | 0.03/0.34m |
| Tensile Strength | 200/400N (Long/Short Term) | Crush Resistance | 1100/2200N (Long/Short Term) |
| Operating Temperature | -20 to 70°C (-4 to 158℉) | Storage Temperature | -40 to 80℃ (-40 to 176℉) |
Features
Corning BIF Ensures Transmission Quality

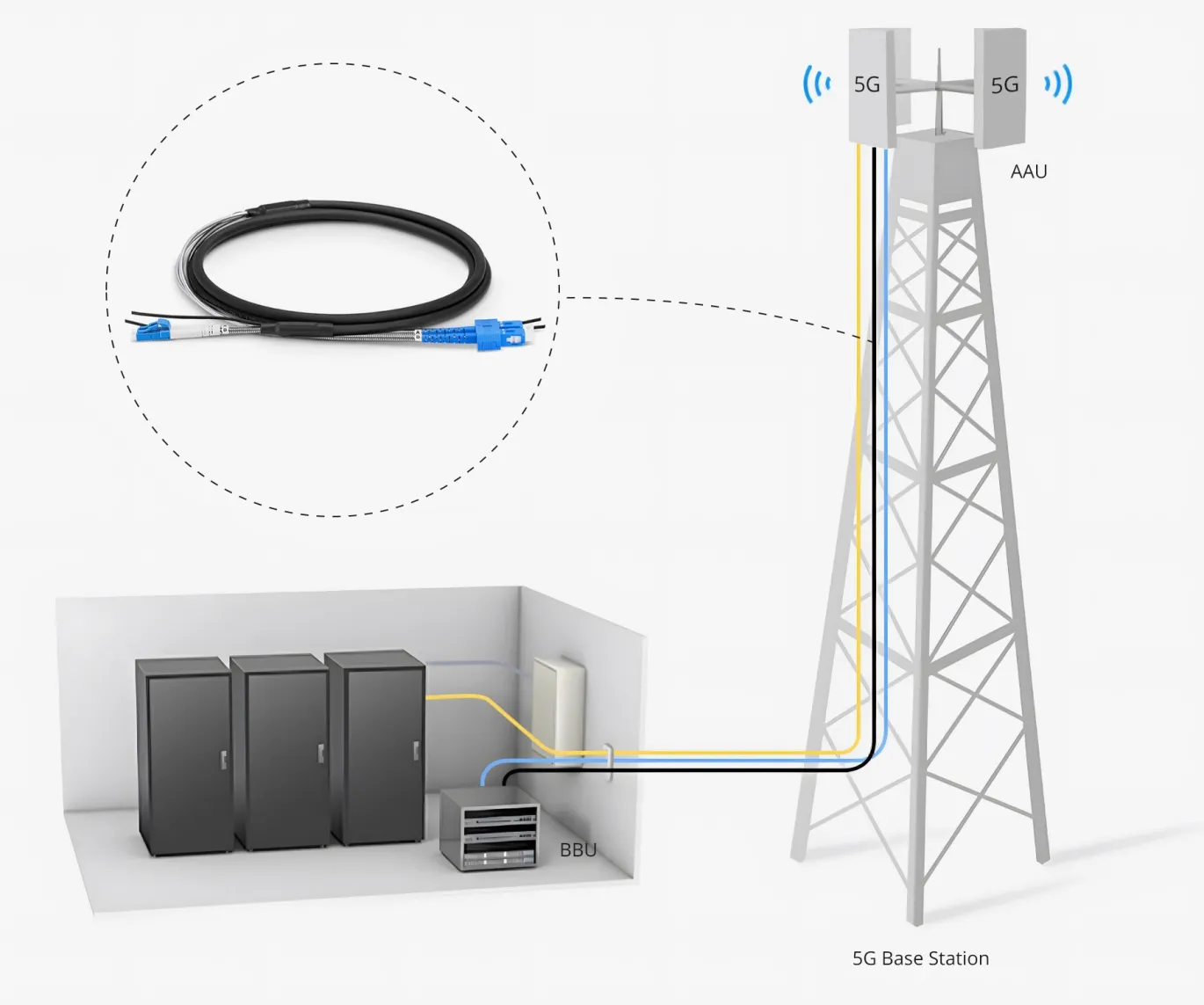

Designed for Outdoor Base Station Construction

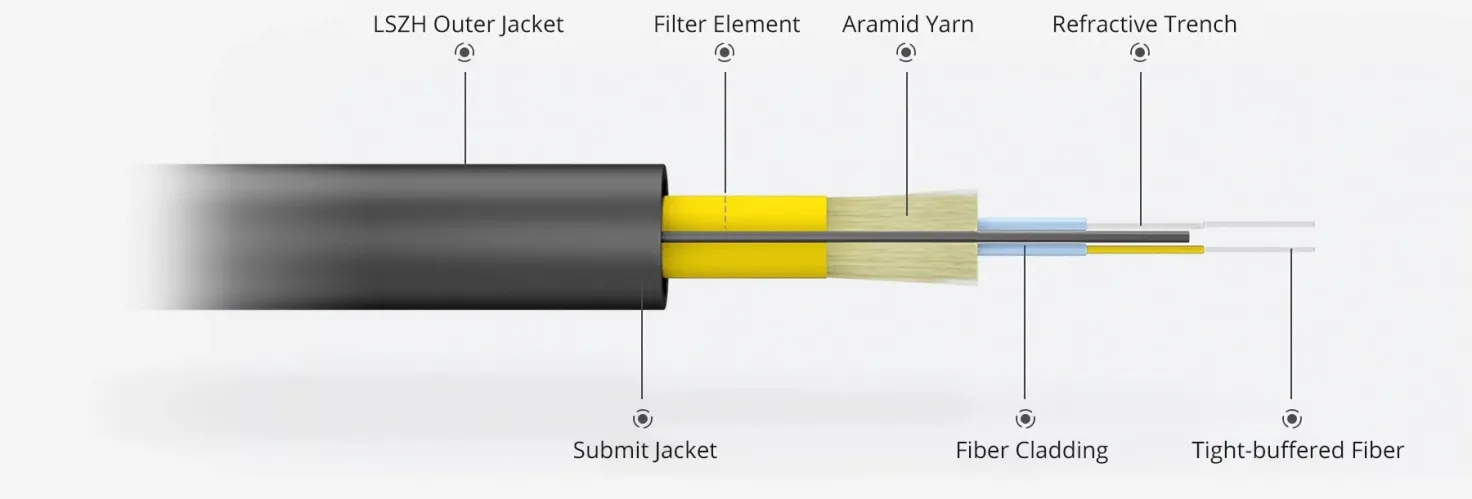

Armor & Strength Members
20/10D Min. Bend Radius
200-400N Tensile Strength
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
