| Part No. | FJ-LCU-LCU-FLCP-OS2-DX-2.0 |
| Product ID | 010401002 |
| MOQ | 100 Piece |
| Lead Time | 7-10 Working Days according to Quantity |
Product Highlights
Uniboot Allows One Cable to Carry Two Fibers to Reduce the Cable Bulk When Routing
Termination Is Tested To Ensure Network Performance
Corning G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
Reverse Polarity without Exposing the Fibers or Needing Any Tools
Designed for High-Density Fiber Cabling in Data Centers
Support for Various Transmission Speed Ethernet Applications
See More

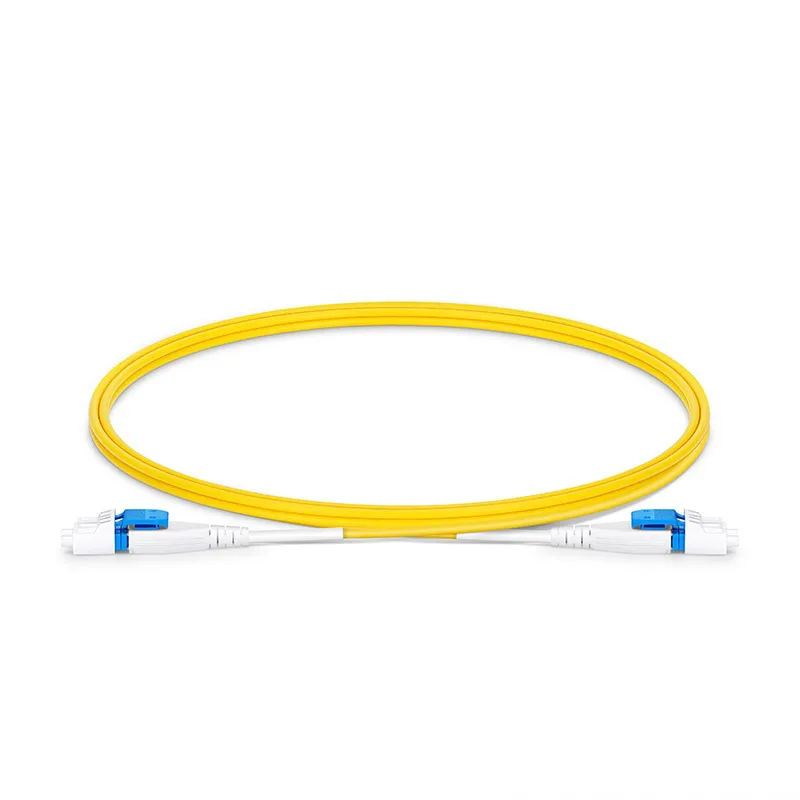

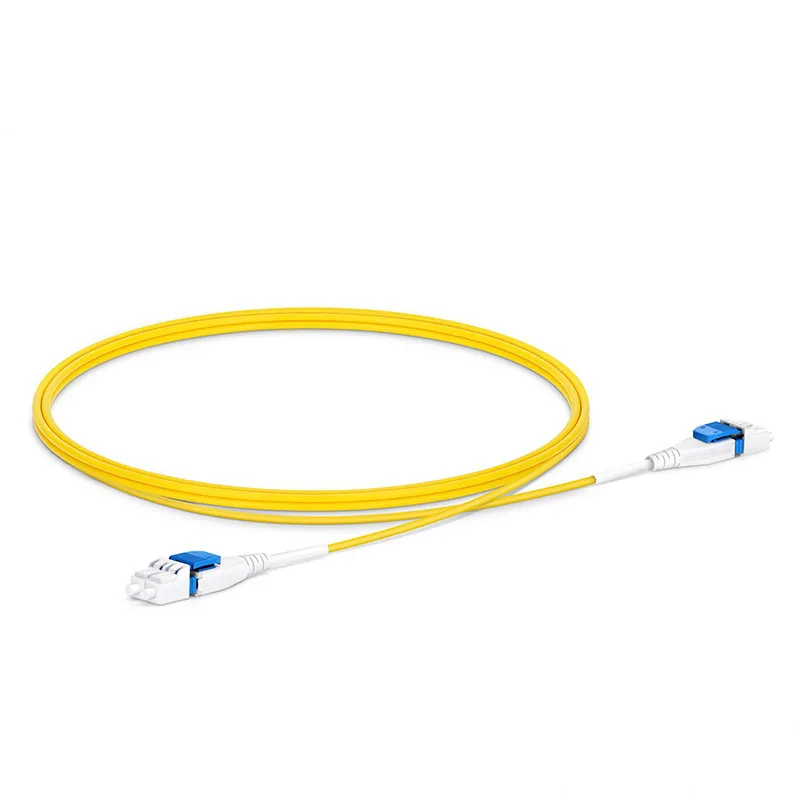

Description
The uniboot design allows one cable to carry both fibers, reducing cable congestion when routing. It is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Its reverse-polarity design allows for quick and easy polarity conversion without exposing the fibers or needing any tools.
Specifications
| Connector Type | LC UPC to LC UPC | Fiber Grade | Corning G.657.A1 Fiber |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥50dB |
| Attenuation at 1310nm | ≤0.36 dB/km | Attenuation at 1550nm | ≤0.22 dB/km |
| Fiber Count | Duplex | Cable Outside Diameter (OD) | 2.0mm |
| Min. Bend Radius (Fiber Core) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Tensile Strength (Long Term / Short Term) | 60/100N | Cable Jacket | Riser (OFNR) |
| Durability | 1000 Cycles | Polarity | A (Tx) to B (Rx) |
| Operating Temperature | -10~70°C | Storage Temperature | -20~70°C |
Features
50% Space-saving Uniboot for High Density Applications
10/5D Min. Bend Radius

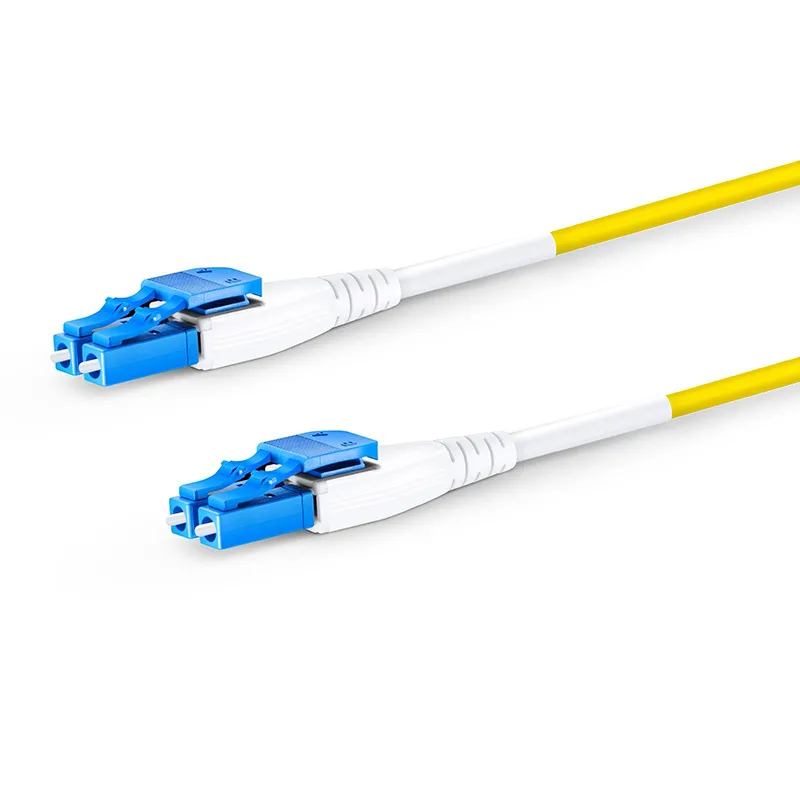

Suncall Flat Clip LC

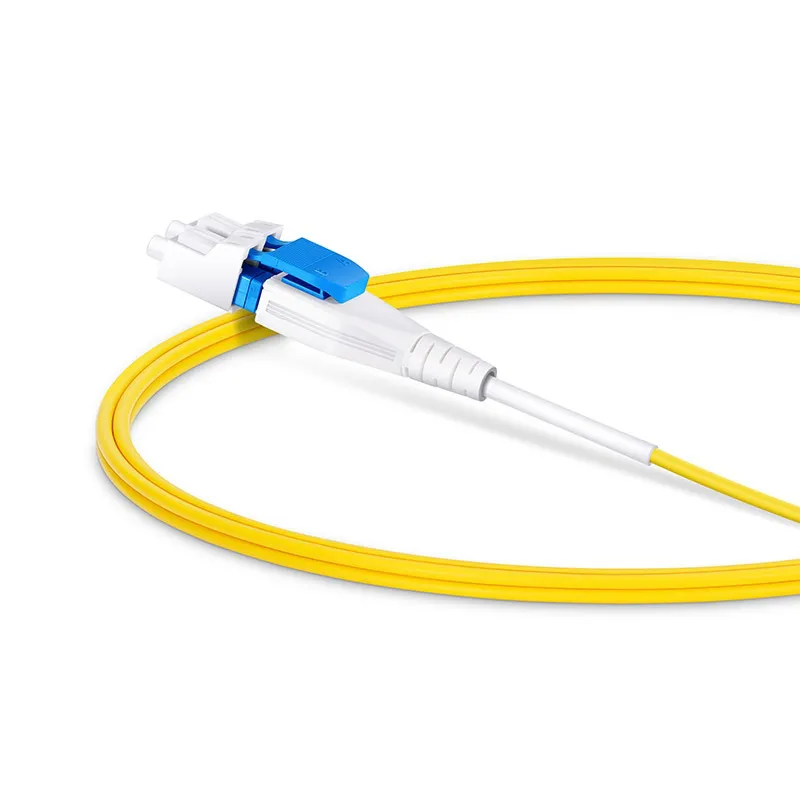

Uniboot Design
Meet Your Polarity Reversal Needs
Unlock the latch from the back
Extract the clip
Rotate the connector body 180°
Re-attach the clip and lock it
Meet the Various Indoor Installation Needs

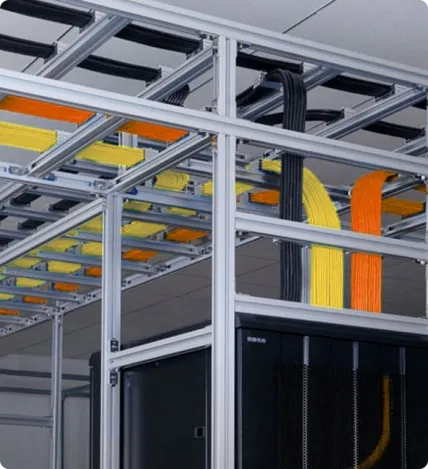

Ceiling Application

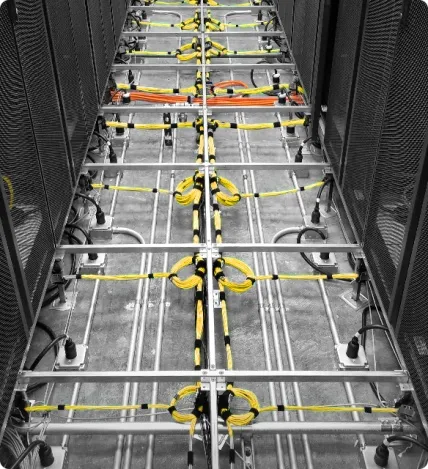

Floor Application

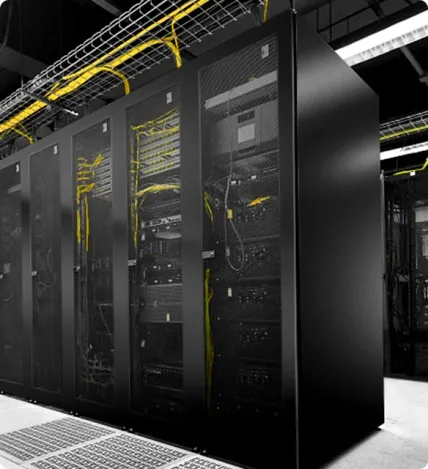

In-cabinet Application
