| Part No. | CTM-IAFP-OS2-TPU |
| Product ID | 010403001 |
| MOQ | 100 Piece or total cable length ≥500 meters |
| Lead Time | 10-15 Working Days according to Quantity |
Product Highlights
TPU Jacket Features Water, Abrasion Resistance
Helical Steel Armor Provides Crush & Rodent Protection
Operate in Extreme Temperature Ranges, from -40°C~+85°C
High Compressive Forces and Resist Crushing
Field Deployment in Harsh Environments
See More
Description
The industrial armored cable features strong tensile strength, strong pressure and rodents resistance, and good flexibility characteristics. Besides, it is bending resistant, oil-resistant and wear-resistant. Therefore, the industrial armored cable is ideal for both indoor and outdoor applications, such as connecting the networks of two buildings through the use of an underground conduit or direct buried.
Specifications

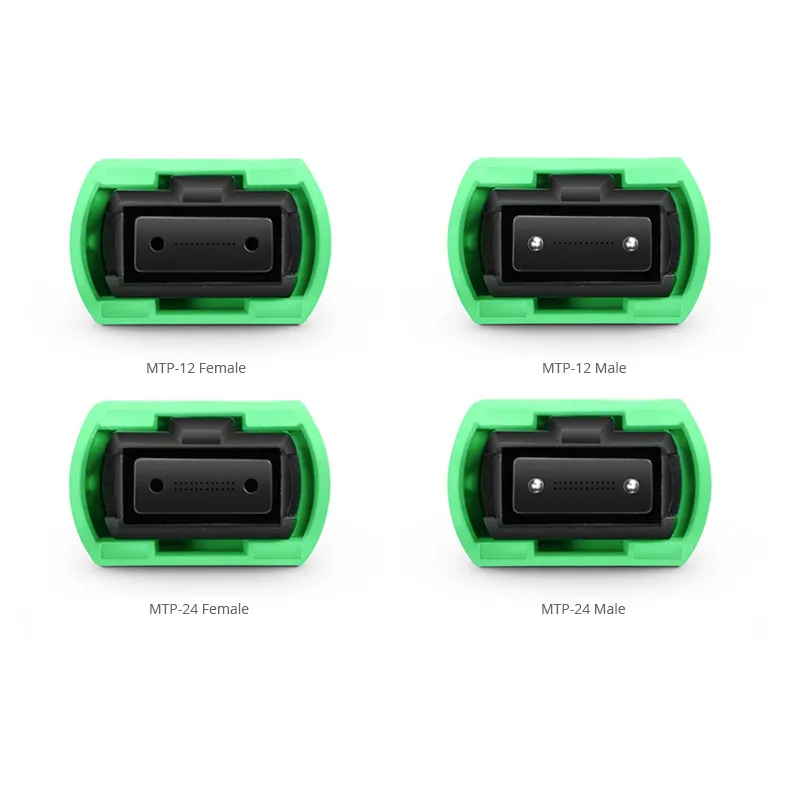

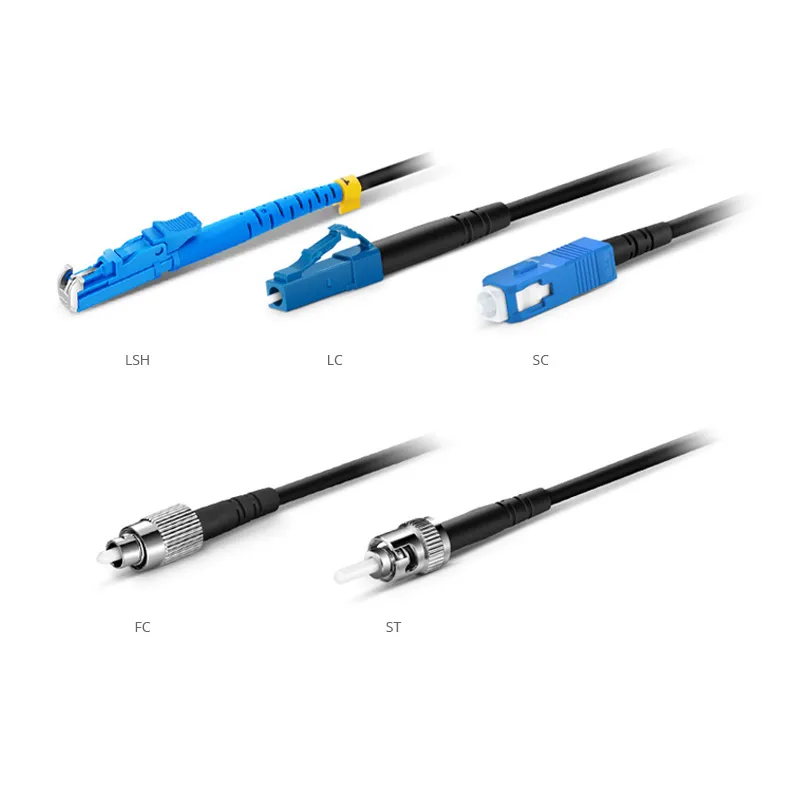

| Connector Type | LC/SC/ST/FC/LSH/MTP/ODC/YZC/IP67 | Polish Type | UPC/APC |
| Fiber Count | 1-24 Fibers | Fiber Grade | G.657.A2 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Trunk Outside Diameter (OD) | 3.0-7.0mm | Breakout Outside Diameter (OD) | 3.0mm (1~4 Fibers) 2.5mm (6~24 Fibers) |
| Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Cable Jacket | TPU (Thermoplastic Polyurethane) | Maximum Tension of Pulling Eye | 245N |
| Crush Resistance | 2000/3000 N/100mm (Long/Short Term) | Tensile Load | 500/800N (Long/Short Term) |
| Connector Durablity | 500 times | Flex Resistance | 2000 Cycles |
| Insertion Loss | LC/SC/ST/FC/LSH≤0.3dB IP67 LC/IP67 SC≤0.5dB MTP®/IP67 MTP®≤0.35dB ODC/YZC≤1.0dB | Return Loss | UPC≥50dB, APC≥60dB |
| Attenuation at 1310nm | 0.36dB/km | Attenuation at 1550nm | 0.22dB/km |
| Operating Temperature | -40 to 80°C (-40 to 176℉) | Storage Temperature | -40 to 80°C (-40 to 176℉) |
* The tensile load of simplex fiber cables is 200/400N (Long/Short Term).
Features

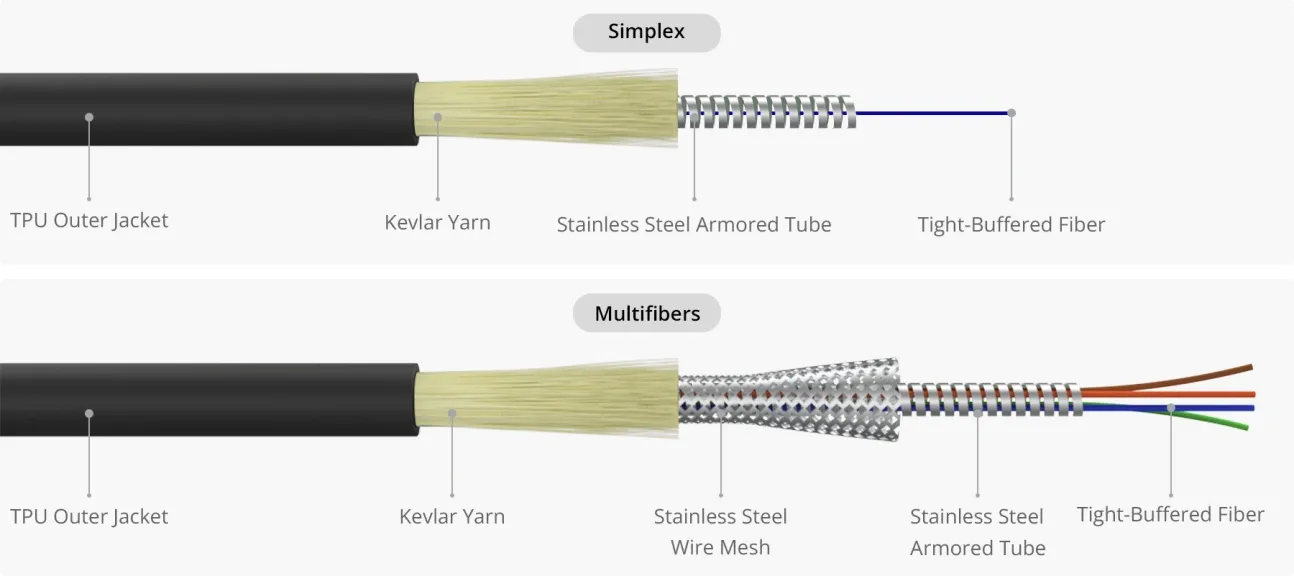

Stronger than Regular Cable, yet Highly Flexible
Withstand Repeated Bending
Rodent Proof
Crush Resistance
Built of Durable TPU for Deployment in Outdoor Settings
Waterproof
Wide Temperature Range
Abrasion Resistance

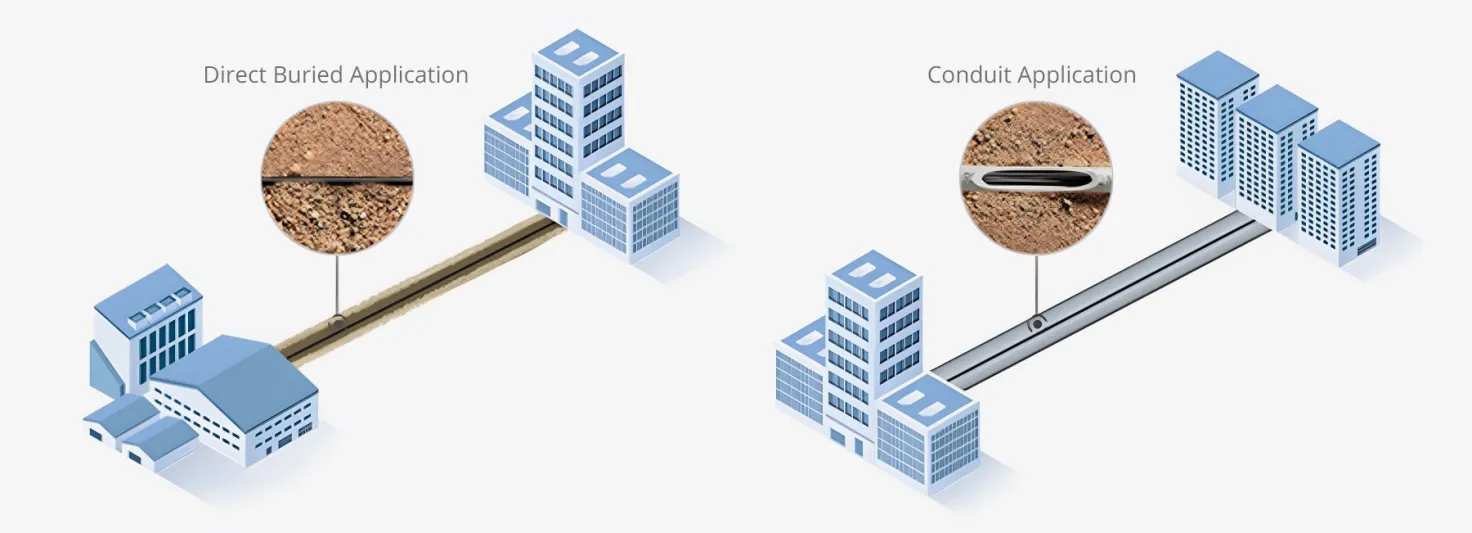

Convenient Direct Burial & Durable Conduits Applications
Ideal for Various Harsh Installation Environments
Road Wiring
Snowfield Wiring
Industrial Field Wiring
Construction Site Wiring
Two Polish Types for Various Signal Sensitivity Demands
UPC mainly used for TV, telephony and data systems.
UPC mainly used for TV, telephony and data systems.

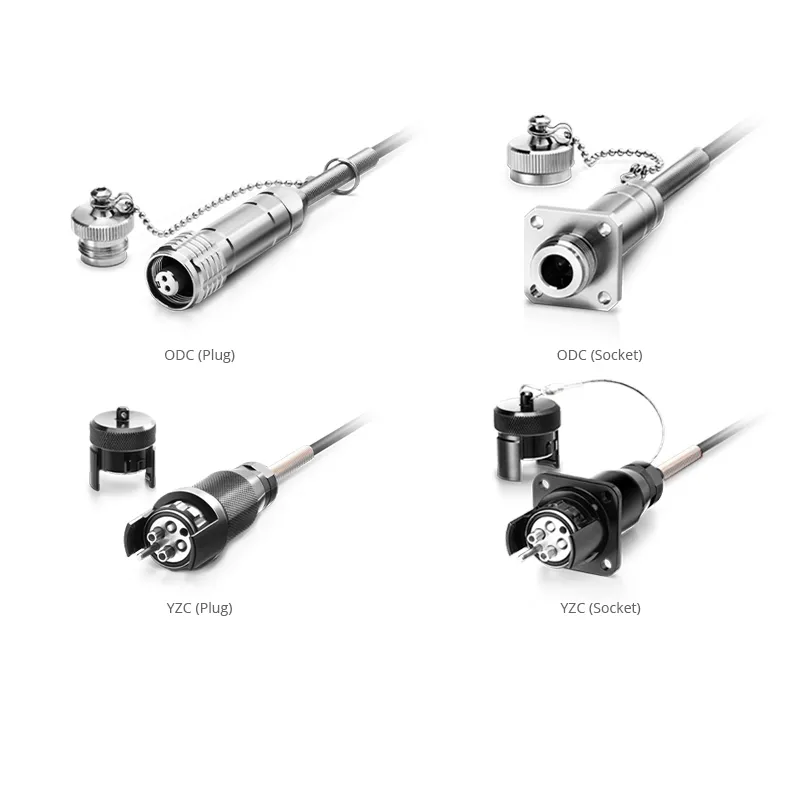

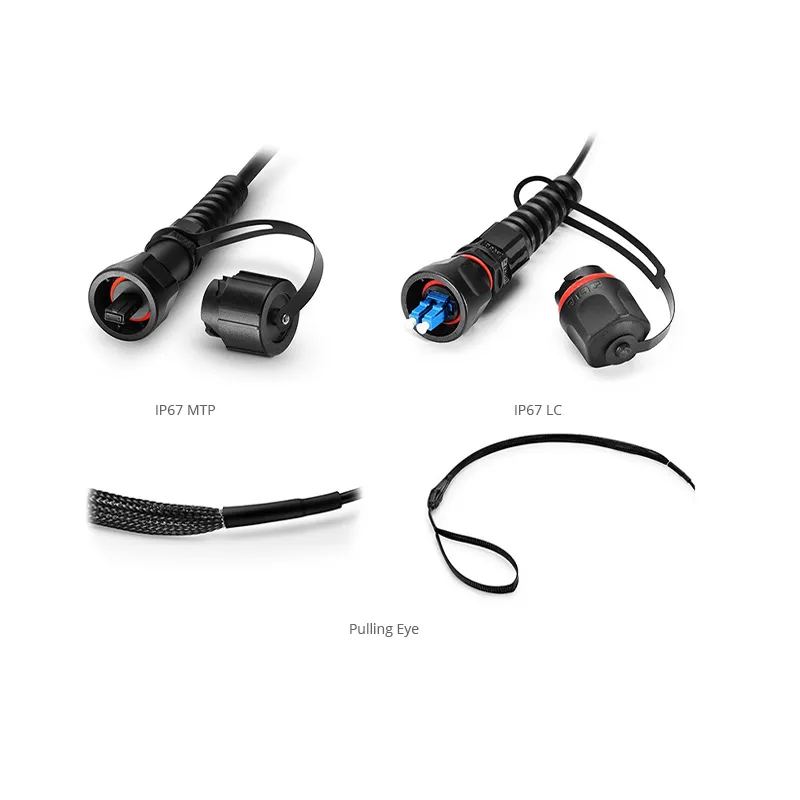

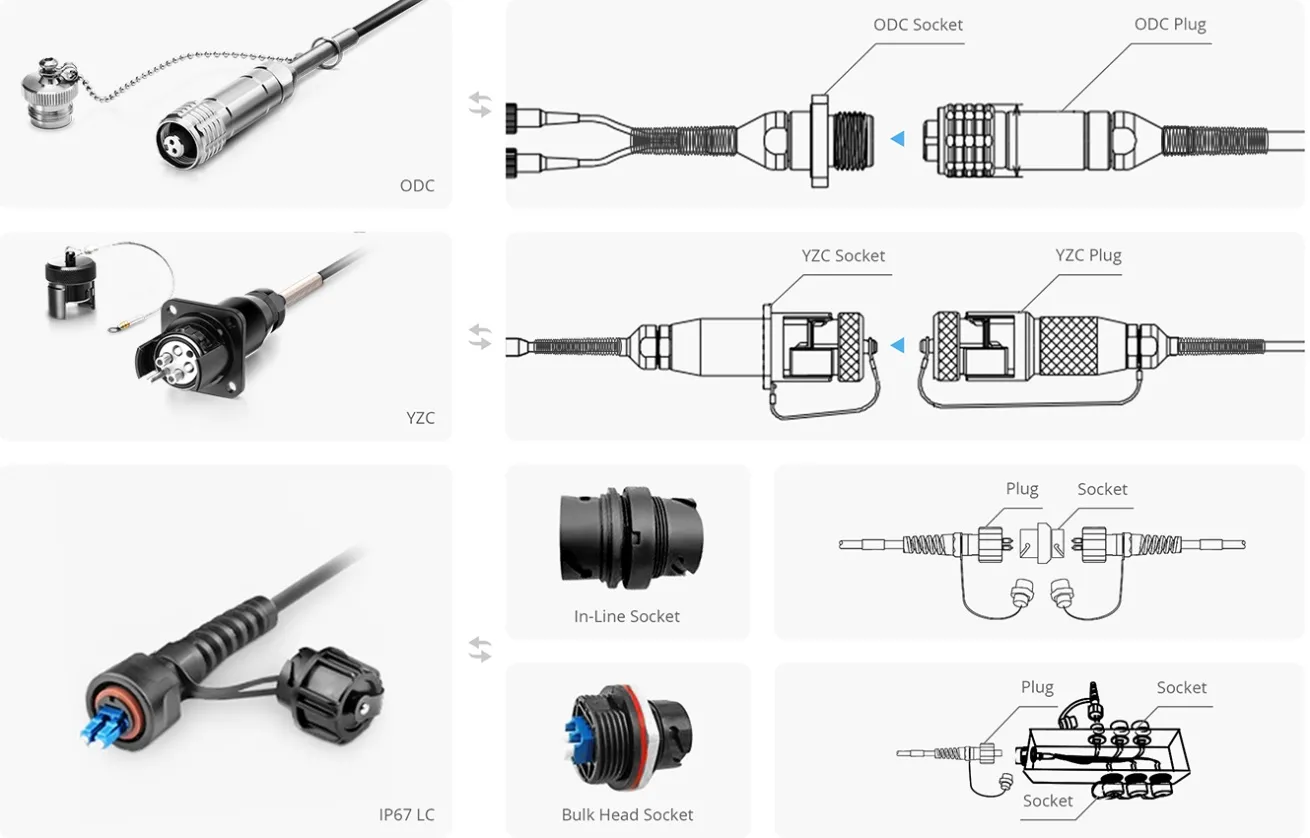

Industrial Cable Connectors for Outdoor Application

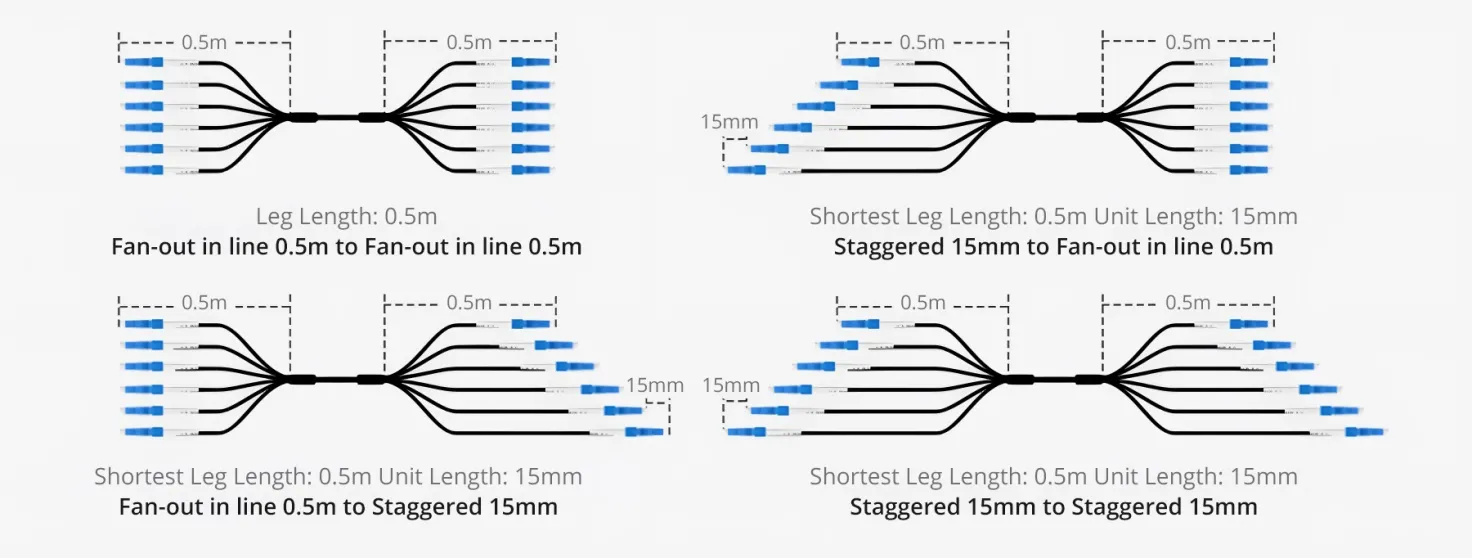

Breakout Types for Optimizing Cable Routing
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
