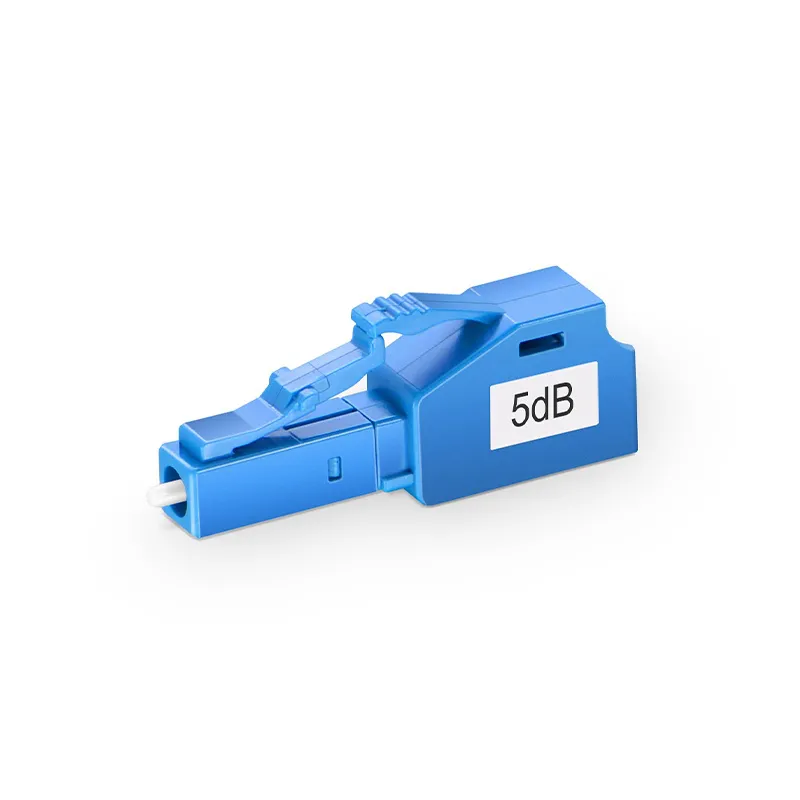

| Part No. | FAT-LCU-SM-MF-5dB |
| Product ID | 020201001 |
| MOQ | 1 Piece |
| Lead Time | 5-7 Working Days according to Quantity |
Product Highlights
Standard Fixed Attenuation Value of 5dB
Applied for CWDM, DWDM, Test Equipment, CATV Systems, Point to Point Systems, etc.
Attenuating Material-ion Doped Fiber
1260 to 1620nm Wavelength Singlemode Attenuators
Precision Polishing for Reduced Back Reflection
High Precision Fiber Optic Ceramic Ferrules
Snap in Body for Fast Mating and De-mating
See More
Description
As optical passive devices, FUTURE CABLING attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
Specifications
| Fiber Connector | LC/UPC | Ferrule Type | Zirconia Ceramic |
| Connector Gender | Fixed Male to Female | Transfer Mode | Singlemode |
| Attenuation | 5dB | Operating Wavelength(nm) | 1260~1620(SM) |
| Attenuation Accuracy | ±0.5dB | Return Loss | ≥50dB |
| Polarization Dependent Loss | ≤0.2dB | Max Optical Input Power | 200mW |
| Durability | 500 times | Humidity | 95%RH |
| Operating Temperature Range | -25 to 70°C (-13 to 158°F) | Storage Temperature Range | -40 to 85°C (-40 to 185°F) |
Features

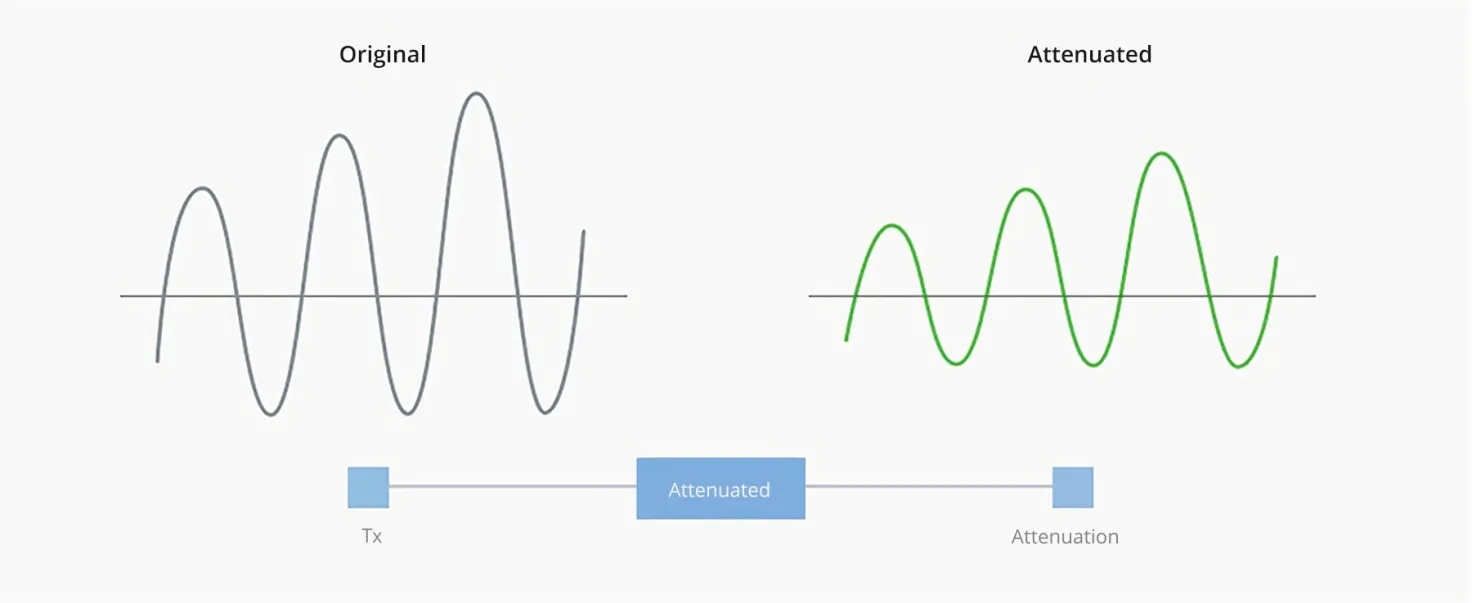

Signal Attenuation Provides Optical Transmission Security
Zirconia Ceramic Ferrule
Protective Dust Cap
Plastic Material Clip
Guarantee Long-range Transmission with Accurate Attenuation

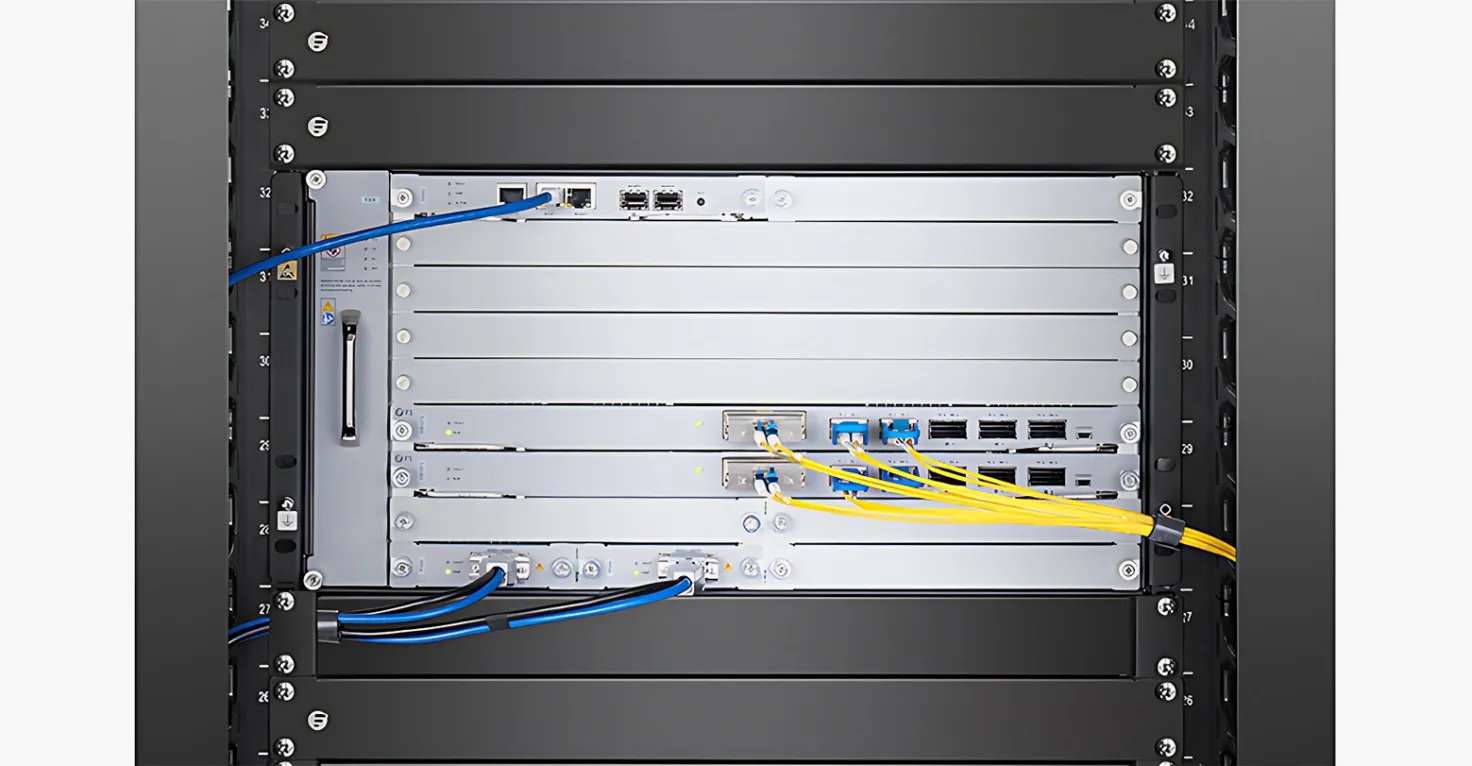

A Variety of Applications in Fiber Optic Communication Systems
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
