| Part No. | FLBM-MTPF-OS2-12F |
| Product ID | 020403001 |
| MOQ | 1 Piece |
| Lead Time | 5-7 Working Days according to Quantity |
Product Highlights
US Conec MTP® Connector
Low Insertion Loss≤1.5dB, High Return Loss>50dB
Easy Insertion and Extraction with Push-pull Design
Used in Testing 40G or 100G MPO/MTP® Interface Transceivers
Designed for Troubleshooting Network Failure Nodes
See More
Description
MTP® loopback modules are used widely within testing environment especially within parallel optics 40/100G networks. Devices allow verification and testing of transceivers featuring MTP® interface – 40G PLR4 or 100G PSM4 devices. Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MTP® transceivers interfaces. MTP® loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MTP® trunks/patch leads.
Specifications
| Fiber type | 9/125 OS2 Single-Mode | Fiber connector | MTP® Female, APC |
| Insertion loss | SM(G657.A2)≤1.5dB | Return loss | SM>50dB |
| Insert-pull test | 50times, IL<0.5dB | Size | 80mm*10mm |
| Operation temperature | -40 to 75°C (-40 to 167°F) | Jacket material | PC |
Features

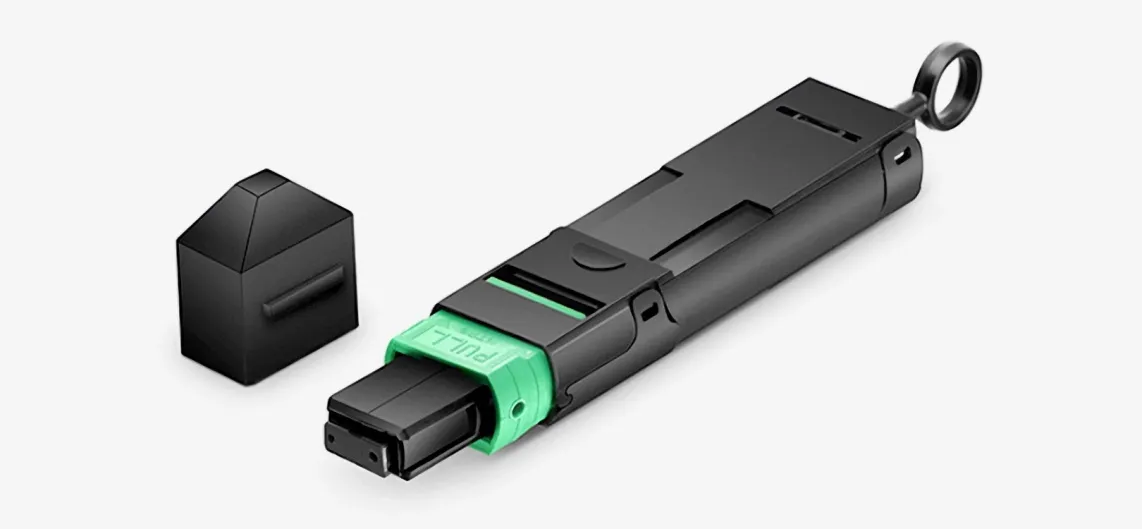

MTP Fiber Loopback Module for Troubleshooting Fiber Networks
lnsertion and Return Loss
Protective Dust Cap
Standard Connector

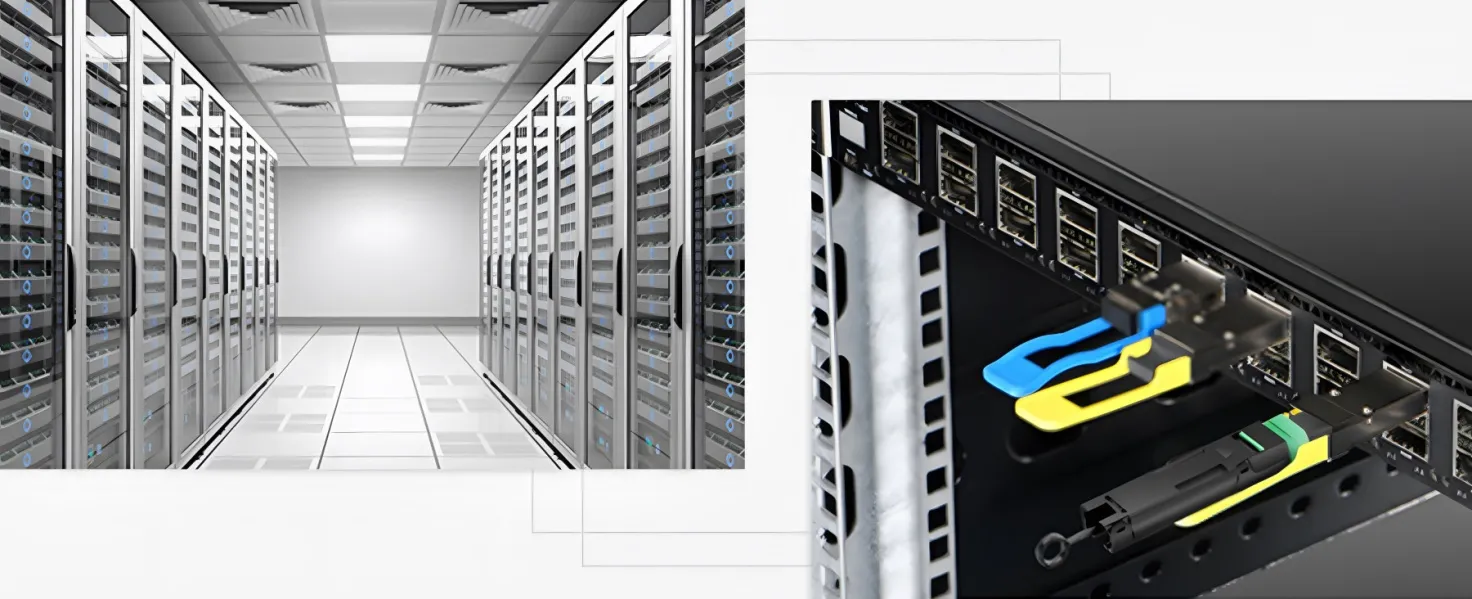

Application in Data Center
