| Part No. | FJ-MTP24-2MTP12-OM4-24F-TA |
| Product ID | 010302004 |
| MOQ | 1 Piece |
| Lead Time | 7-10 Working Days according to Quantity |
Product Highlights
US Conec MTP® Connector with Optimal 0.35dB Low IL
Corning ClearCurve® Multimode Fiber with 7.5mm Min. Bend Radius
OFNP Fire Safety-Rated for Use in Plenum Air Spaces

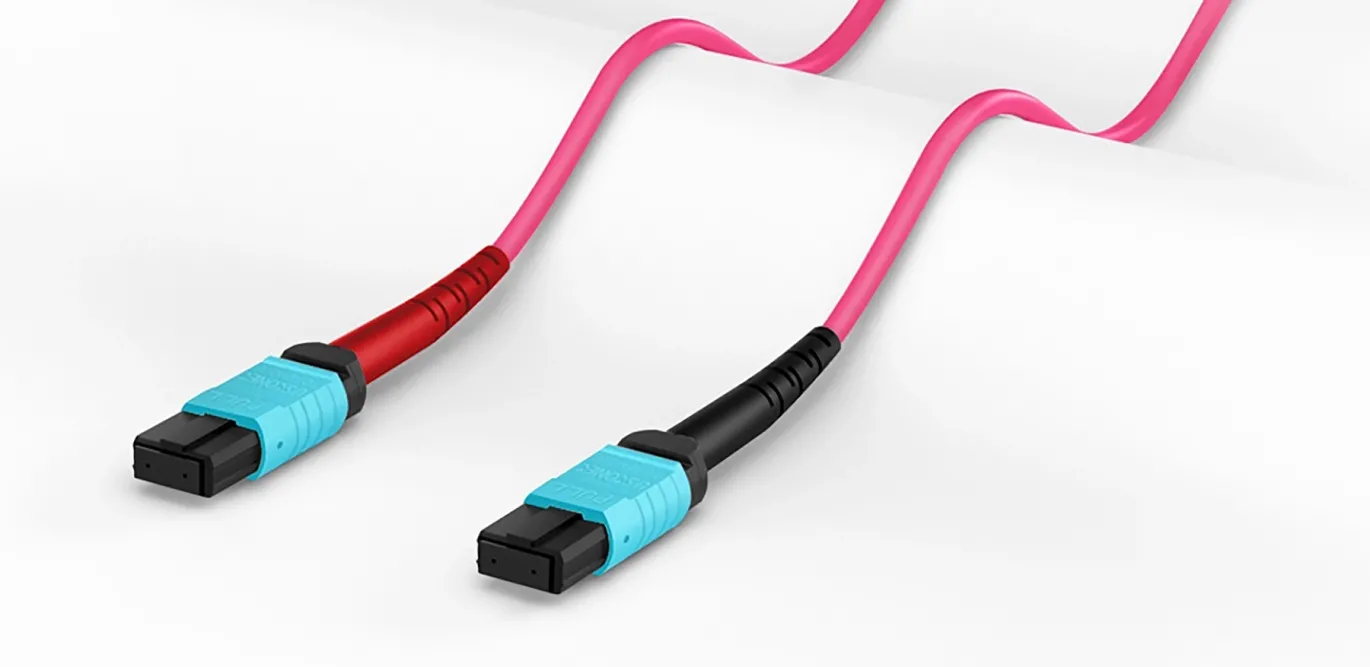

Color-Coded Connector Boots for Easy Identification
Convert from 24 to 12 Fibers for 100% Fiber Utilizations
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
See More
Description

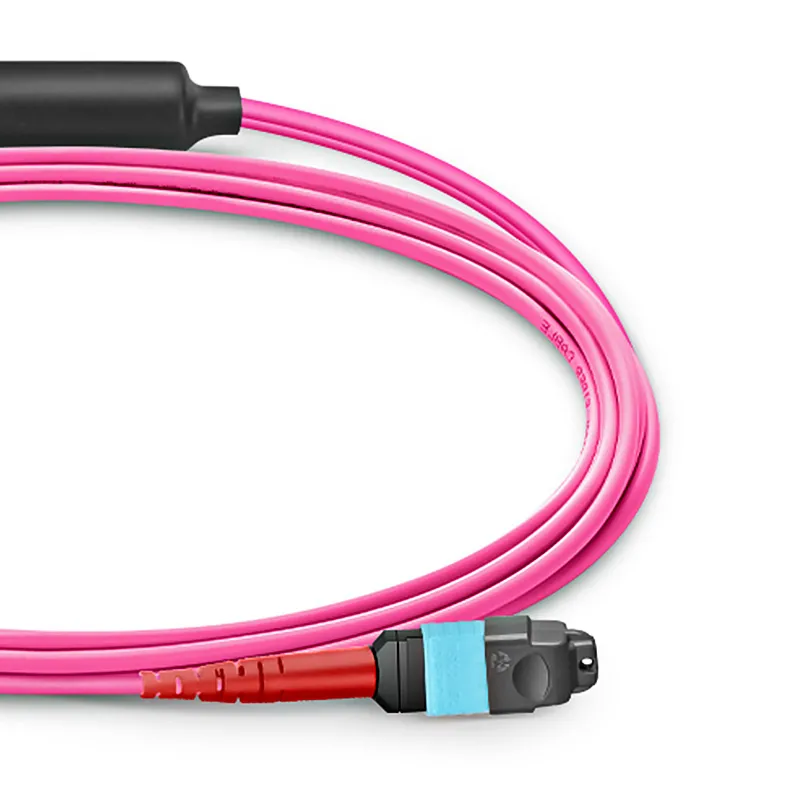

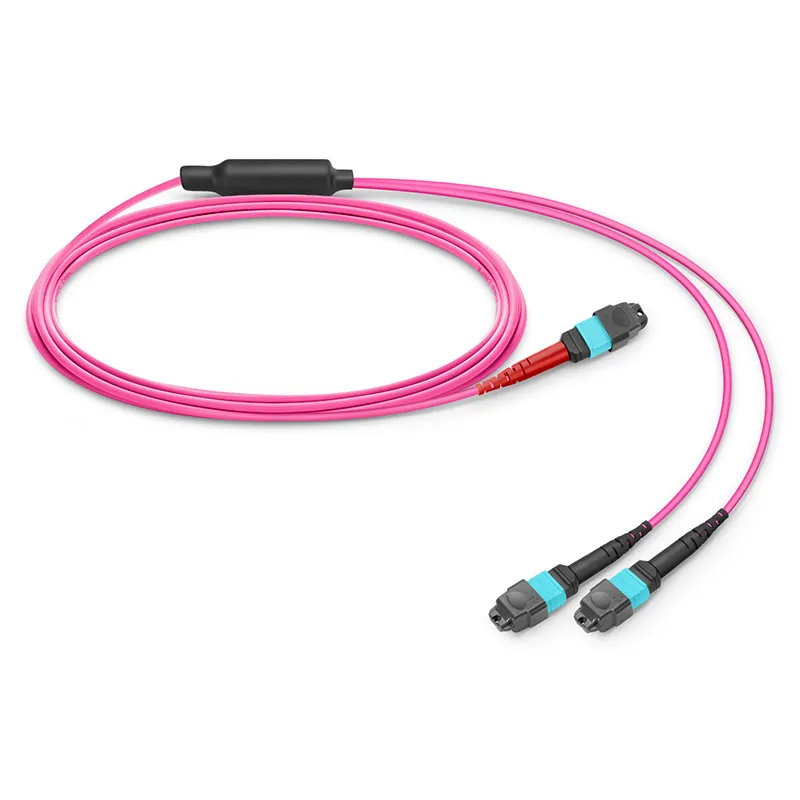

MTP® Breakout cable is designed to provide a more flexible multi-fiber cabling system based on MTP® products. Unlike MTP® harness cable, MTP® Breakout cables are terminated with MTP® connectors on both ends and can provide more possibilities for the existing 24-fiber cabling system.
The 40/100G MTP® Breakout cables eliminate the wasted fibers in current 40G transmission and upcoming 100G transmission. Compared to purchase and install separate Breakout cassettes, using MTP® Breakout cables is a more cost-effective and lower-loss option.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
Specifications
| Fiber Connector | US Conec MTP® | Gender | Female |
| Fiber Mode | OM4 50/125um | Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve® Multimode Fiber | Polish Type | UPC-UPC |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Cable Jacket | Plenum (OFNP) | Minimum Bend Radius | 7.5mm |
| Cable Outside Diameter (OD) | 3.0mm | Breakout Length | 0.5m |
| Installation Tensile Load | 66N | Tensile Strength | 80/240N (Long/Short Term) |
| Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | -10 to 70°C (14 to 158℉) |
Features
Superior Workmanship Guarantees Stable Transmission

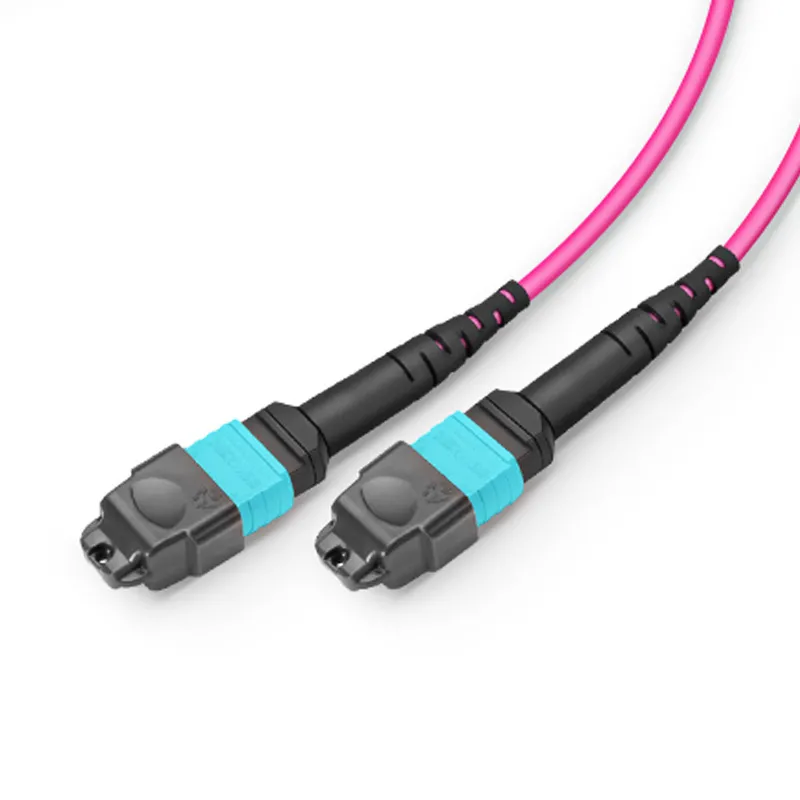

US Conec MTP® Connector
Corning ClearCurve® Multimode Fiber
Plenum (OFNP) Outer Jacket

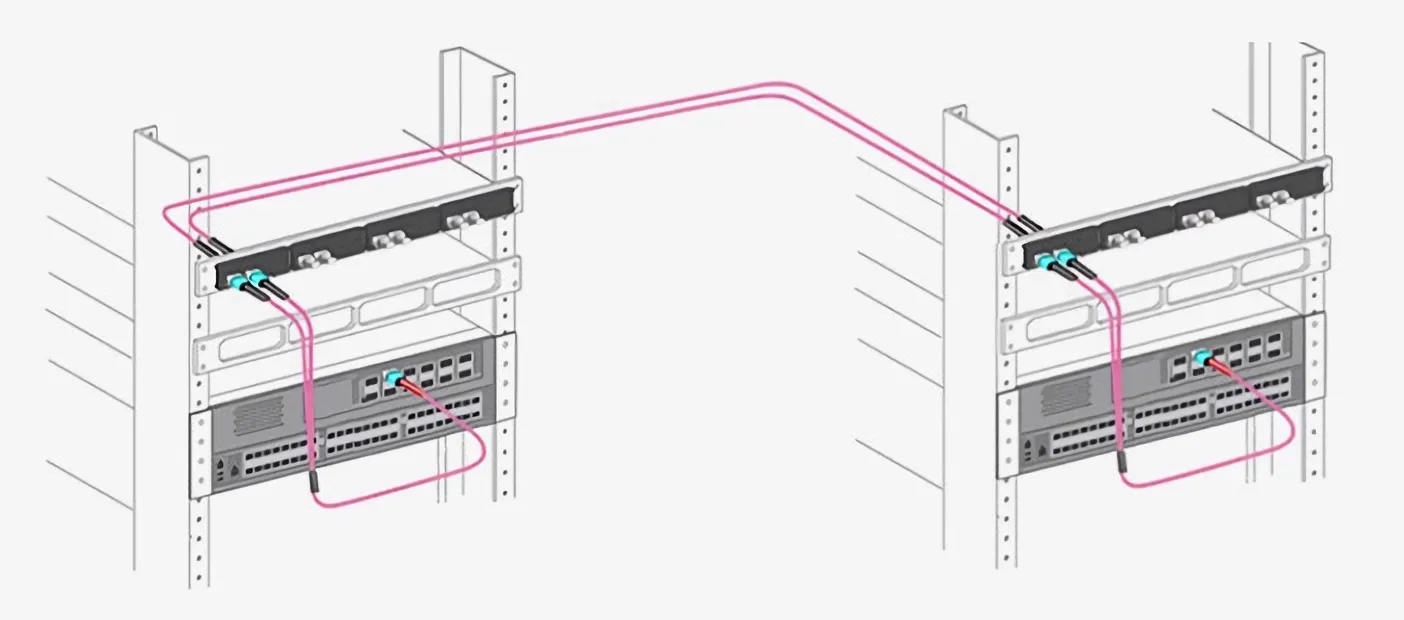

High Density Cabling for Various Environments
Data Centers
Storage Area Networks (SAN)
Communications Rooms
Clean Fiber Means Performance
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
