| Part No. | FJ-MTPA8-4LCD-OS2-8F-TB |
| Product ID | 010304002 |
| MOQ | 1 Piece |
| Lead Time | 7-10 Working Days according to Quantity |
Product Highlights
US Conec MTP® Connector with Optimal 0.35dB Low IL
Corning SMF-28® Ultra Fiber with 10mm Min. Bend Radius
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Color-Coded MTP® Connector Boots for Easy Identification

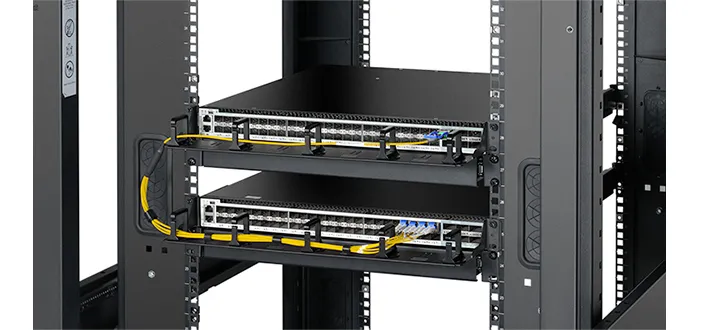

Typically Used for Patching Within a Cabinet
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
See More
Description
The MTP® harnesses allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunks. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
MTP®-8 is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics connection and high-density data center applications.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
Specifications
| Connector A | US Conec MTP® Elite Female (Pinless) | Connector B | LC UPC Duplex |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Glass Fiber | Corning SMF-28® Ultra Fiber | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| MTP Connector IL | 0.35dB Max (0.15dB Typ.) | LC Connector IL | ≤0.2dB |
| MTP Connector RL | ≥60dB | LC Connector RL | ≥50dB |
| Attenuation at 1310nm | ≤0.32dB/km | Attenuation at 1550nm | ≤0.18dB/km |
| Cable Jacket | Plenum (OFNP) | Fiber Count | 8 Fibers |
| Cable Outside Diameter (OD) | 3.0mm | Breakout Outside Diameter (OD) | 2.0mm |
| Installation Tensile Load | 66N | Tensile Strength | 80/240N (Long/Short Term) |
| Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | -10 to 70°C (14 to 158℉) |
*MTP is a registered trademark of US Conec Ltd. US Conec and FUTURE CABLING partner on supplying high performance MTP series products.
Features
Superior Workmanship Guarantees Stable Transmission

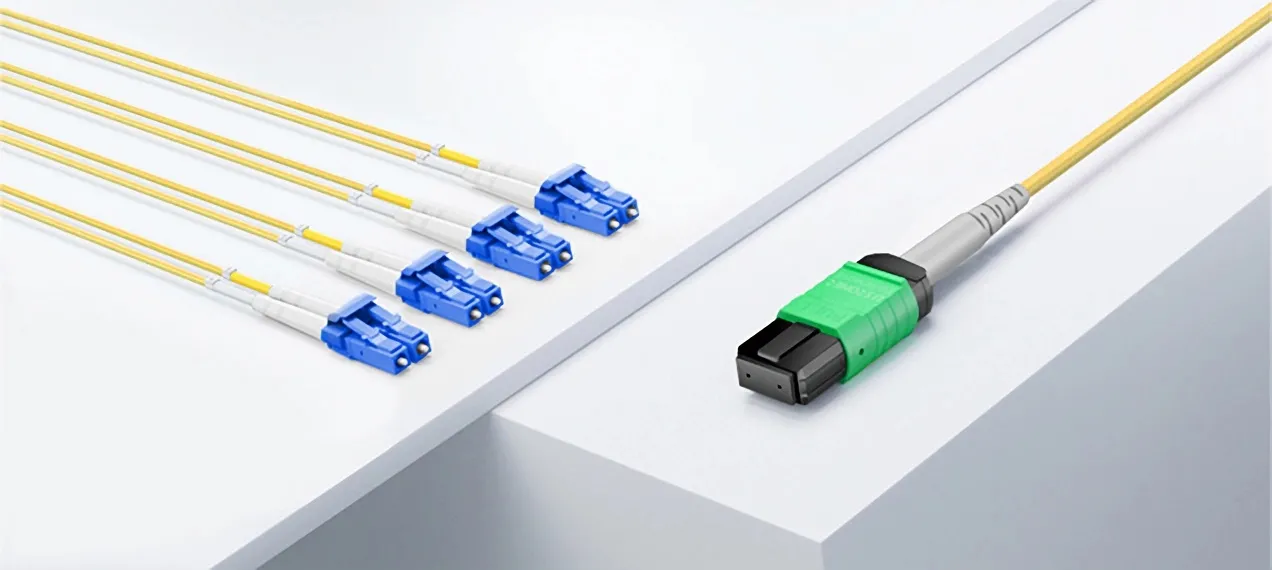

US Conec MTP® Connector
Corning SMF-28® Ultra Fiber
Plenum (OFNP) Outer Jacket
High Density Cabling for Various Environments
Data Centers
Storage Area Networks (SAN)
Communications Rooms
Simplify the Network Upgrade with a Plug-in
Clean Fiber Means Performance
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
