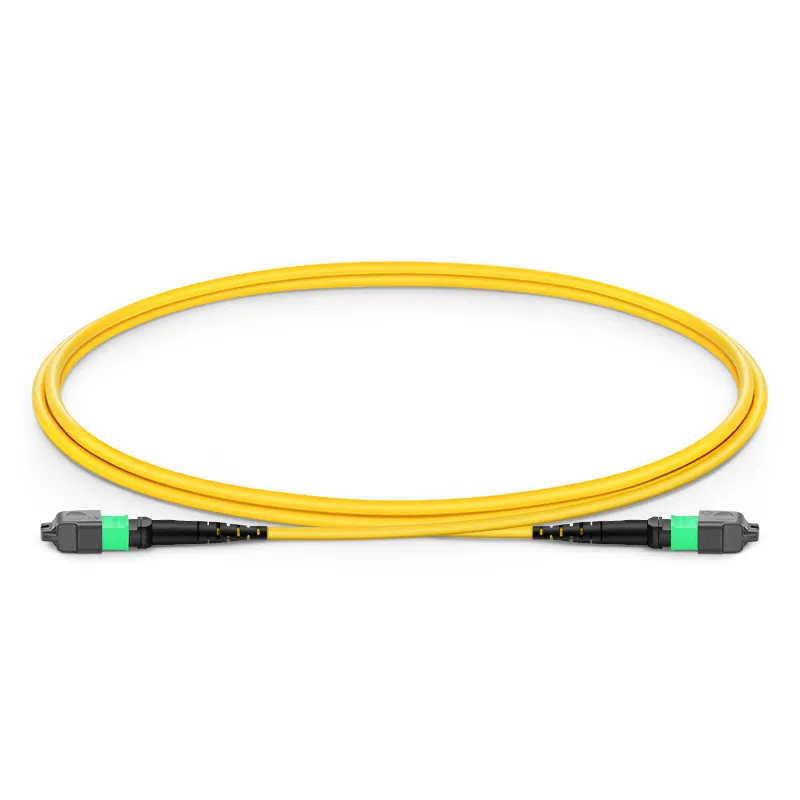

| Part No. | FJ-MTPA-MTPA-OS2-12F-TB |
| Product ID | 010301002 |
| MOQ | 1 Piece |
| Lead Time | 7-10 Working Days according to Quantity |
Product Highlights
US Conec MTP® Connector with Optimal 0.35dB Low IL
Corning SMF-28® Ultra Fiber with 10mm Min. Bend Radius
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Color-Coded Connector Boots for Easy Identification
Typically Used for Patching Within a Cabinet
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
See More
Description
MTP® jumpers, allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Due to the MTP®-12 also supporting MTP®-8 fiber systems, it is also ideal for 8-fiber parallel single mode optical transceivers applications, such as 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4, and 400G QSFP-DD DR4/XDR4 optics connection.
Please note: US Conec supplies a full suite of MPO connectors of MTP® brands for FS. The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
Specifications
| Connector A | US Conec MTP® Elite Female (Pinless) | Connector B | US Conec MTP® Elite Female (Pinless) |
| Polish Type | APC to APC | Glass Fiber | Corning SMF-28® Ultra Fiber |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Fiber Count | 12 Fibers | Polarity | Type B |
| Cable Outside Diameter (OD) | 3.0mm | Cable Jacket | Plenum (OFNP) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 500 times | Tensile Strength (Long/Short Term) | 80/240N |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥60dB |
| Attenuation at 1310nm | ≤0.32dB/km | Attenuation at 1550nm | ≤0.18dB/km |
| Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | -10 to 70°C (14 to 158℉) |
Features

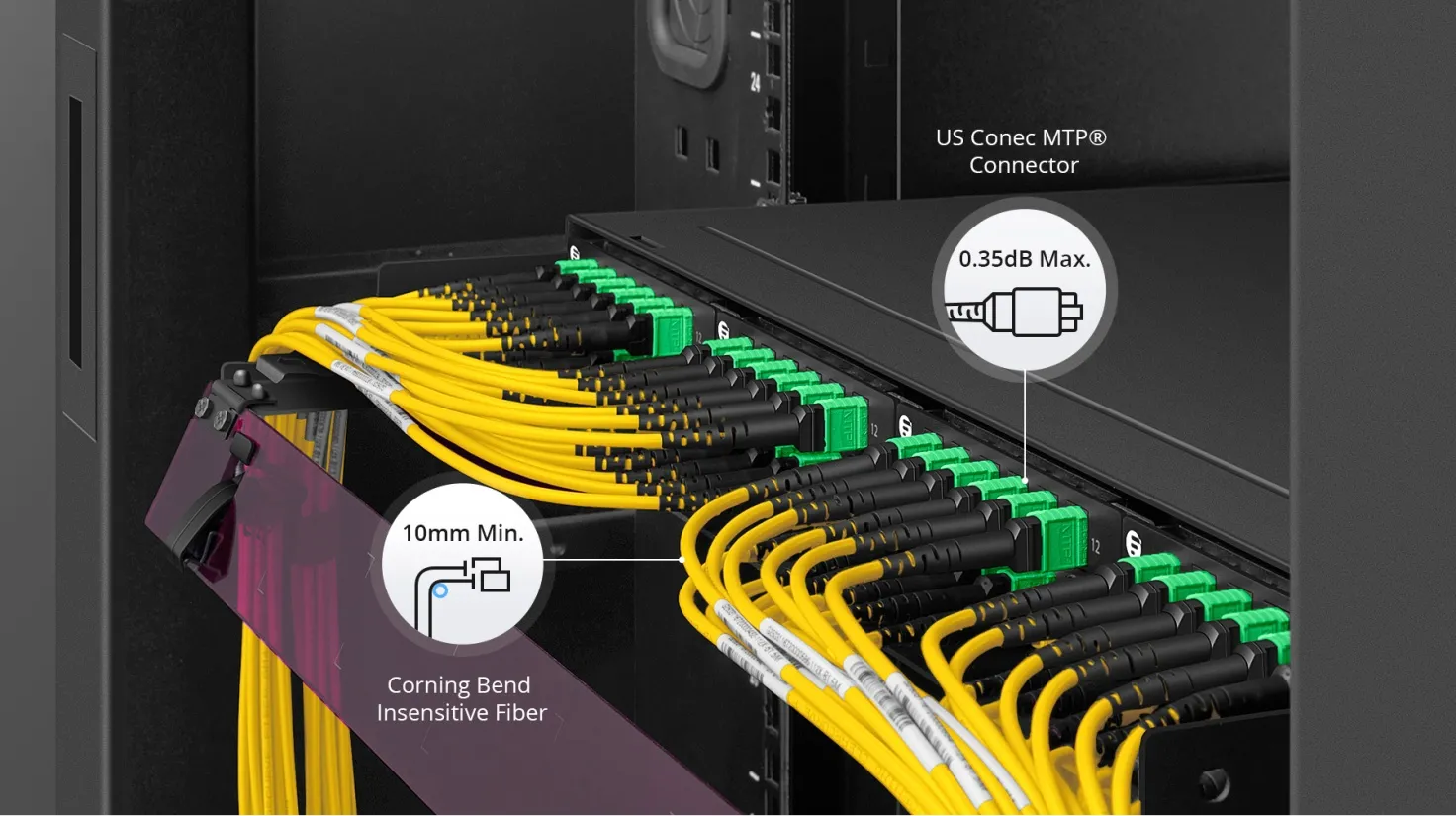

Superior Workmanship Guarantees Stable Transmission

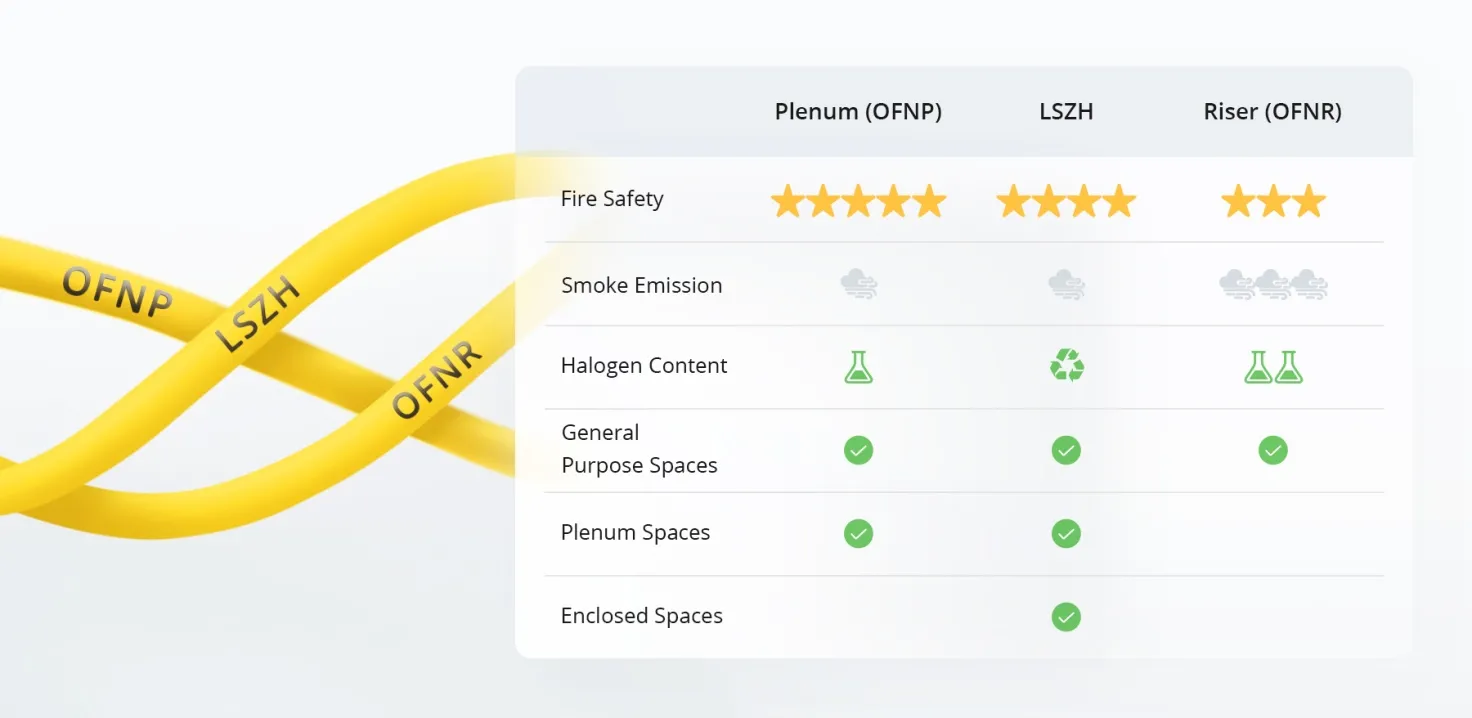

Plenum Jacket, The Highest Fire Safety-Rated

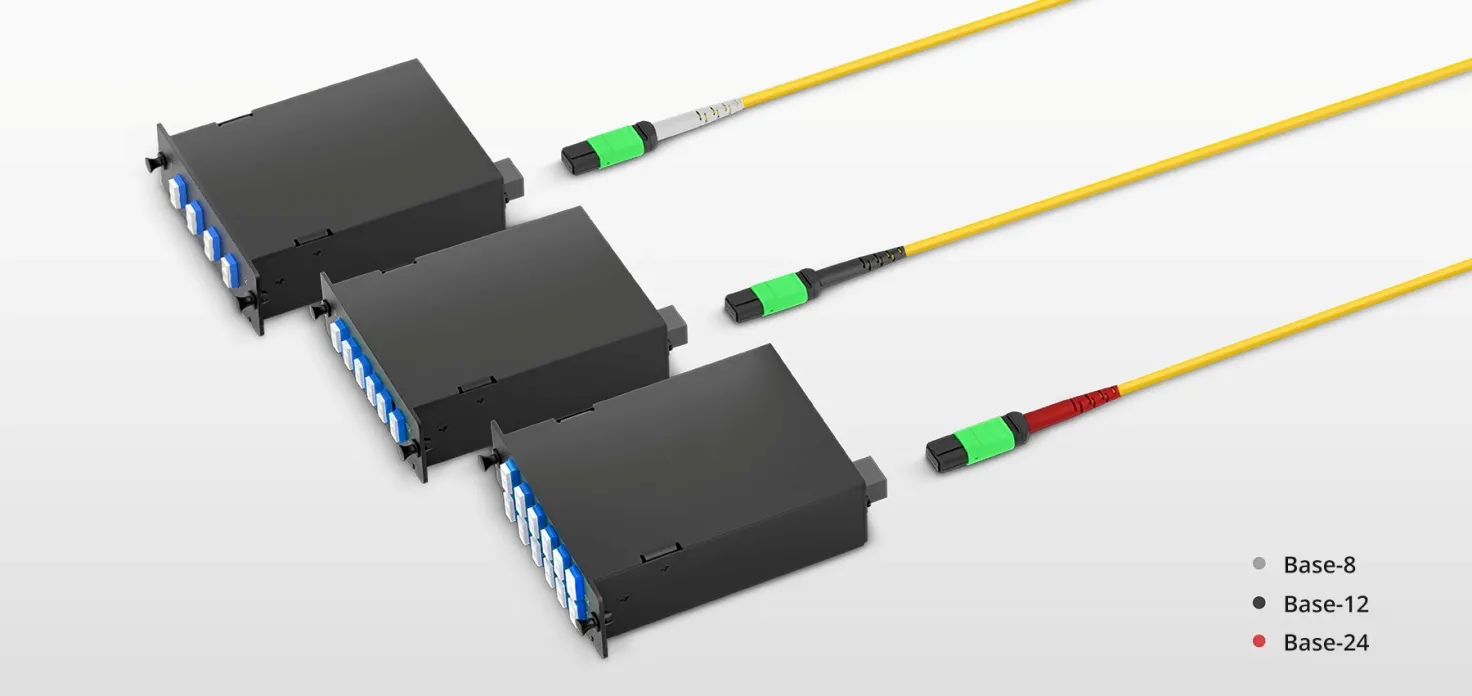

Color-Coded Connector Boots for Easy Identification

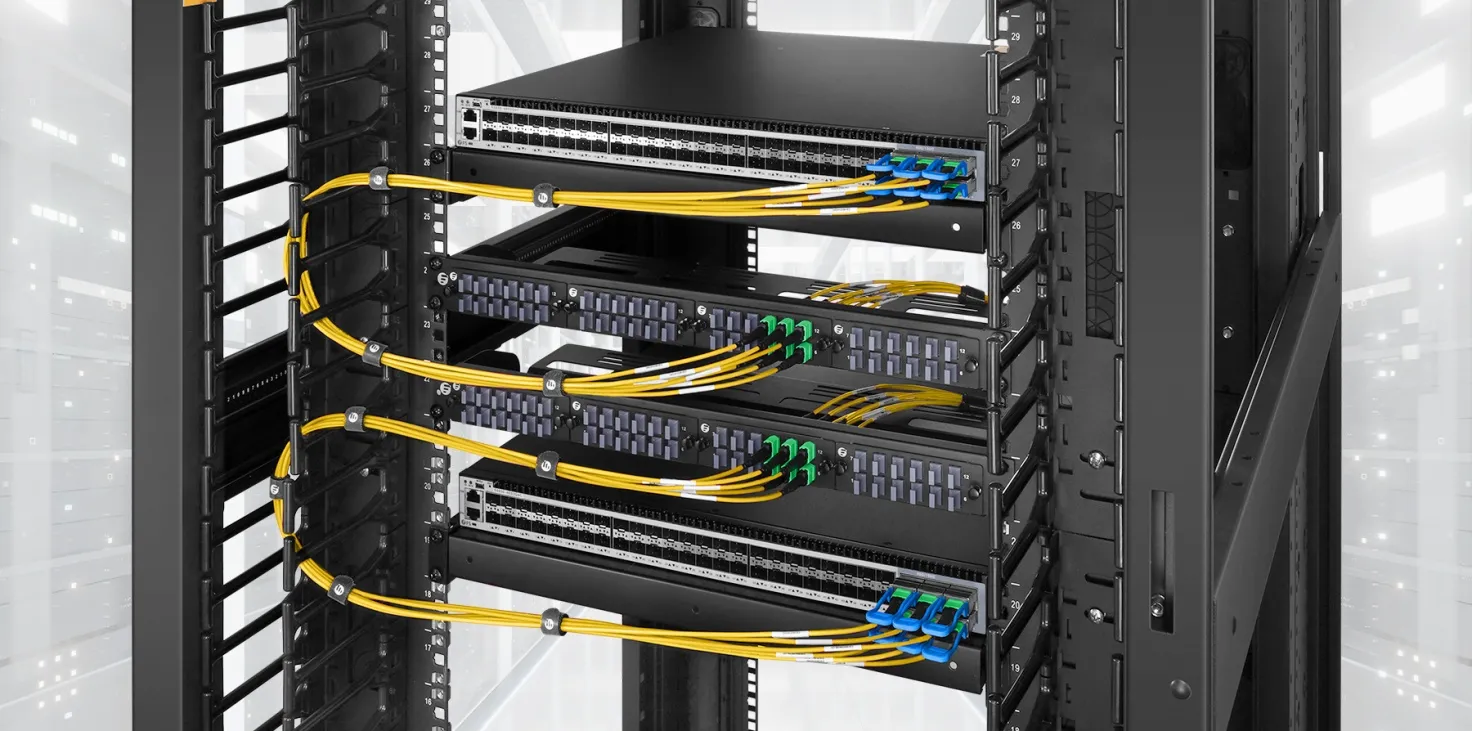

High Density Cabling for Various Environments
Data Centers
Storage Area Networks (SAN)
Communications Rooms
Clean Fiber Means Performance
Cleaning MTP®/MPO connectors with IBC MPO cleaner.
Cleaning MTP®/MPO connectors with cassette cleaner.
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
