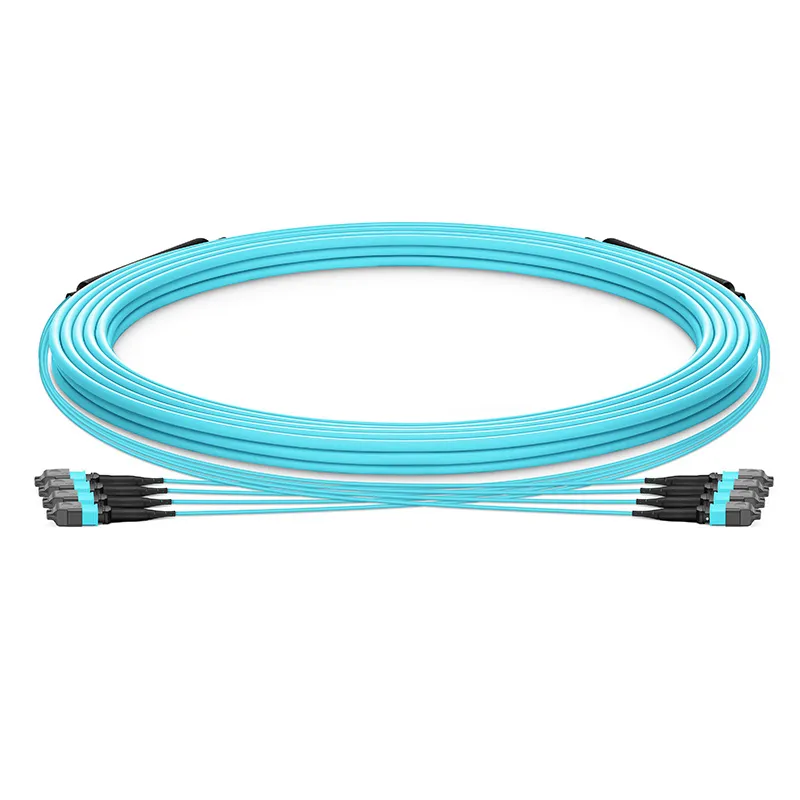

| Part No. | FJ-4MTP12-4MTP12-OM3-48F-TB |
| Product ID | 010303003 |
| MOQ | 100 Pieces or total cable length ≥ 500 Meters |
| Lead Time | 7-10 Working Days according to Quantity |
Product Highlights

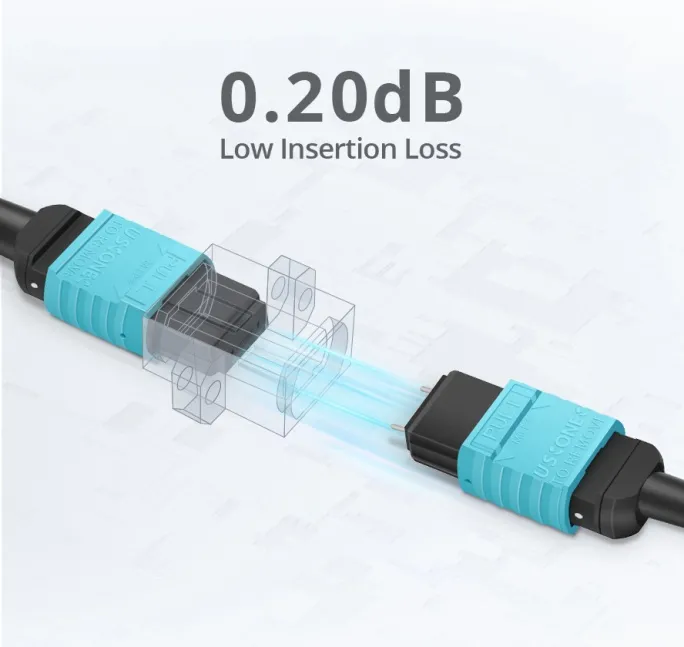

US Conec MTP® Connector with Optimal 0.20dB Low IL
Corning ClearCurve® Multimode Fiber with 7.5mm Min. Bend Radius
2.0mm Small-diameter Breakout Saves Space for High-density Cabling
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Color-Coded Connector Boots for Easy Identification
For Longer Distances in Cabinet-to-Cabinet Applications
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
See More
Description
MTP® trunks are factory pre-terminated and rigorously tested, coming with reliable MTP®-MTP® or MTP®-LC Uniboot connectors. Ultra-low loss MTP® connectors can reduce signal loss during transmission to support long-distance transmissions and multiple connection areas. The robust double-jacket sheath enhances crush resistance, ensuring durability and performance over long-distance runs. These features make MTP® trunks an ideal choice for high-density cabling in data centers, widely used in main, horizontal, and zone distribution areas.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors..
Specifications

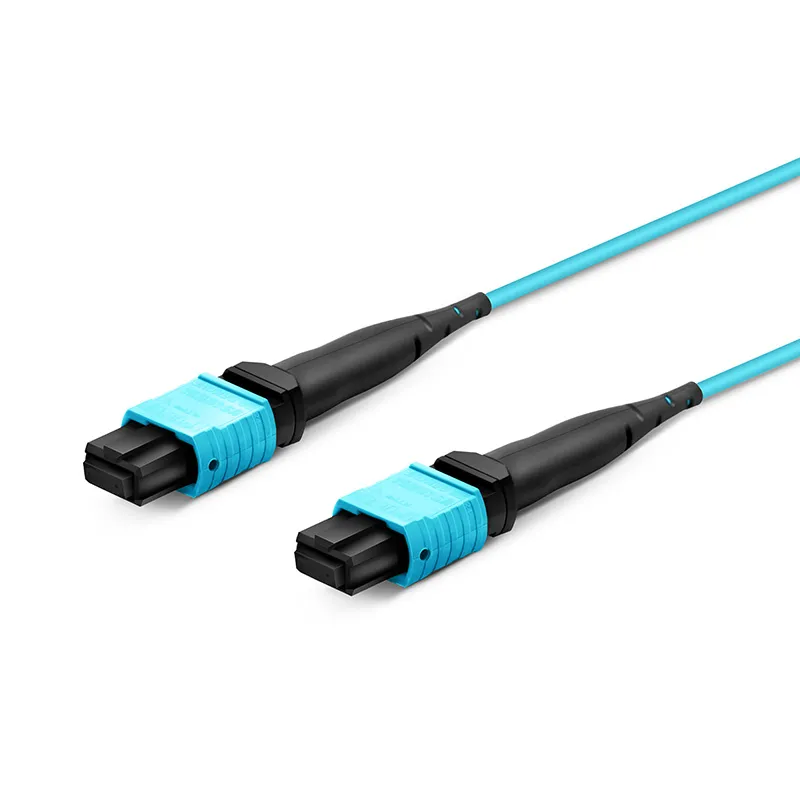

| Connector A | US Conec MTP® Elite Female (Pinless) | Connector B | US Conec MTP® Elite Female (Pinless) |
| Fiber Mode | OM3 50/125μm | Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve® Multimode Fiber | Minimum Bend Radius | 7.5mm |
| Polish Type | UPC-UPC | Polarity | Type B |
| Cable Jacket | Plenum (OFNP) | Cable Structure | Double Jacket |
| Fiber Count | 48 Fibers (Base-12) | Breakout Length | 0.5m |
| Cable Outside Diameter (OD) | 8.5-9.0mm | Breakout Outside Diameter (OD) | 2.0mm |
| Insertion Loss | 0.20dB Max | Return Loss | ≥20dB |
| Attenuation at 850nm | ≤3.5dB/km | Attenuation at 1300nm | ≤1.5dB/km |
| Long-term Tensile Load | 200N | Short-term Tensile Load | 660N |
| Operating Temperature | -10 to 60°C (14 to 140°F) | Storage Temperature | -10 to +70°C (14 to 158℉) |
*MTP is a registered trademark of US Conec Ltd. US Conec and FUTURE CABLING partner on supplying high performance MTP series products.
Features
Double Jacket Sheath Protects Network Connection Further

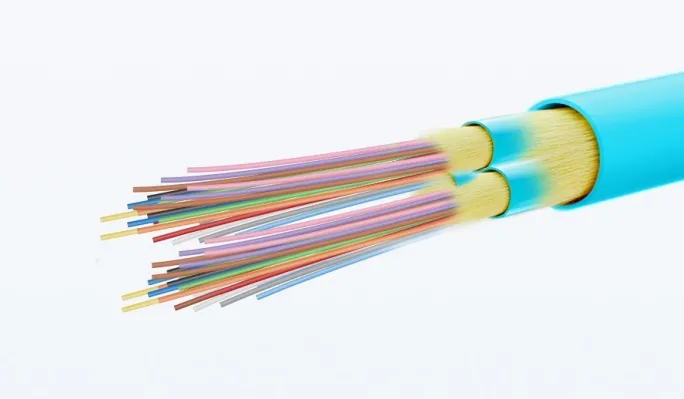

Structural Diagram
Cross-section Diagram
Superior Workmanship Guarantees Stable Transmission

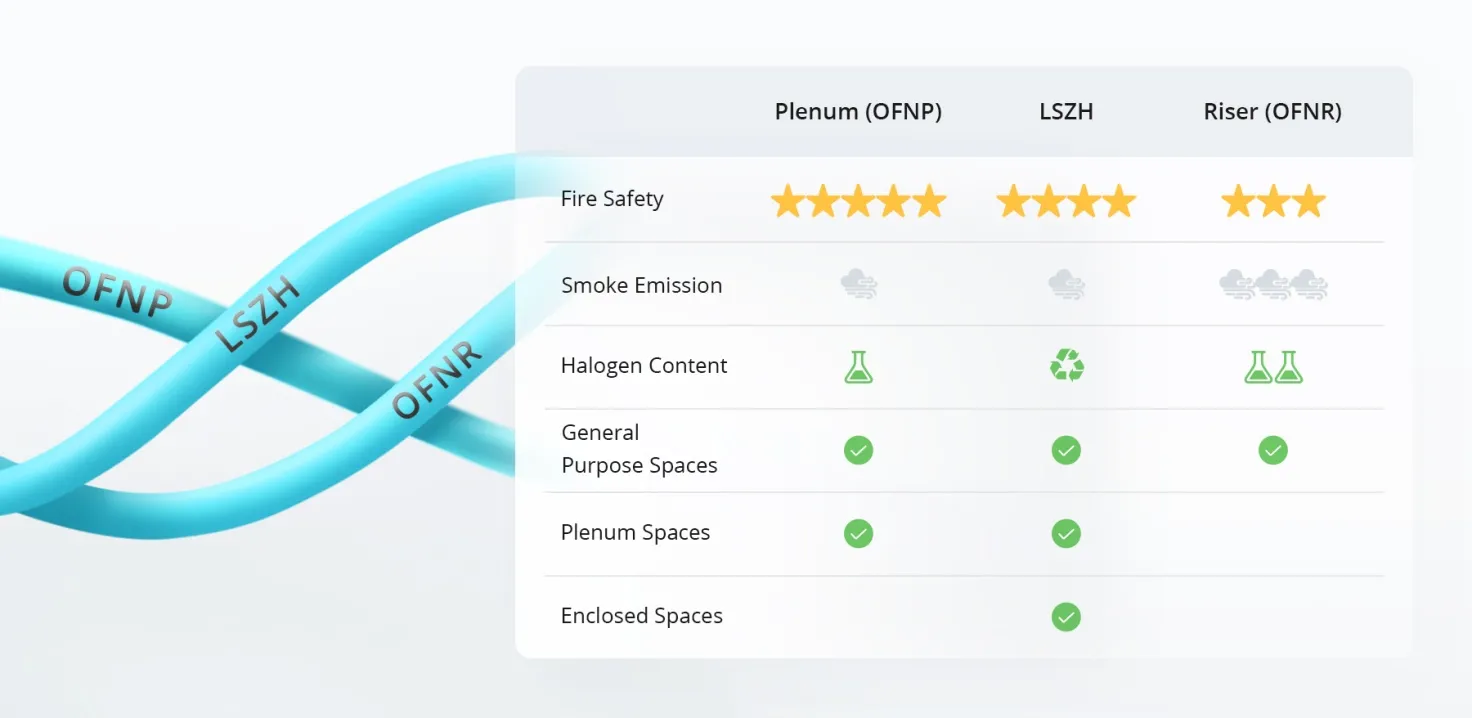

Plenum Jacket, The Highest Fire Safety-Rated
Color-Coded Connector Boots for Easy Identification
MTP®-8 to 4 x LC Duplex Application
MTP®-12 to 6 x LC Duplex Application

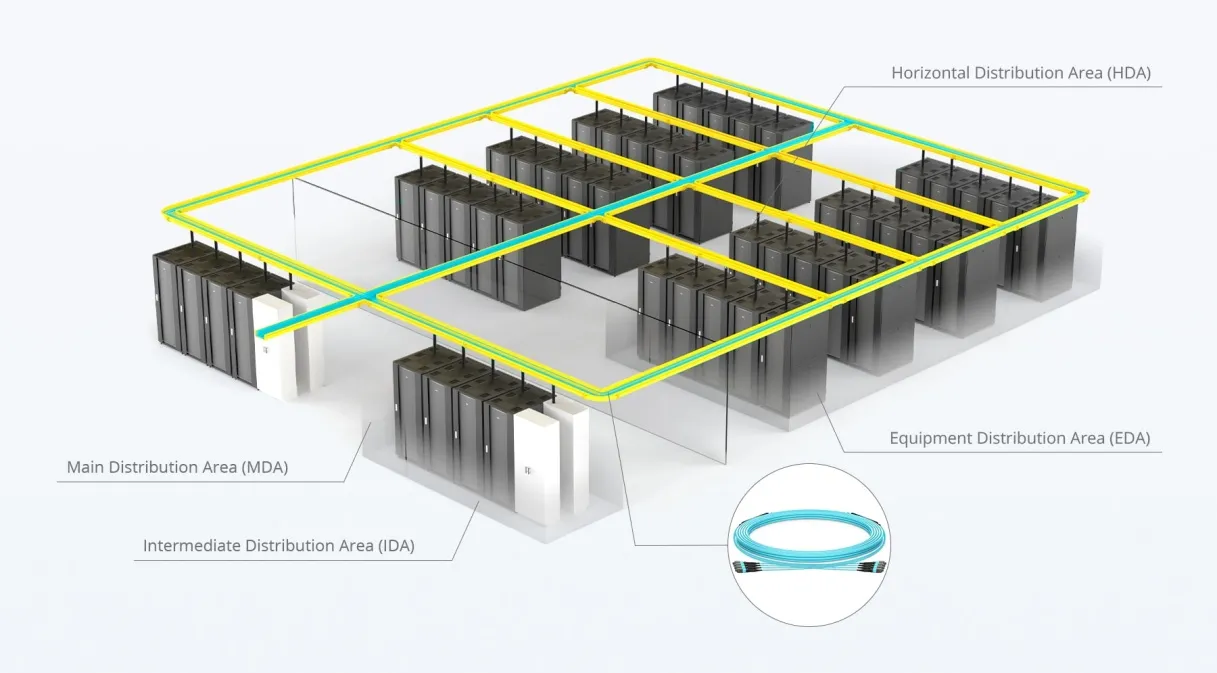

High Density Cabling for Various Environments
Clean Fiber Means Performance
Cleaning MTP®/MPO connectors with IBC MPO cleaner.
Cleaning MTP®/MPO connectors with cassette cleaner.
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
