| Part No. | FJ-LCU-LCU-OS2-24F-BC2.0 |
| Product ID | 010404010 |
| MOQ | 1 Piece |
| Lead Time | 7-10 Working Days according to Quantity |
Product Highlights
Riser (OFNR) Flame-retardant Jacket
Precision Zirconia Ferrule Connectors Ensure Low Loss
Duplex Clip Prevents the Fiber from Rotating and Maintains the Polarity
G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
Optical Testing Ensures Network Performance
The Connector Meets EIA/TIA 604-2 for High Speed Cabling Networks

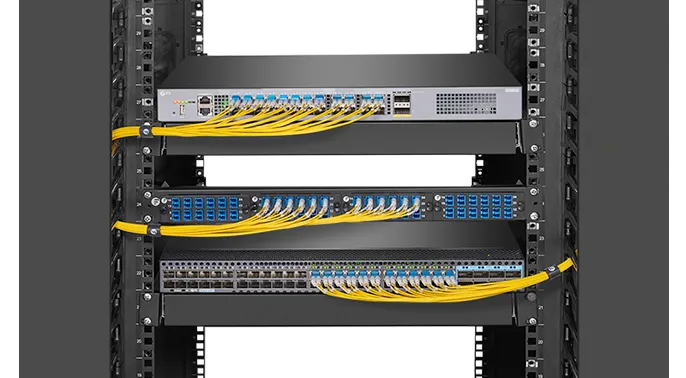

Indoor Connection Between Transmission Equipment and Patch Panels
See More

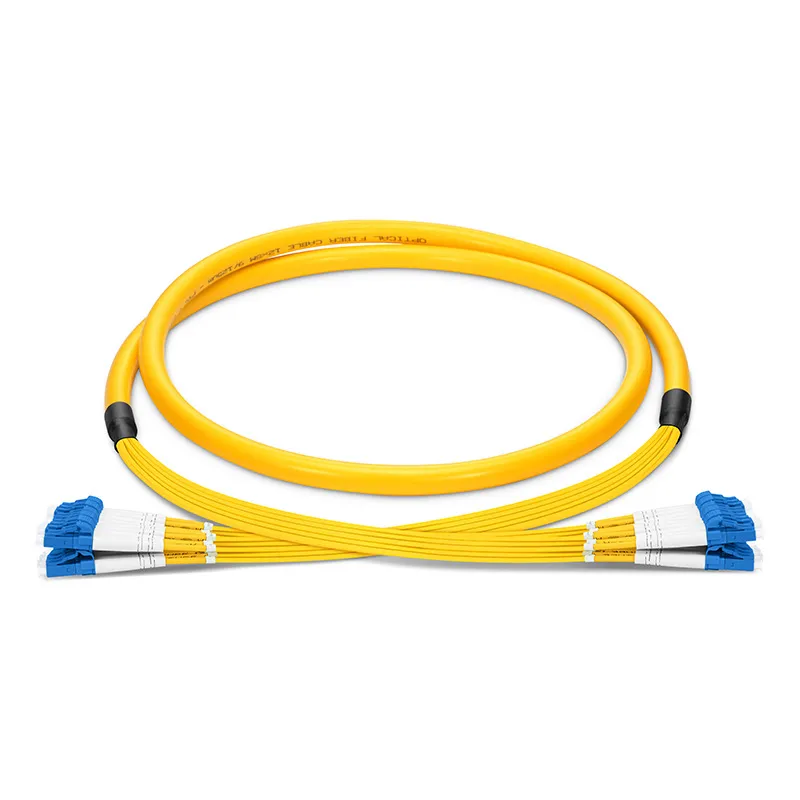

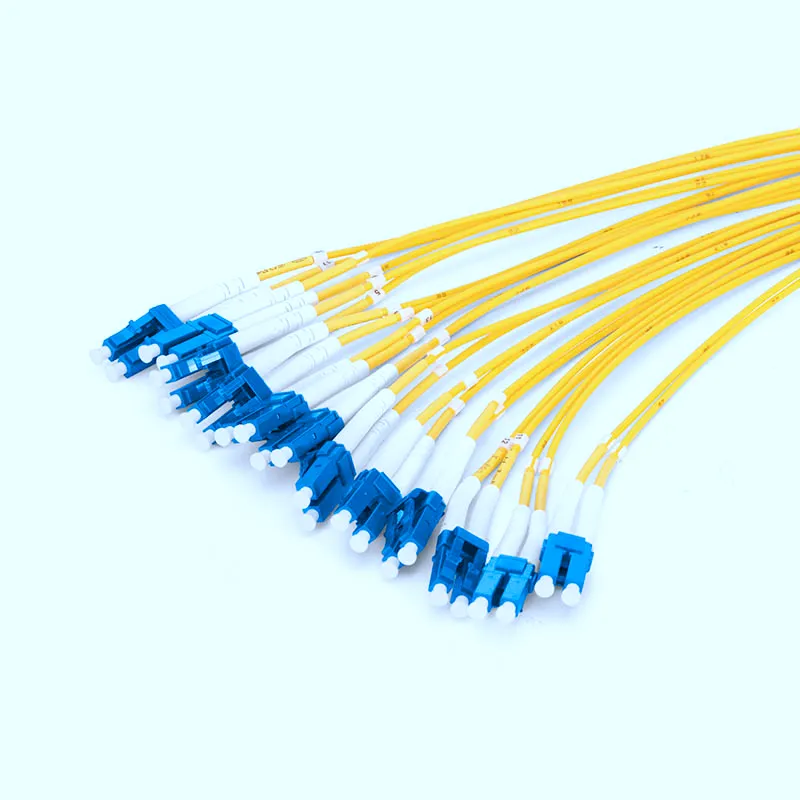

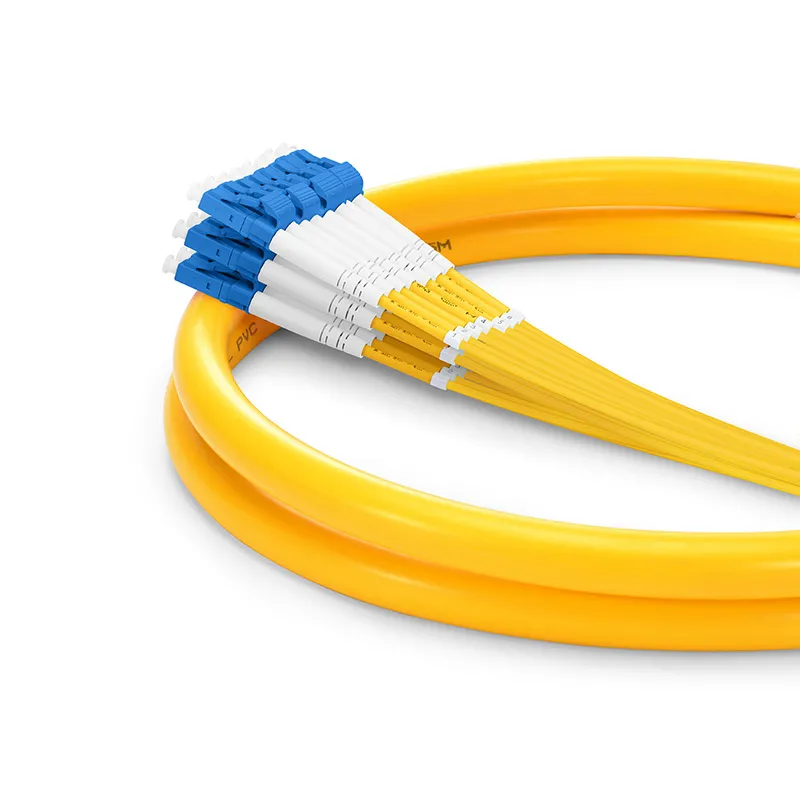

Description
Indoor multi-fiber breakout cable is a low-cost, pre-assembled cable designed primarily for indoor interconnection between transmission equipment and patch panels or similar fixed routes. The fiber optic cable has industry standard flammability rating jacket and the connector meets EIA/TIA 604-2 for high speed cabling networks.
Specifications
| Connector Type | LC Duplex | Polish Type | UPC |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Fiber Count | 24 Fibers | Cable Jacket | Riser(OFNR) |
| Fiber Grade | G.657.A1 | Min. Bend Radius | 20/10D (Dynamic/Static) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Attenuation at 1310nm | 0.36 dB/km | Attenuation at 1550nm | 0.22 dB/km |
| Breakout Outside Diameter (OD) | 2.0mm | Trunk Outside Diameter (OD) | 15.0-16.0mm |
| Breakout Type | 0.5m Equal Breakout | Polarity (Duplex) | A (Tx) to B (Rx) |
| Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | -20 to 70°C (-4 to 158°F) |
Features
Carrier-grade Cable Ensures Transmission Quality
10/5D Min. Bend Radius
Breakout Kit
Duplex Clip
Precautions for Use
First
Second
Third
Meet the Various Indoor Installation Needs

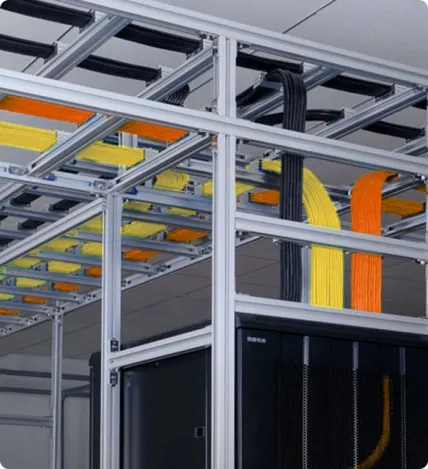

Ceiling Application

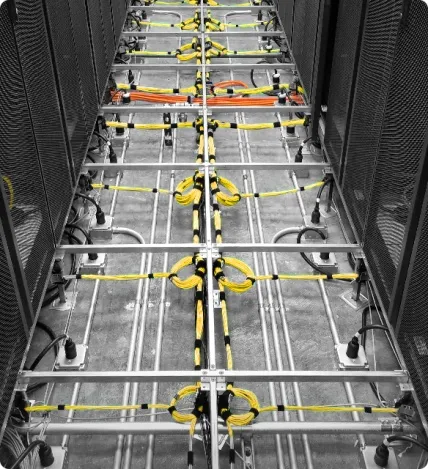

Floor Application

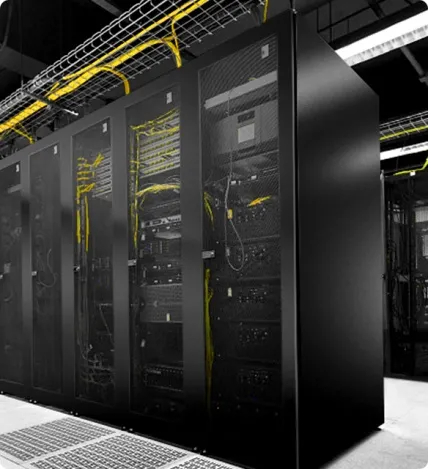

In-cabinet Application
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
