| Part No. | FJ-LCU-LCU-OM3-DX-SB-2.0 |
| Product ID | 010105003 |
| MOQ | 1 Piece |
| Lead Time | 5-7 Working Days according to Quantity |
Product Highlights
60% Shorter Boot, and 30% Reduced Connector Length
Bend Insensitive Fiber & 7.5mm Min. Bend Radius
Precision Zirconia Ferrule Connectors Ensure Low Loss
Flame-Retardant Riser (OFNR) for Vertical and Floor-to-floor Installations
Color-Coded Cable Jacket for Easy Identification
Pre-terminated Cable Allows for Implementing Plug & Play Solutions
Exceptional Performance in a Data Center, Telecommunication Networks, or an Enterprise Setting
See More
Description
The short boot structure is particularly for high density applications with tight space requirements. When used with bend insensitive fiber, the attenuation during bending or twisting can be reduced and this will make the installation and maintenance of the fiber optic cables more efficient. Therefore, it can be used in central offices, passive optical networks (PON), FTTx, data centers, and any places.
This OM4 fiber patch cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers, etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.
Specifications
| Connector A | LC UPC Duplex | Connector B | LC UPC Duplex |
| Fiber Count | 2 Fibers | Fiber Grade | Bend Insensitive |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| Boot Type | 12mm Short Boot | Jacket Color | Aqua |
| Polarity | A (Tx) to B (Rx) | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm | Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength (Long/Short Term) | 90/150N |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Attenuation at 850nm | 3.5dB/km | Attenuation at 1300nm | 1.5dB/km |
| Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -20 to 70°C (-4 to 158℉) |
Features
Build a Stable and Robust Fiber Optic Network
Structural Diagram
Cross-section Diagram
Carrier-grade Cable Ensures Transmission Quality

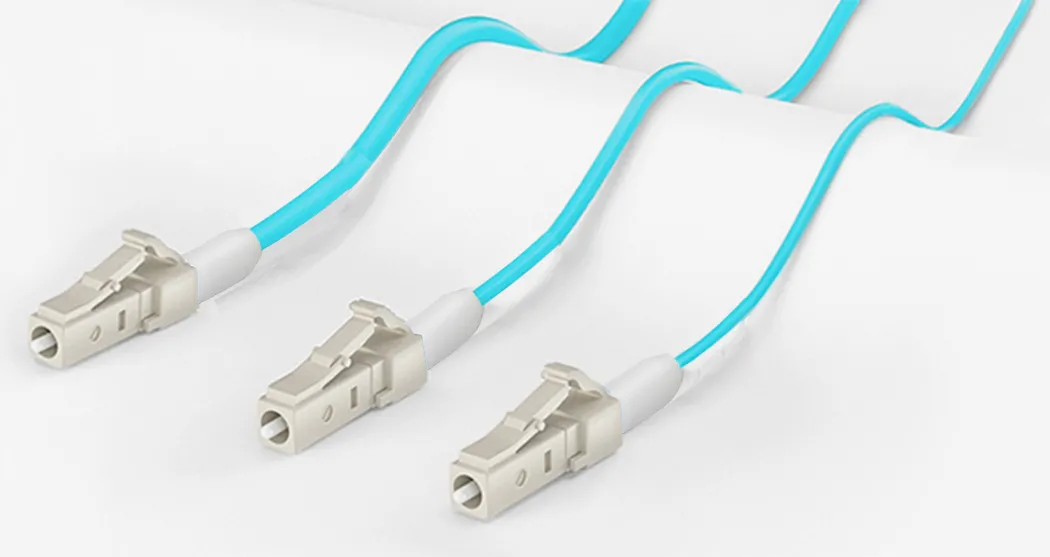

12mm Short Boot Structure
No Heat Shrink Tube Design
Carrier-grade Cable Ensures Transmission Quality
Color-Coded Cable Jacket for Easy Identification
Orange
Aqua
Lime Green
Yellow
Connector Color Information
Three Jacket Materials Used in Diverse Cabling Zone
| Plenum (OFNP) Jacket | Riser (OFNR) Jacket | LSZH Jacket | |
| Flammability | Low | Medium | High |
| Toxicity/Corrosive Level | None | High | Low |
| Plenum Areas & Air Ducts |  | / | / |
| Riser Areas | | | / |
| Open Areas | | | / |
| Enclosed Areas & Indoors | | / | |
| Crowded Areas | | / | |
Three Diameters to Meet Different Wiring Needs
3.0mm, 2.0mm and 0.9mm
2.0mm Diameter
0.9mm Diameter
Technical Drawing

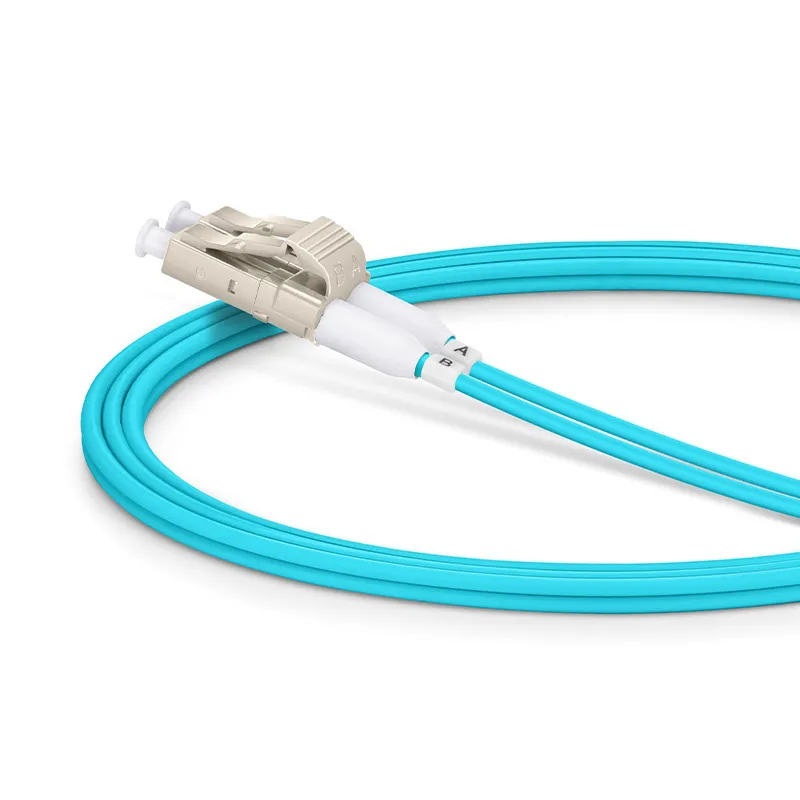

Fiber Polarity
A-to-B Fiber Polarity Commonly Used in Fiber Applications

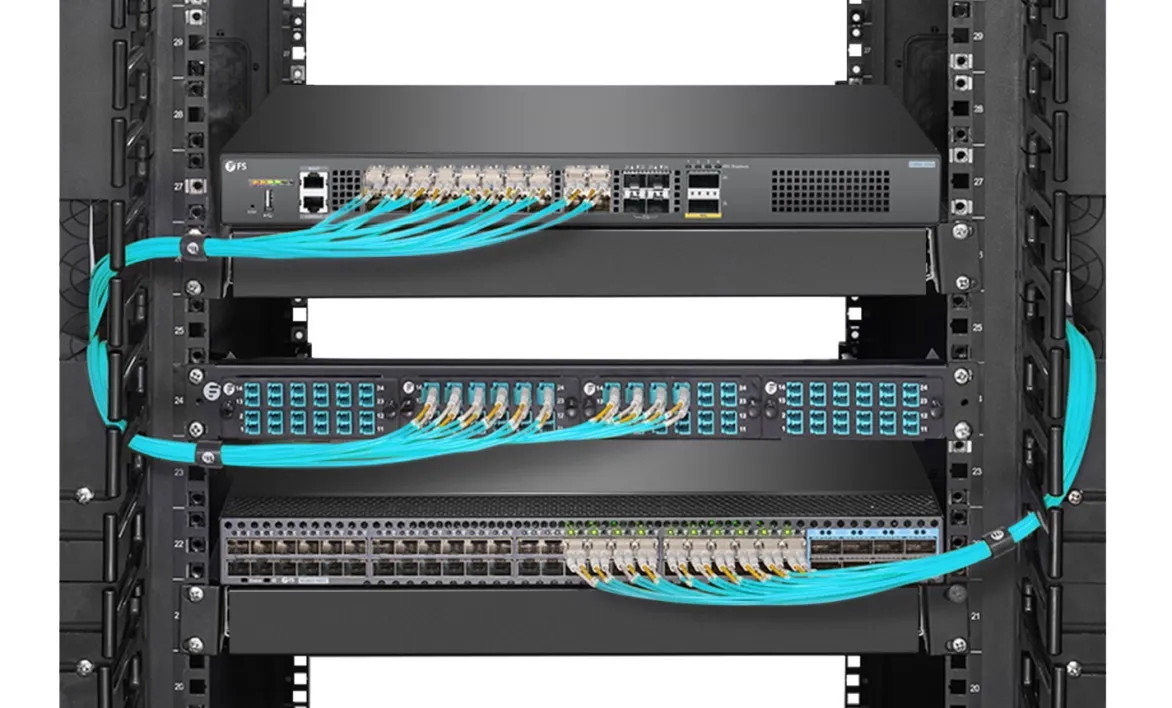

Provide Interconnect and Cross-connect of Application

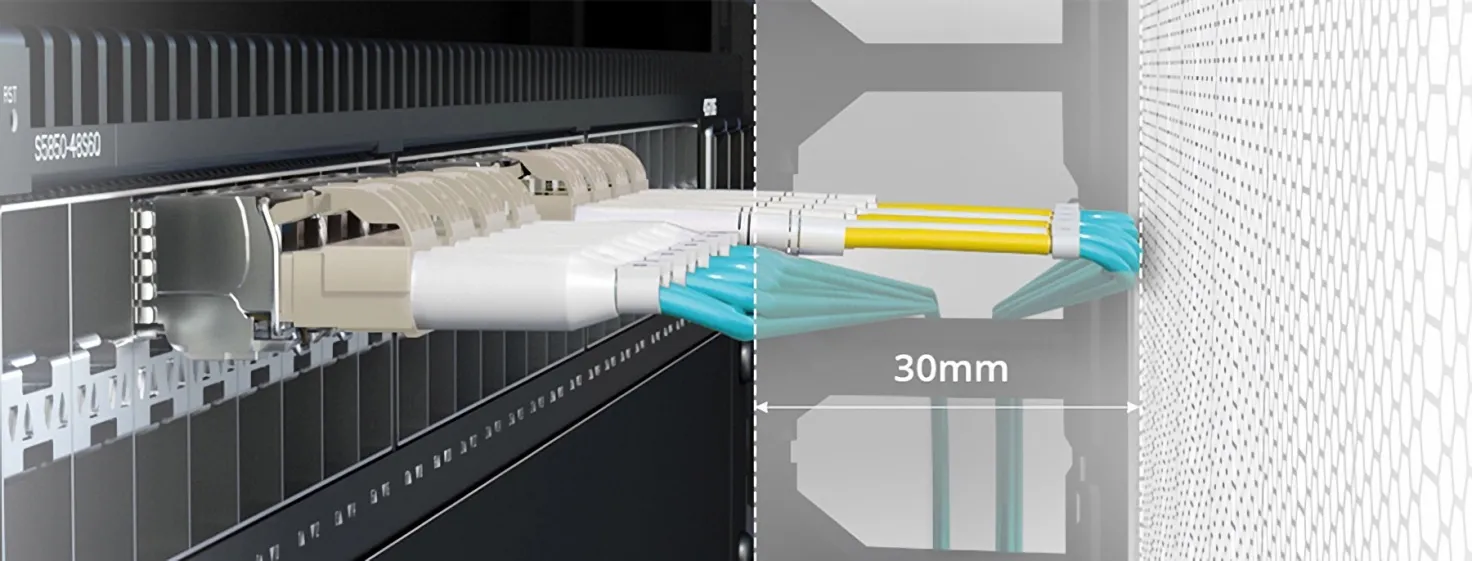

30mm Space Saving in Tight Space
Meet the Various Indoor Installation Needs
Ceiling Application
Floor Application
In-cabinet Application
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
