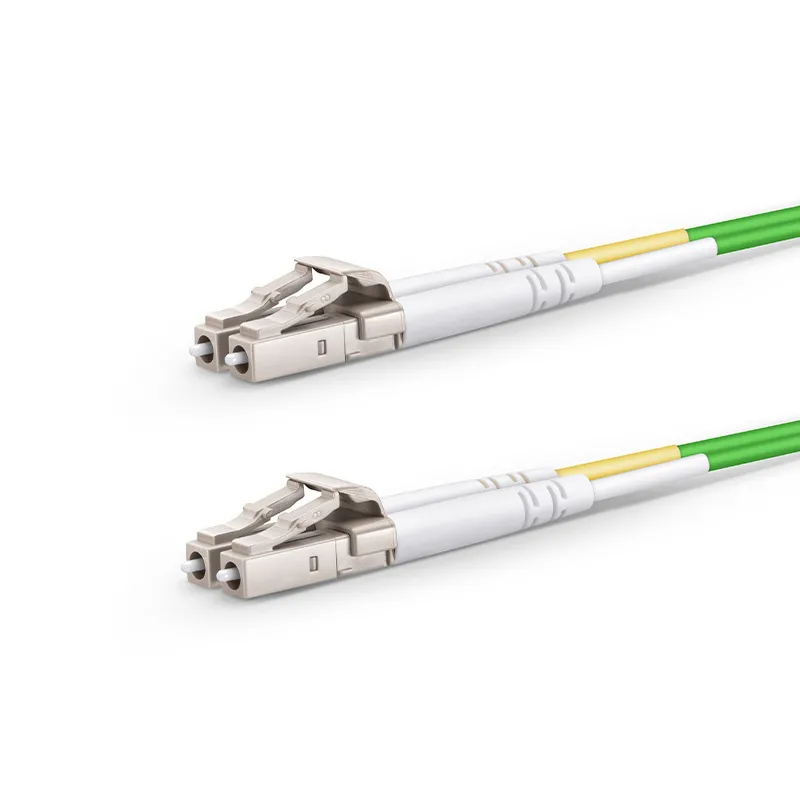

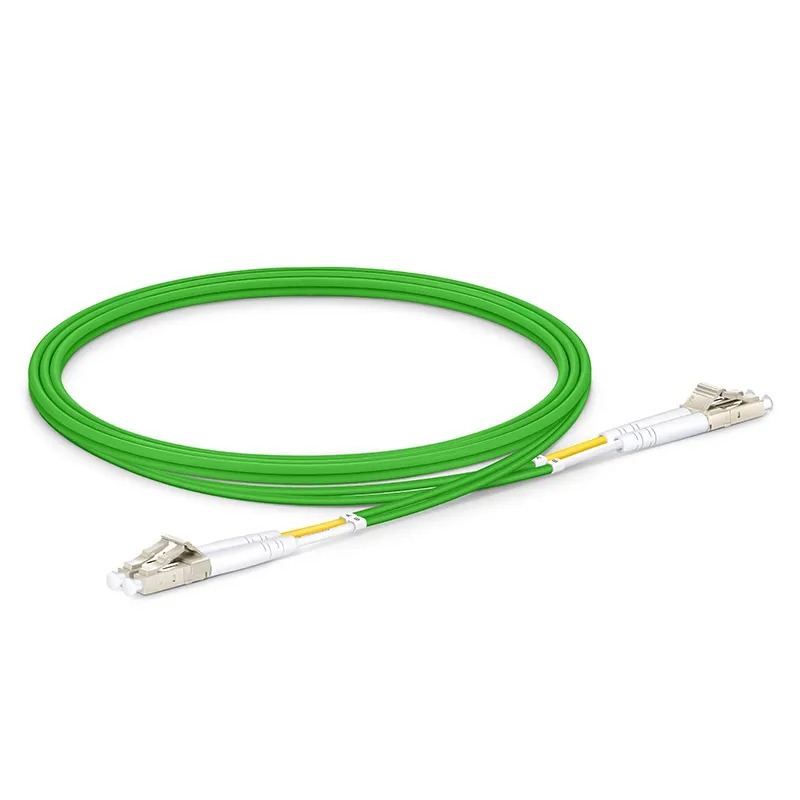

| Part No. | FJ-LCU-LCU-OM5-DX-2.0 |
| Product ID | 010106001 |
| MOQ | 1 Piece |
| Lead Time | 5-7 Working Days according to Quantity |
Product Highlights
Bend Insensitive Fiber & 7.5mm Min. Bend Radius
Precision Zirconia Ferrule Connectors Ensure Low Loss
Flame-Retardant Riser (OFNR) for Vertical and Floor-to-floor Installations
Color-Coded Cable Jacket for Easy Identification
A WBMMF Solution Supports at Least 4 Wavelengths
Pre-terminated Cable Allows for Implementing Plug & Play Solutions
Exceptional Performance in a Data Center, Telecommunication Networks, or an Enterprise Setting
See More
Description
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.
This OM5 fiber patch cable meets TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements while completely backward compatible with existing OM4 networks and applications.
The bend insensitive fiber patch cable for multi-wavelengths transmission systems operating in the range of 850-953nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.
Specifications
| Connector A | LC UPC Duplex | Connector B | LC UPC Duplex |
| Fiber Count | 2 Fibers | Fiber Grade | Bend Insensitive |
| Fiber Mode | OM5 50/125μm | Wavelength | 850/1300nm |
| Flame Rating | Riser (OFNR) | Cable Outside Diameter (OD) | 2.0mm(3.0mm Optional) |
| Polarity | A (Tx) to B (Rx) | Cable Type | Tight-Buffered |
| Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength (Long/Short Term) | 90/150N |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Attenuation at 850nm | 3.5dB/km | Attenuation at 1300nm | 1.5dB/km |
| Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -20 to 70°C (-4 to 158℉) |
Features
Build a Stable and Robust Fiber Optic Network
Structural Diagram
Cross-section Diagram
Carrier-grade Cable Ensures Transmission Quality
Color-Coded Cable Jacket for Easy Identification
Orange
Aqua
Lime Green
Yellow
Connector Color Information

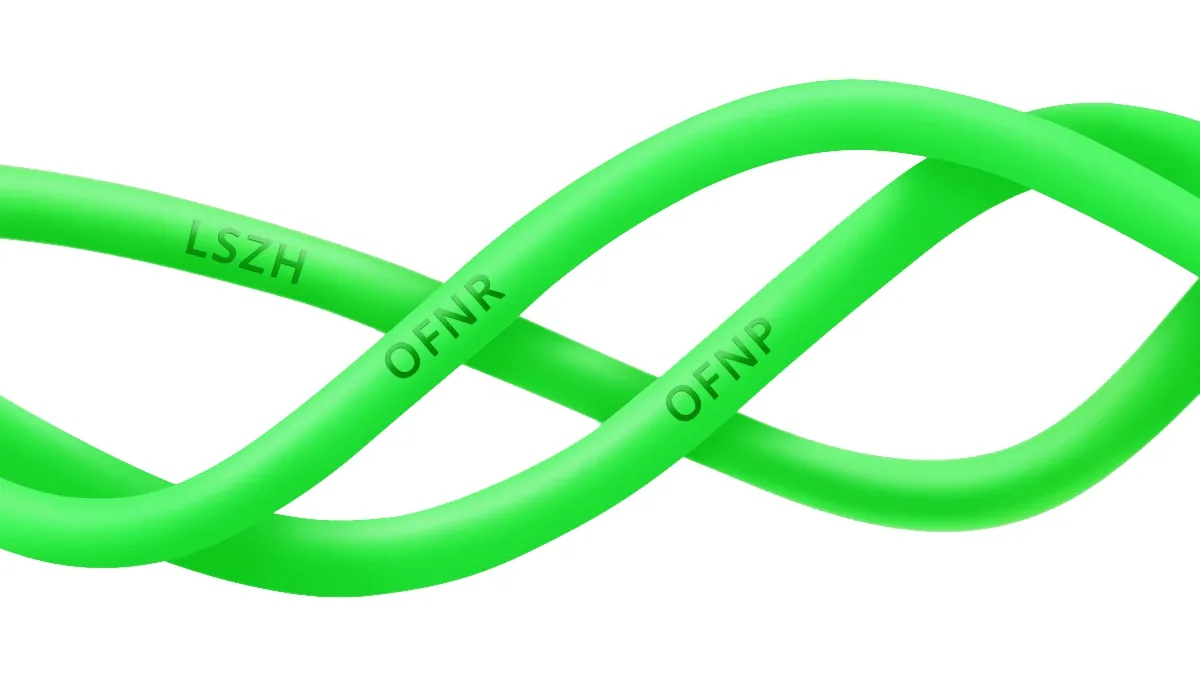

Three Jacket Materials Used in Diverse Cabling Zone
| Plenum (OFNP) Jacket | Riser (OFNR) Jacket | LSZH Jacket | |
| Flammability | Low | Medium | High |
| Toxicity/Corrosive Level | None | High | Low |
| Plenum Areas & Air Ducts |  | / | / |
| Riser Areas | | | / |
| Open Areas | | | / |
| Enclosed Areas & Indoors | | / | |
| Crowded Areas | | / | |
Three Diameters to Meet Different Wiring Needs
3.0mm, 2.0mm and 0.9mm
2.0mm Diameter
0.9mm Diameter
Technical Drawing
Fiber Polarity
A-to-B Fiber Polarity Commonly Used in Fiber Applications

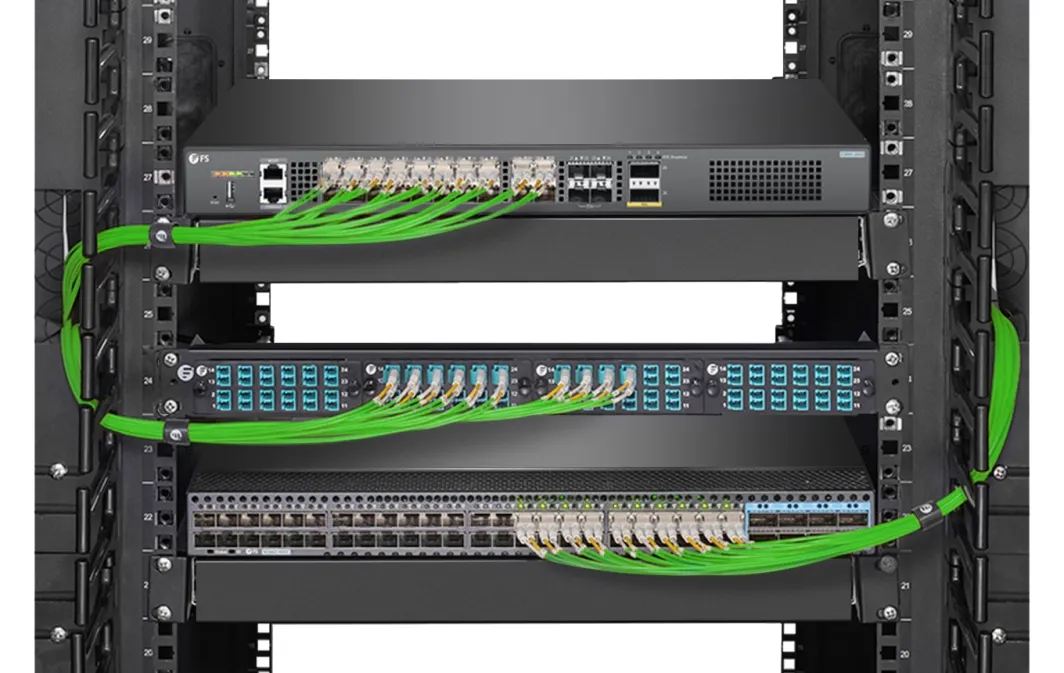

Provide Interconnect and Cross-connect of Application

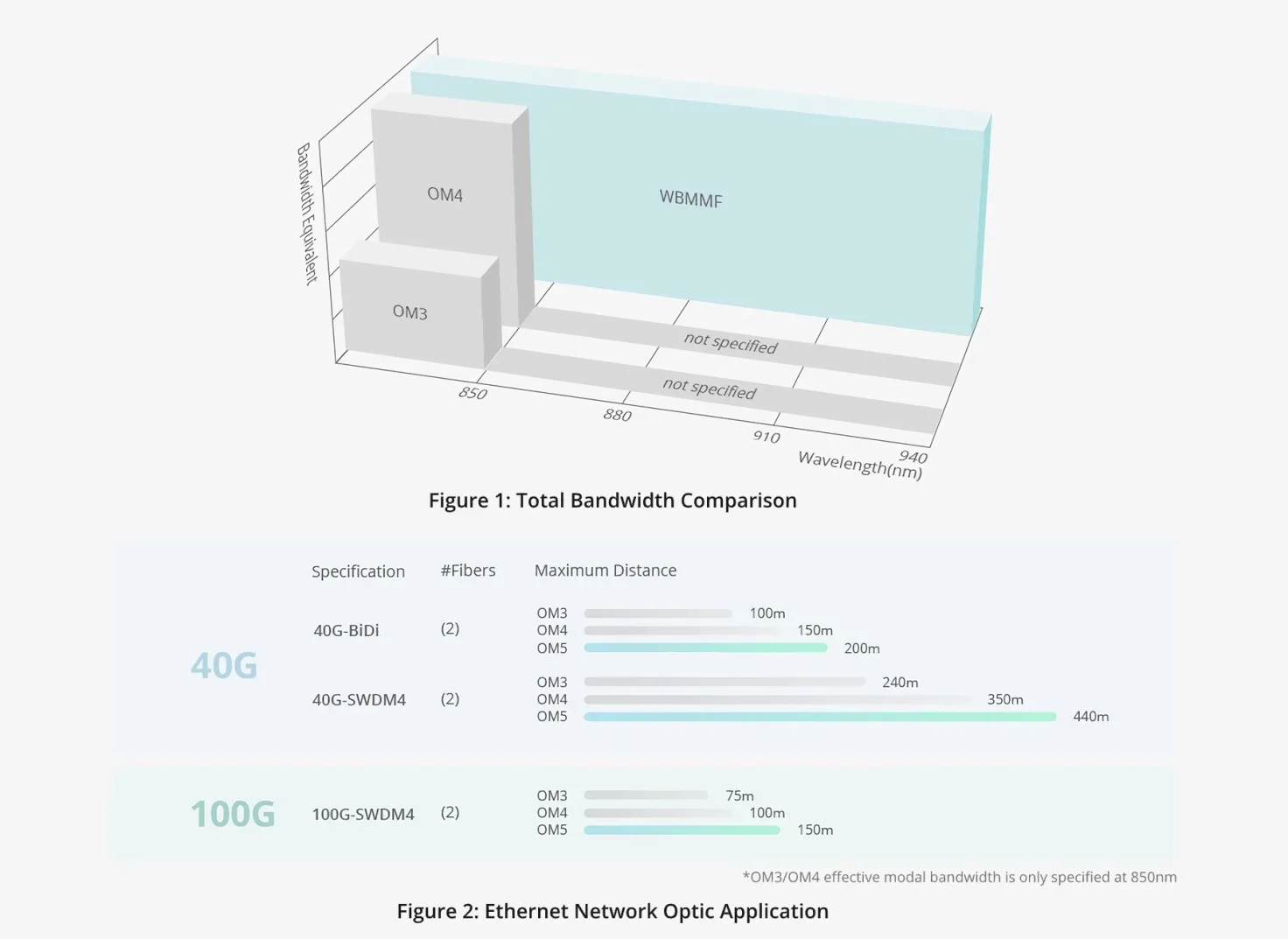

OM5 Fiber - Ready for Next-Generation Wideband Networks
Meet the Various Indoor Installation Needs

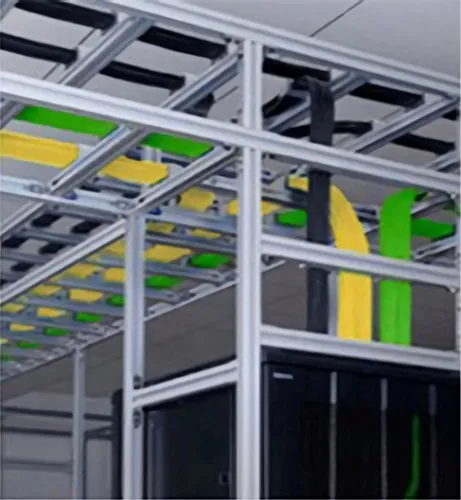

Ceiling Application

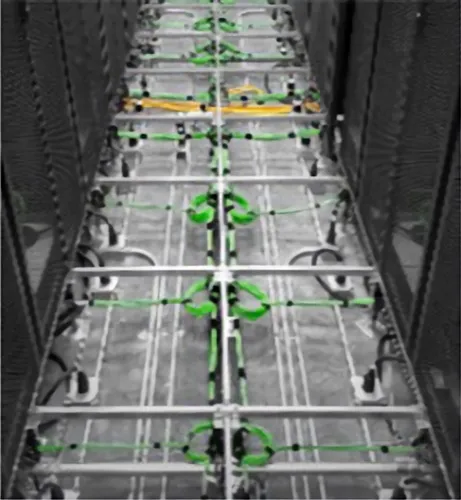

Floor Application
In-cabinet Application
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
