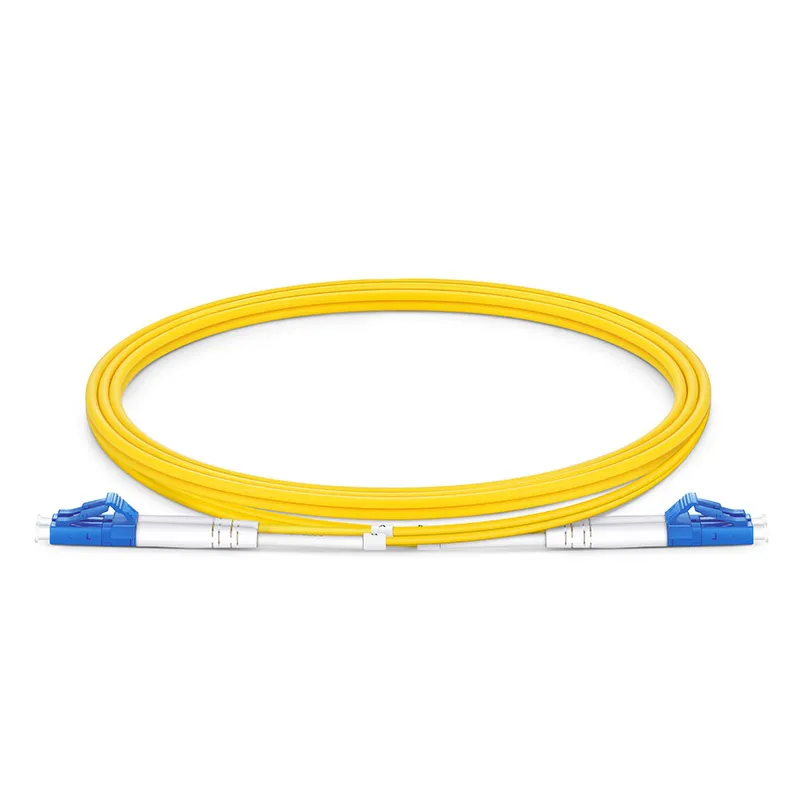

| Part No. | FJ-LCU-LCU-OS2-DX-2.0 |
| Product ID | 010101001 |
| MOQ | 1 Piece |
| Lead Time | 5-7 Working Days according to Quantity |
Product Highlights
G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
Precision Zirconia Ferrule Connectors Ensure Low Loss
Flame-Retardant Riser (OFNR) for Vertical and Floor-to-floor Installations
Color-Coded Cable Jacket for Easy Identification
Duplex Zipcord Construction Reduces Risk of Damage from Crimping
Pre-terminated Cable Allows for Implementing Plug & Play Solutions
Exceptional Performance in a Data Center, Telecommunication Networks, or an Enterprise Setting
See More

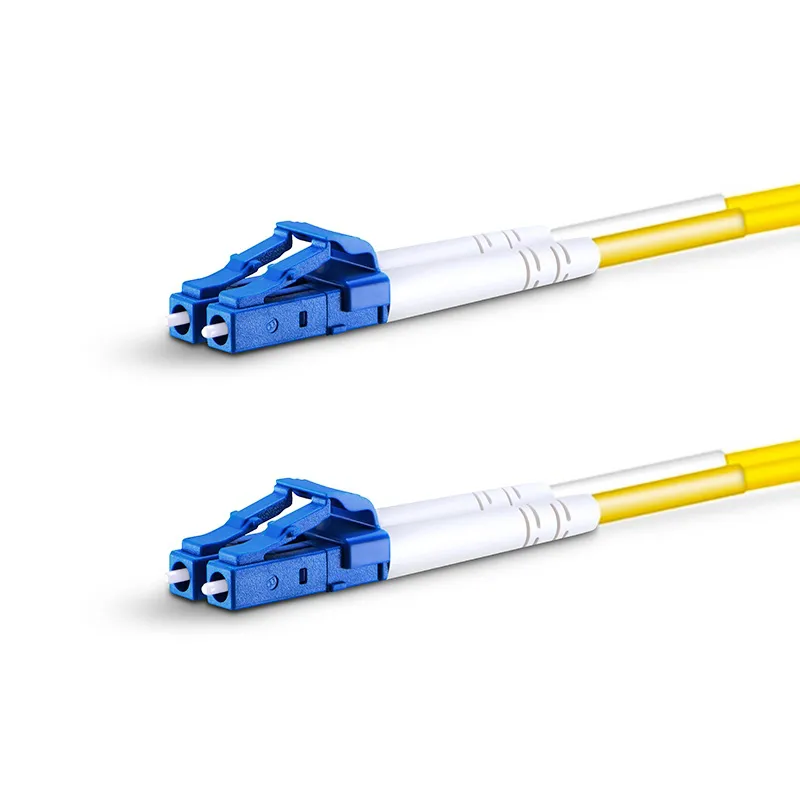

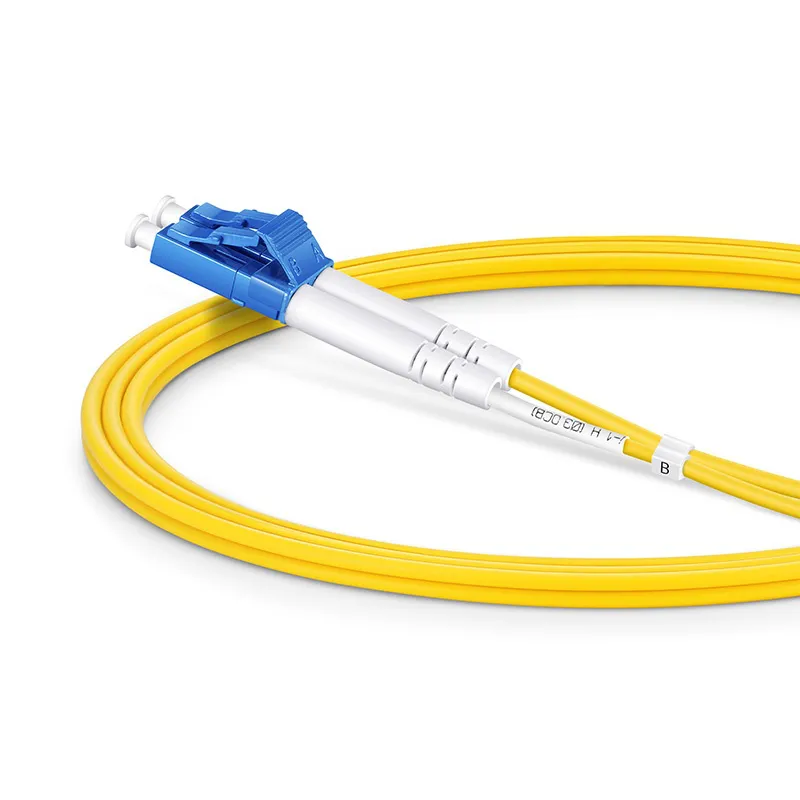

Description
Fiber patch cables provide interconnect and cross-connect of applications over data centers, telecommunication networks, and enterprise environments. Pre-terminated cables allow for the implementation of complete Plug & Play solutions to install even large cabling systems rapidly.
This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It offers low signal attenuation and high bandwidth for long-distance transmission.
The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.
Specifications
| Connector A | LC UPC Duplex | Connector B | LC UPC Duplex |
| Fiber Count | 2 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Flame Rating | Riser (OFNR) | Cable Outside Diameter (OD) | 2.0mm(3.0mm Optional) |
| Polarity | A (Tx) to B (Rx) | Cable Type | Tight-Buffered |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength (Long/Short Term) | 90/150N |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Attenuation at 1310nm | 0.4dB/km | Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -20 to 70°C (-4 to 158℉) |
Features
Build a Stable and Reliable Fiber Optic Network
Bend Insensitive Fiber
Zirconia Ceramic Ferrule
Tight-Buffered Layer

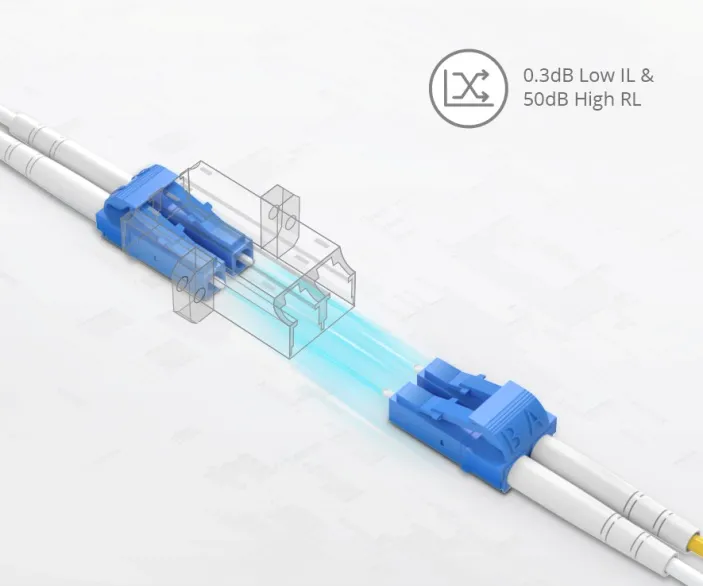

Superior Performance Ensures Network Quality
Easy for Installation in Patching
Yellow
Orange
Aqua
Lime Green

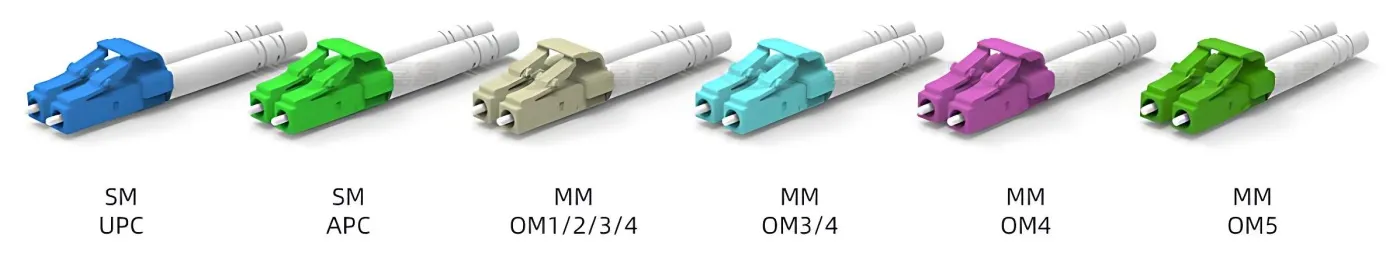

Connector Color Information
Three Jacket Materials Used in Diverse Cabling Zone
| Plenum (OFNP) Jacket | Riser (OFNR) Jacket | LSZH Jacket | |
| Flammability | Low | Medium | High |
| Toxicity/Corrosive Level | None | High | Low |
| Plenum Areas & Air Ducts |  | / | / |
| Riser Areas | | | / |
| Open Areas | | | / |
| Enclosed Areas & Indoors | | / | |
| Crowded Areas | | / | |
Three Diameters to Meet Different Wiring Needs
3.0mm Diameter
2.0mm Diameter
0.9mm Diameter
Two Polish Types for Various Signal Sensitivity Demands
UPC mainly used for TV, telephony and data systems.
APC mainly used for FTTX, PON and other WDM systems.

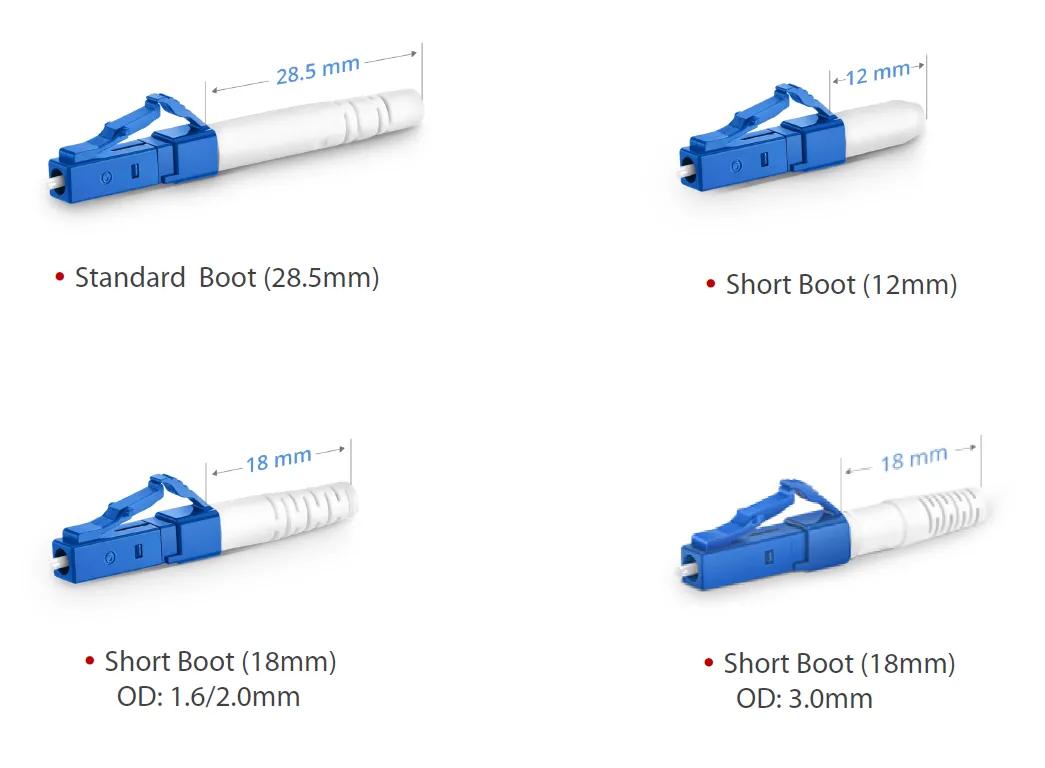

LC Boot Types
Technical Drawing

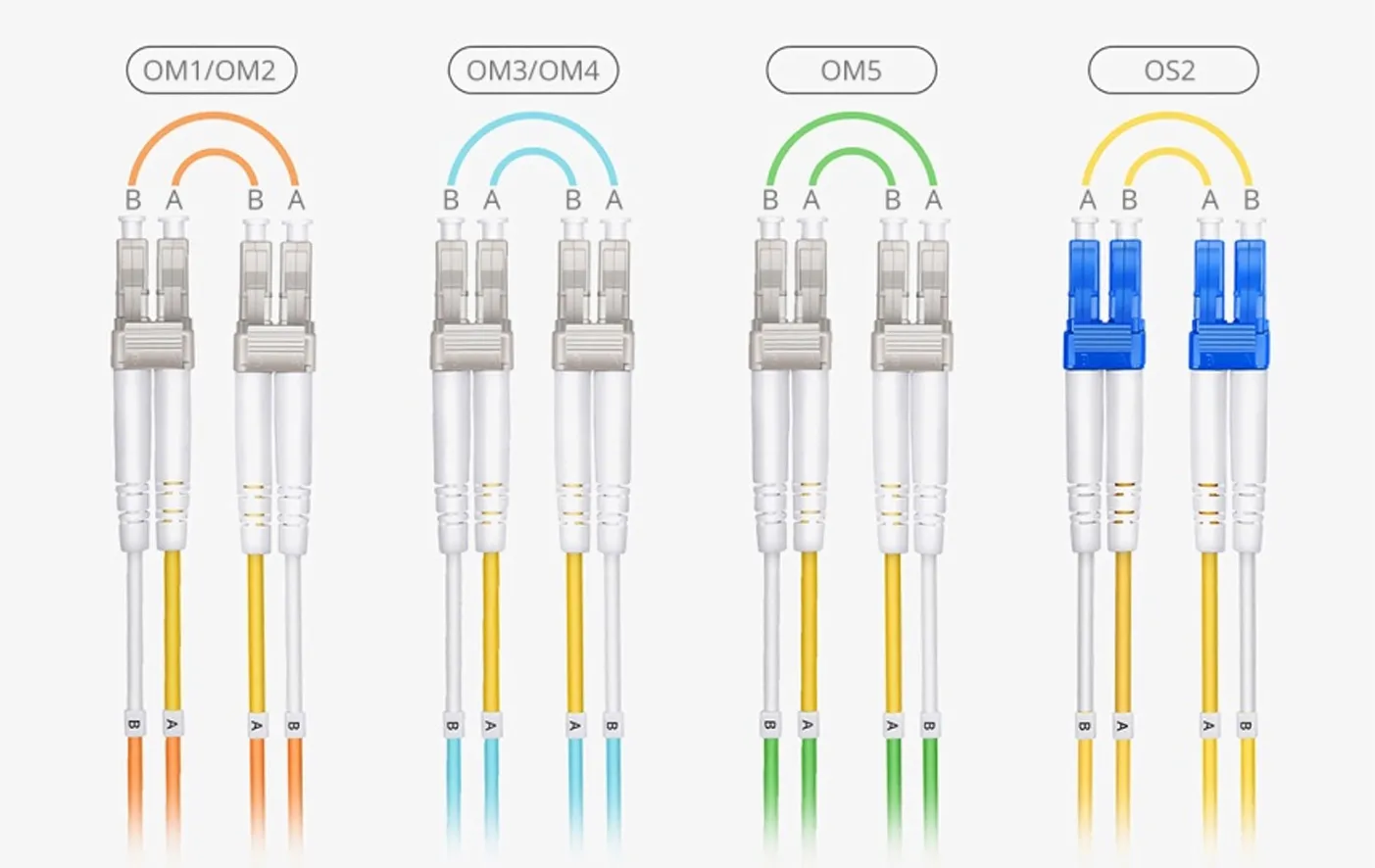

Fiber Polarity
A-to-B Fiher Polarity Commonly Used in Fiber Applications
Meet the Needs of Various Application
Data Center

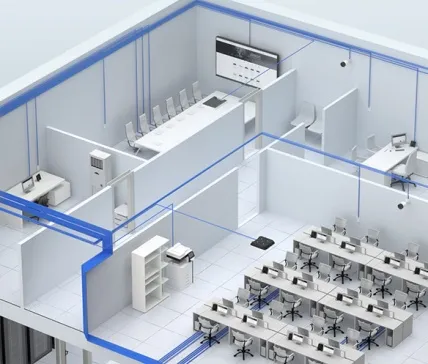

Telecommunication Networks

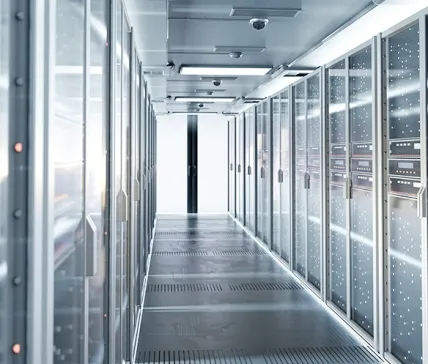

Enterprise Environments
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
