| Part No. | FJ-SCA-SCA-OS2-SX-2.0 |
| Product ID | 010101008 |
| MOQ | 1 Piece |
| Lead Time | 5-7 Working Days according to Quantity |
Product Highlights
G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
Precision Zirconia Ferrule Connectors Ensure Low Loss
Flame-Retardant Riser (OFNR) for Vertical and Floor-to-floor Installations
Color-Coded Cable Jacket for Easy Identification
Ideal for Unidirectional Data Transmission
Pre-terminated Cable Allows for Implementing Plug & Play Solutions
Exceptional Performance in a Data Center, Telecommunication Networks, or an Enterprise Setting
See More
Description
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.
This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.
Specifications
| Connector A | SC APC Simplex | Connector B | SC APC Simplex |
| Fiber Count | 1 Fiber | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| RoHS Compliancy Status | Complaint | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 0.9mm/2.0mm/3.0mm | Flame Rating | Riser (OFNR)/LSZH/ Plenum(OFNP) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 60/100N(Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Attenuation at 1310nm | 0.4dB/km | Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -20 to 70°C (-4 to 158℉) |
Features
Build a Stable and Robust Fiber Optic Network
Structural diagram
Cross-section diagram
Carrier-grade Cable Ensures Transmission Quality
Color-Coded Cable Jacket for Easy Identification
Yellow
Orange
Aqua
Lime Green

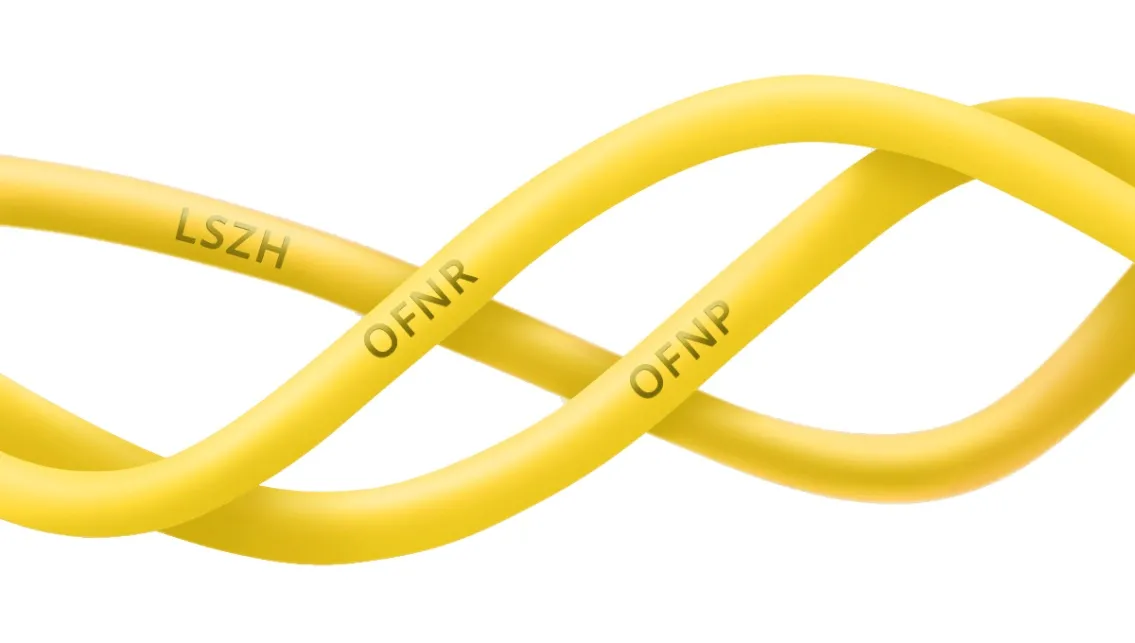

Three Jacket Materials Used in Diverse Cabling Zone
| Plenum (OFNP) Jacket | Riser (OFNR) Jacket | LSZH Jacket | |
| Flammability | Low | Medium | High |
| Toxicity/Corrosive Level | None | High | Low |
| Plenum Areas & Air Ducts |  | / | / |
| Riser Areas | | | / |
| Open Areas | | | / |
| Enclosed Areas & Indoors | | / | |
| Crowded Areas | | / | |
Three Diameters to Meet Different Wiring Needs
3.0mm, 2.0mm and 0.9mm
2.0mm Diameter
0.9mm Diameter
Two Polish Types for Various Signal Sensitivity Demands
UPC mainly used for TV, telephony and data systems.
APC mainly used for FTTX, PON and other WDM systems.

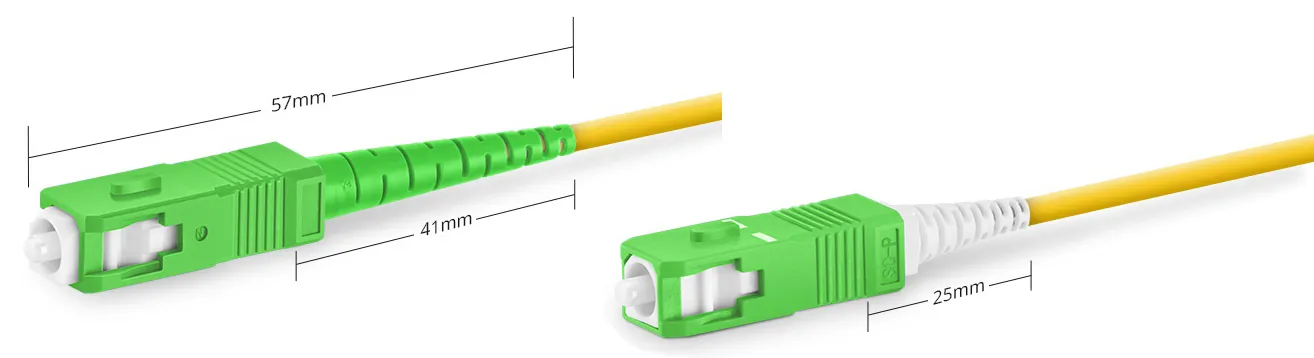

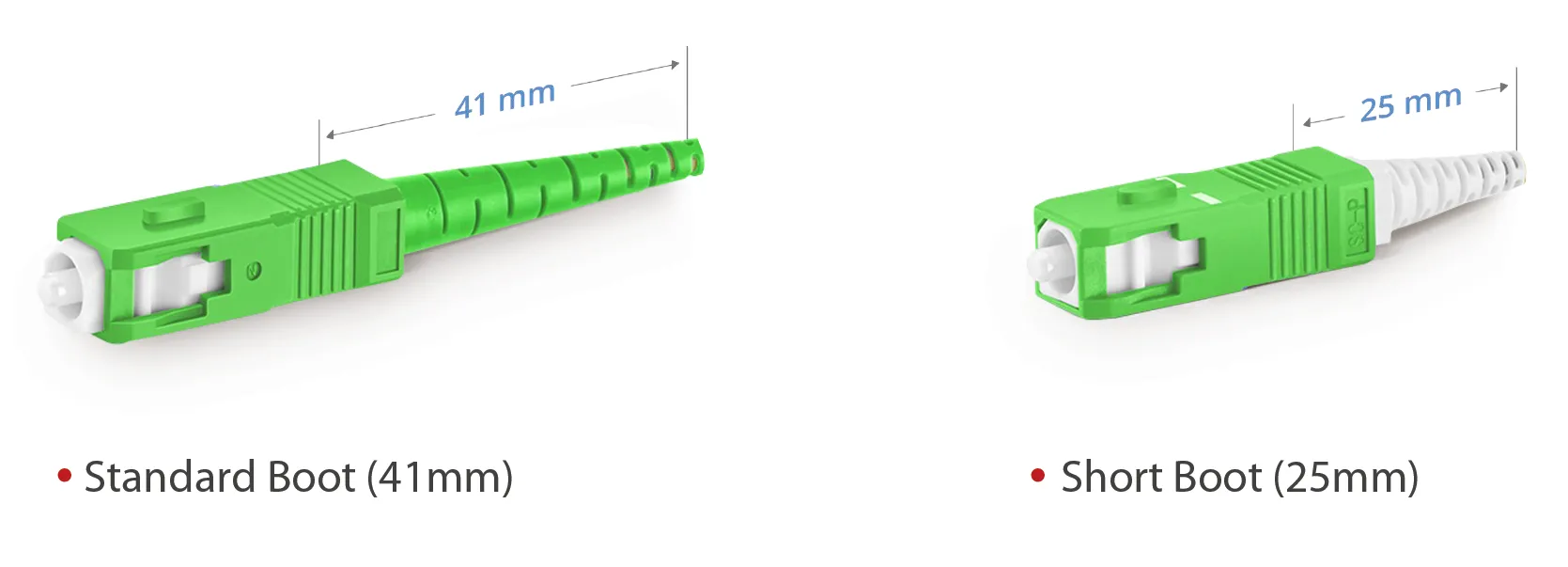

SCAPC Boot Types
Provide Interconnect and Cross-connect of Application
Meet the Various Indoor Installation Needs
Ceiling Application
Floor Application
In-cabinet Application
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
