| Part No. | FA-SCA-SCA-OS2-DX-F |
| Product ID | 020101003 |
| MOQ | 1 Piece |
| Lead Time | 5-7 Working Days according to Quantity |
Product Highlights
≤0.2dB(Typical) Low Insertion Loss
Color Coded for Rapid Fiber Management
Protective Dust Cap Keeps Adapter’s Interior Clean from Dust
Stainless Steel Clips for Tool-less Snap-in Installation
Available in A Variety of Connector Types
Can be Used with M2 Model Screw
See More
Description
A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. FS supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.
Specifications
| Connector Type | SC-SC | Body Style | Duplex |
| Polish Type | APC | Fiber Mode | OS2 9/125μm |
| Insertion Loss | ≤0.2dB | Durability | 1000 times |
| Mounting Type | Full flanged | Alignment Sleeve Material | Ceramic |
| Color | Green | Flammability Rate | UL 94V-0 |
| Package Quantity | 1 Pcs | RoHS Compliancy Status | Compliant |
| Operating Temperature | -40 to 85℃(-40 to 185℉) | Storage Temperature | -10 to 60℃(14 to 140℉) |
Features

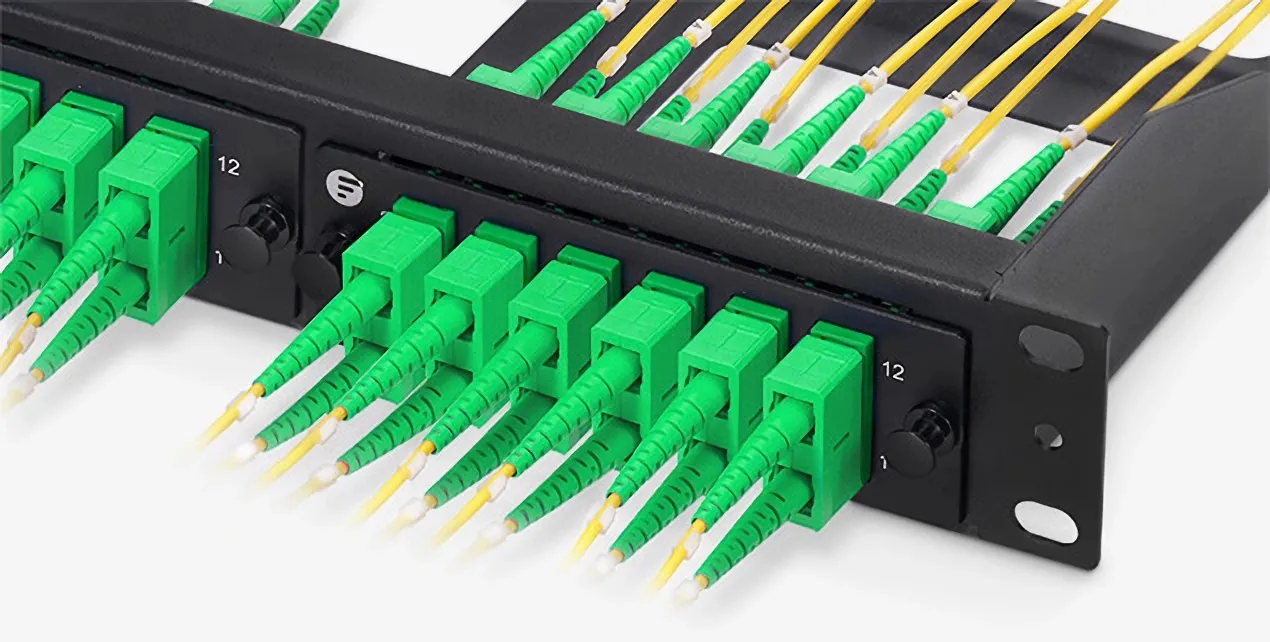

Extending Fiber Connection with Adapters
Stainless Steel Clip
Protective Dust Cap
Zirconia Ceramic Sleeve
Color-coded Adapters Simplify Fiber Management
Custom Products Tailored to Your Needs
Diverse Custom Options
Strict Quality Control
Technical Support
