| Part No. | FLBM-SCU-OS2-DX |
| Product ID | 020402001 |
| MOQ | 1 Piece |
| Lead Time | 5-7 Working Days according to Quantity |
Product Highlights
Low Insertion Loss≤0.3dB, High Return Loss≥50dB
Easy insertion and extraction with push-pull design.
Used in testing SC/UPC interface Products
Designed for Troubleshooting Network Failure Nodes
See More
Description
Fiber Loopback Module is designed to provide a media of return patch for a fiber optic signal. Typically it is used for fiber optic testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem.
Fiber Loopback Module can provide an economical solution for many fiber optic test applications.
Specifications
| Fiber type | 9/125 Single Mode | Fiber connector | SC/UPC |
| Insertion loss | ≤0.3dB | Return loss | ≥50dB |
| Jacket material | PC | Insert-pull test | 500times, IL<0.5dB |
| Operation temperature | -20 to 70°C (-4 to 158°F) | Dimensions (HxWxD) | 46x27.5x12mm |
Features

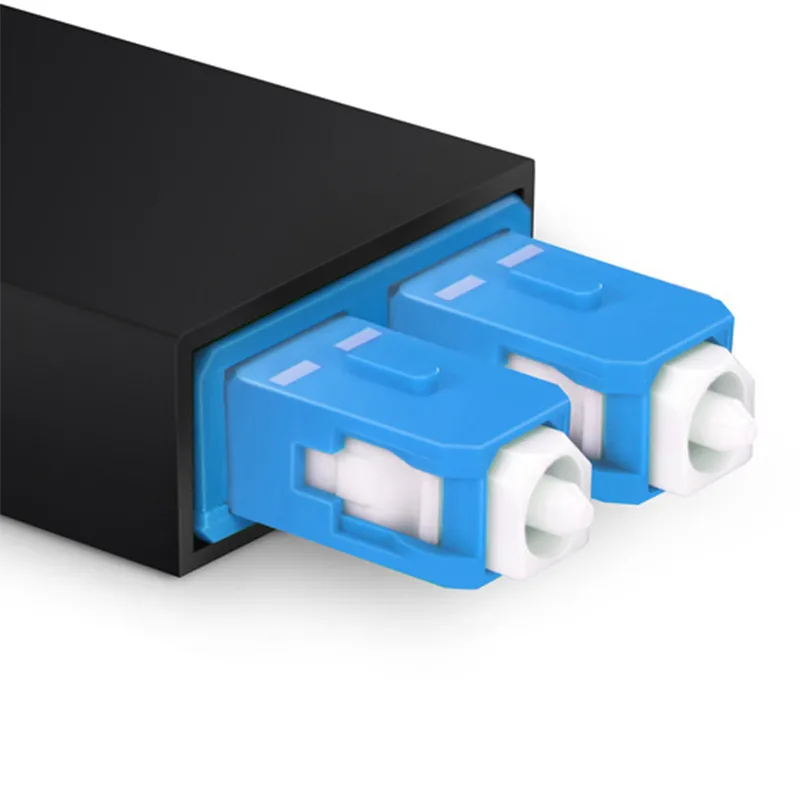

SC Fiber Loopback Module for Troubleshooting Fiber Networks
High Precision Alignment
Protective Dust Cap
Protective Black Enclosure

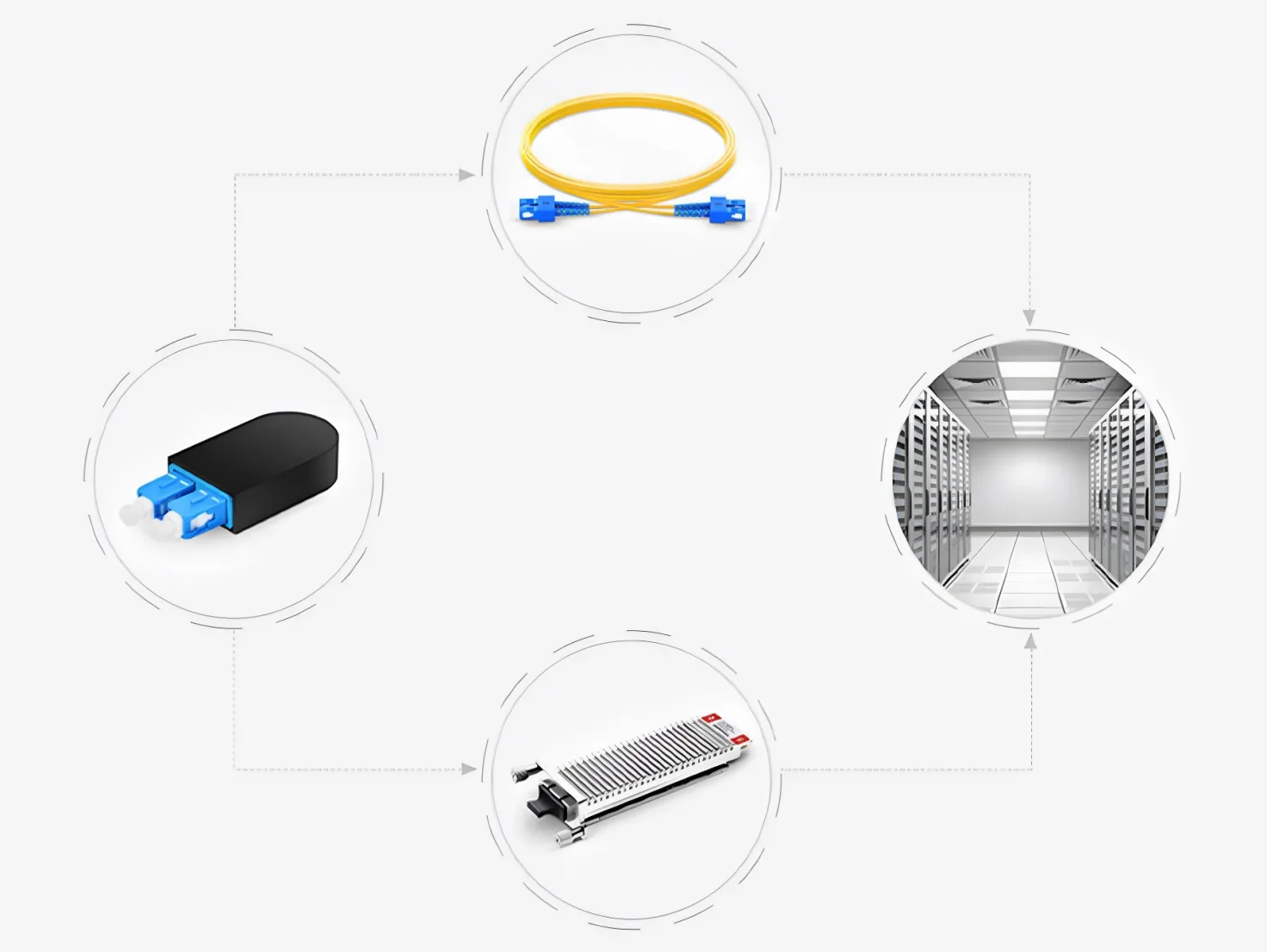

Application in Data Center
